AX-Series Motion Controller Instructions Manual Chapter 2
95

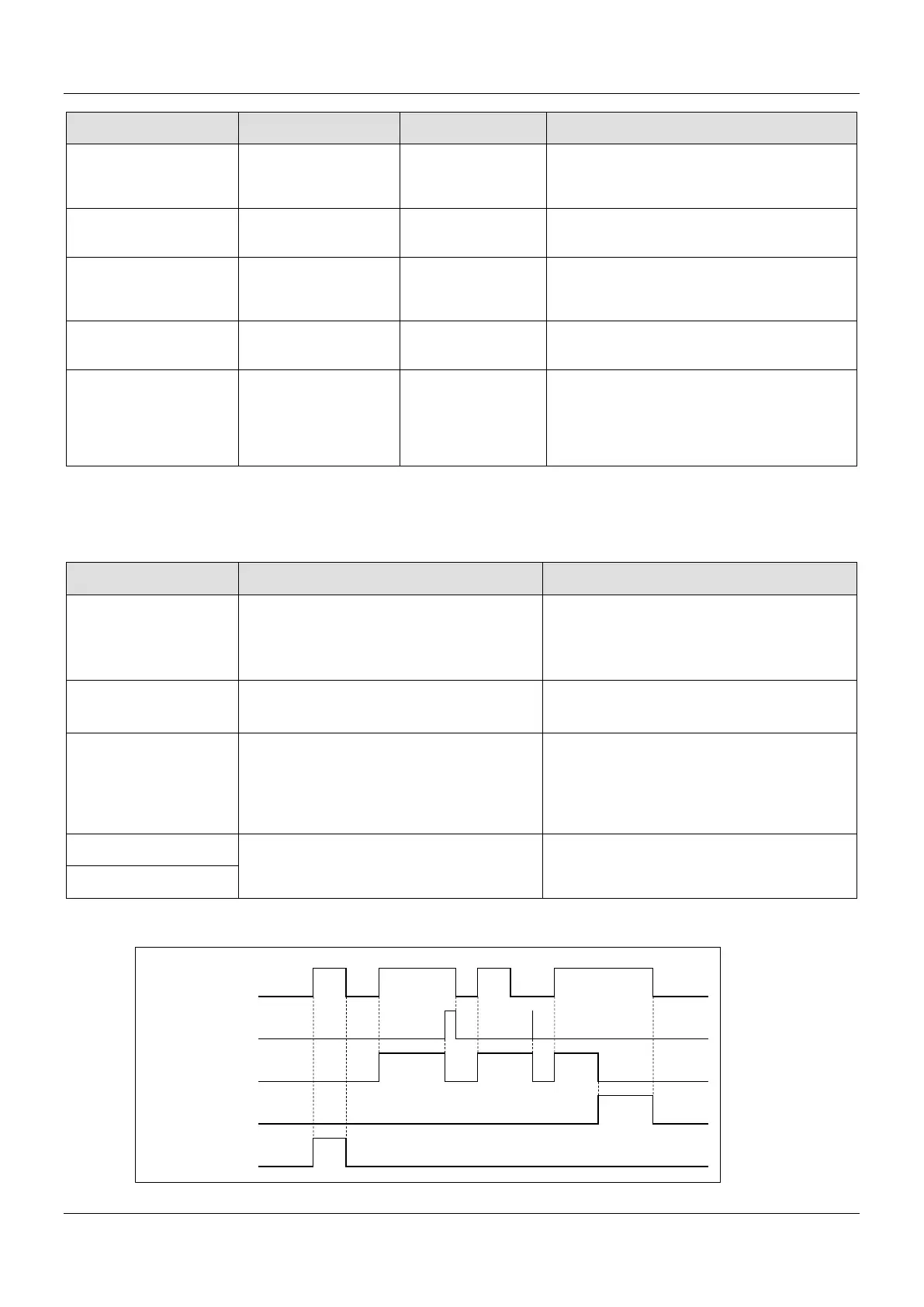

Name Function Data Type Output Range (Default Value)
Done
True when phasing
operation is
completed.
BOOL True/False (False)
Busy
True when the
instruction is run.
BOOL True/False (False)
CommandAborted
True when the
instruction is
interrupted.
BOOL True/False (False)
Error
True when an error
occurs.
BOOL True/False (False)
ErrorID
Record the error code
when an error occurs.
Refer to Appendix for
error code
descriptions.
SMC_ERROR* SMC_ERROR (SMC_NO_ERROR)
＊Note: SMC_ERROR: Enumeration (Enum)
 Output Updating Time
Name
Timing for Shifting to True
Timing for Shifting to False
Done
 When the phasing operation is
completed.
 When Execute changes to False.
 If Execute is False and Done turns to True,
Done will be True for only one scan cycle
and immediately shift to False.
Busy  When the phasing operation is run.
 When Error turns to True.
 When CommandAborted turns to True.
CommandAborted
 When this instruction is aborted by
another instruction with the Buffer Mode
set to Aborting.
 When this instruction is aborted because
of the execution of MC_Stop instruction.
 When Execute changes to False.
 If Execute is False and CommandAborted
turns to True, it will be True for only one
period and immediately shift to False.
Error
 When an error occurs in the execution
conditions or input values for the
instruction.
 When Execute turns from True to False.
(Error Code is cleared)
ErrorID
 Timing Diagram
Execute
Done
Busy
Command Aborted
Error
