AX-Series Motion Controller Instructions Manual Chapter 2

227

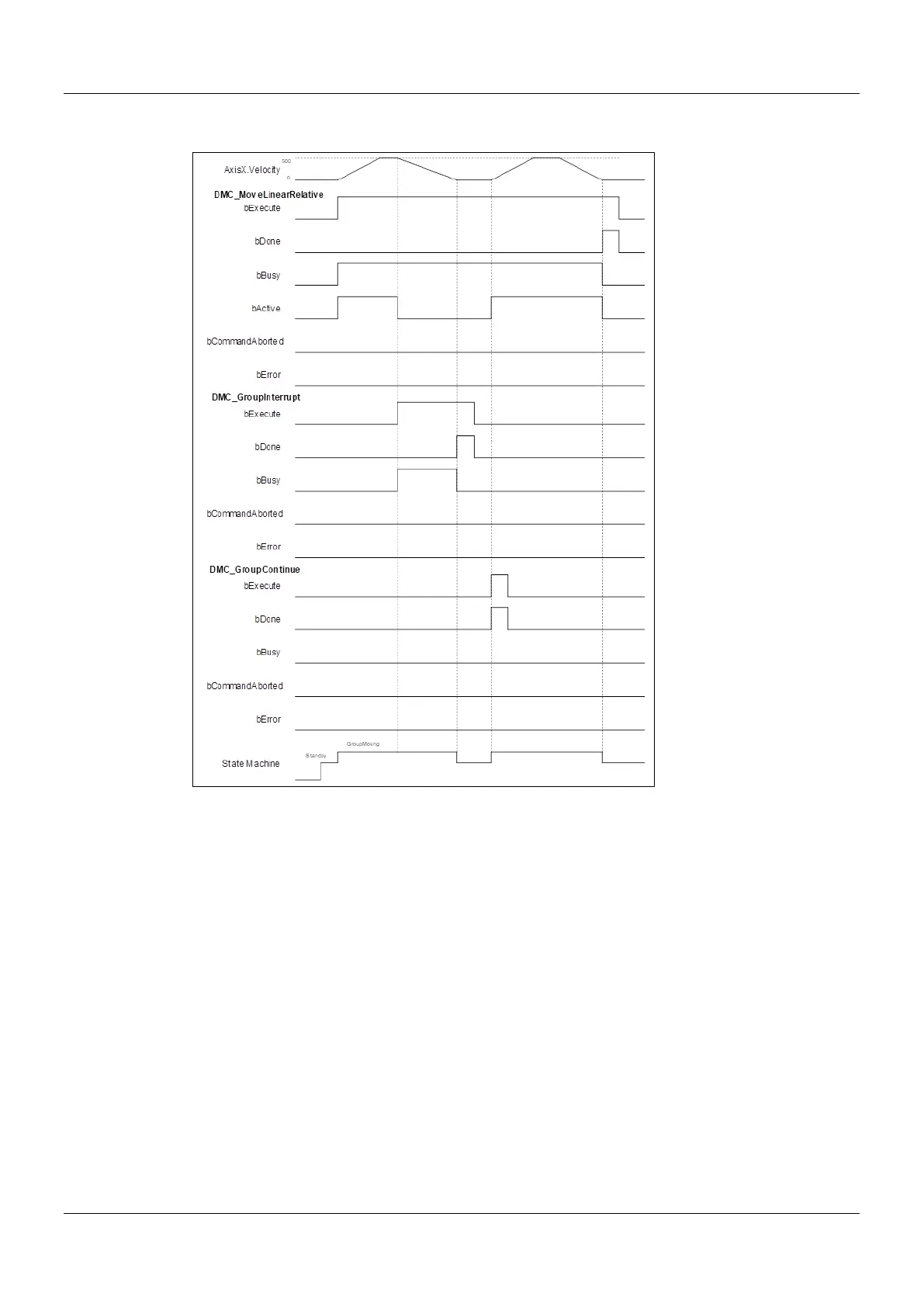

 Timing Diagram

 When bExecute of DMC_MoveLinearRelative changes to True, the axis group starts to run.

 When bExecute of DMC_GroupInterrupt changes to True, the axis group will decelerate until the speed

reaches 0 and stops. The status of DMC_GroupInterrupt will be changed from Busy to Done.

 At this time, bExecute of DMC_GroupContinue changes to True, and the unfinished motion path of previous

DMC_MoveLinearRelative of the axis group will be completed.
