VENUE Profile Guide104
Adjusting Matrix and PQ Mixer Input
Controls
Matrix and PQ Mixer Input Levels
The levels for the first eight input sources (or “sends”) of a Ma-
trix or PQ mixer are controlled by the Output Encoders.
The eight Output encoders control the input levels of the cur-
rently selected Matrix or PQ mixer input sources.
To control mixer input source (“send”) levels on the console:
1 Press the Matrixes switch or the Personal Qs switch in the
Output fader assign section.
2 Press a Select switch for a Matrix or PQ to select that mixer
and view its inputs. Input parameters are shown on the top
row of the Output LCD. Input source levels are controlled by
the encoders, and output levels are controlled by the faders.
3 Press the encoder to turn that mixer input source on or off.
4 Turn the Output encoders 1–8 to set the level for the first
eight input sources assigned to the currently selected Matrix
or PQ mixer.
5 To adjust source inputs 9–12, press the Next Page switch to
bank those sources to Output Encoders 5–8. To return to
sources 1–8, press the Prev Page switch.
Matrix and PQ Mixer Input Pan
The Matrix and PQ mixer input pan controls adjust the pan-
ning of each mixer input across the stereo outputs of either a
linked stereo Matrix mixer or PQ mixer (PQ mixers are always
stereo).
To control Matrix send pan:
1 Press the Matrixes switch in the Output fader assign section.
2 Press an Output channel Select switch to select a Matrix.
3 Press the Pan switch located below the Prev Page and Next
Page switches.
4 Adjust the Output Encoder 1–8 to adjust pan on Matrix in-
puts 1–8. To access inputs 9–12 for the current mixer, press the
Next Page switch.
Resetting Matrix and PQ Mixer Input
Controls
You can reset level, pan and stereo link settings for any Matrix
or PQ mixer. Input source assignments persist.
To reset a Matrix or PQ mixer parameter to its default value:
1 Select one or more Matrix or PQ mixers you want to change.
2 Right-click the encoder on-screen and choose Reset.
To reset all Matrix or PQ mixer parameters to their default
values:
1 Select one or more Matrix or PQ mixers you want to change.
2 Click the pop-up menu at the bottom of the mixer area and
choose Reset Mix.
Clearing Matrix and PQ Mixer Settings
You can clear mixer input assignments to quickly set all the
input sources to None.
To clear Matrix or PQ input assignments:
1 Select one or more Matrix or PQ mixers you want to clear.
2 Click the pop-up menu at the bottom of the mixer area and
choose Clear Mix Sources.
Copying Matrix and PQ Mixer Input Settings
You can copy mixer settings from one Matrix or PQ mixer to
another mixer of the same type. This lets you quickly dupli-
cate monitor mixes or other signal feeds.
To copy settings between mixers:
1 Select the Matrix or PQ mixer that you want to be the des-
tination of the copied settings so that it is displayed on-screen.
2 Click the pop-up menu at the bottom of the mixer area,
choose Replace With Mix and Mix Sources From.
3 Choose the Mtx (Matrix mixer) or PQ from the sub-menu
whose settings you want to copy to the current mixer.

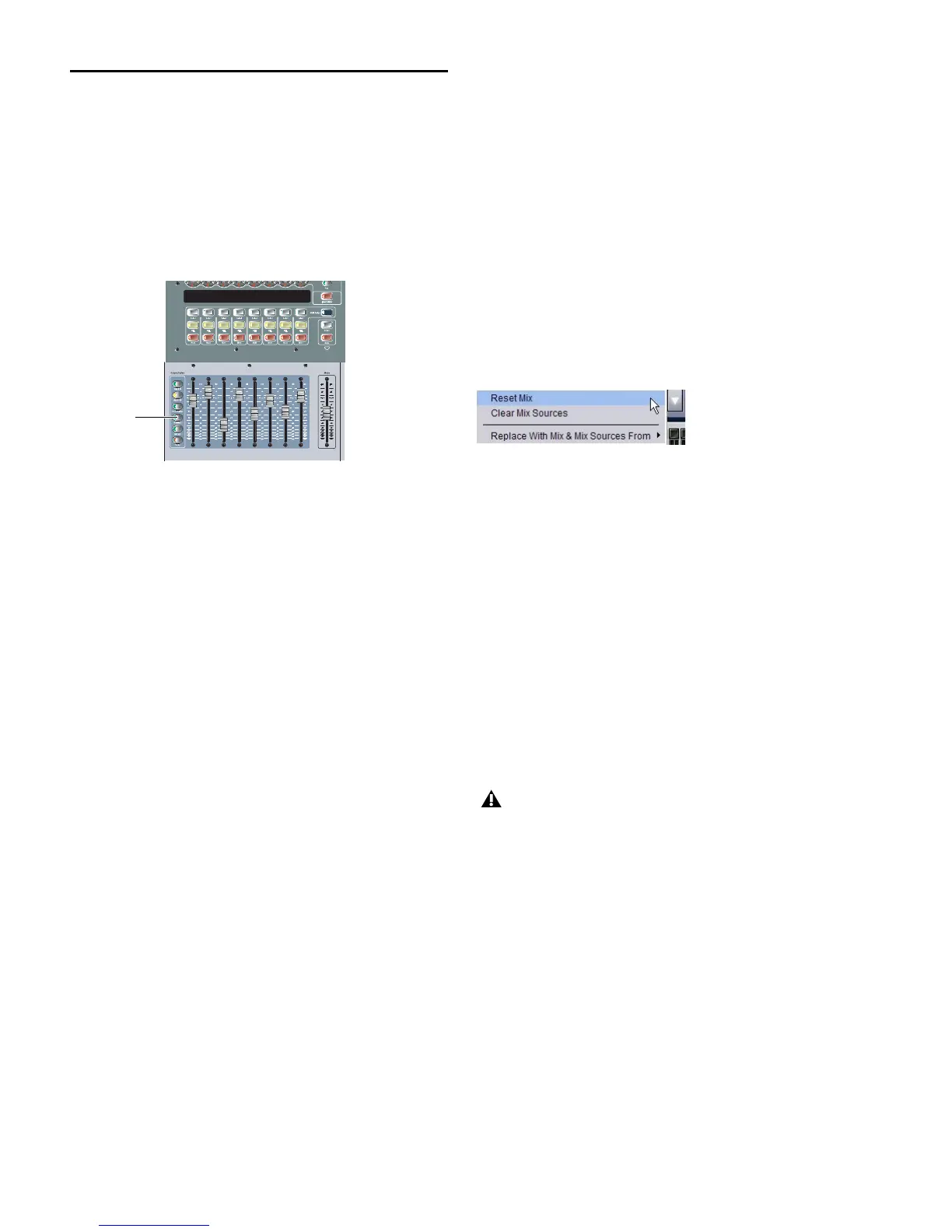

Banking Matrix mixers to the Output faders
Resetting a mix
Copying mixer settings overwrites all the settings on the
destination mixer.
To Next Page
