Chapter 1: Introduction to VENUE Profile 3
Chapter 1: Introduction to VENUE Profile
Welcome to VENUE™ Profile, part of Digidesign’s modular VENUE live sound environment. VENUE Profile systems offer an in-
tuitive console layout, a flexible I/O scheme, powerful digital processing, and expansion options for integrated Pro Tools record-
ing and artist-controlled monitor mixing.
VENUE Profile Systems and Features
The VENUE Profile console can be used with one Mix Rack, or with FOH Rack and Stage Rack units.
Profile Console Control Features
• 24 bankable input channel strips, each with a touch-sen-
sitive fader, one multi-purpose assignable rotary encoder,
solo, mute and select controls
• Built-In High-Pass Filter, Dynamics and EQ processors on
each input channel strip
• Level meters on each input channel strip
• Assignable Channel section with dedicated Bus Assign,
Aux Send, Direct Output, EQ and Dynamics controls.
• 8 multi-purpose Output faders strips, each with a
touch-sensitive fader, one multi-purpose encoder, solo,
mute and select controls
•1 Mains fader
• Up to 24 31-band Graphic EQs available for Outputs
• Main Busses configurable as Left–Center–Right or
Left–Right+Mono
Console I/O
• Talkback mic input, with gain and phantom power
• Headphone output
• USB inputs for keyboard, mouse/trackball, iLok USB
Smart Keys, and USB storage devices
• VGA monitor output for software screen display
• GPI ports (DB-25) providing 8 GPI inputs and 8 GPI out-
puts

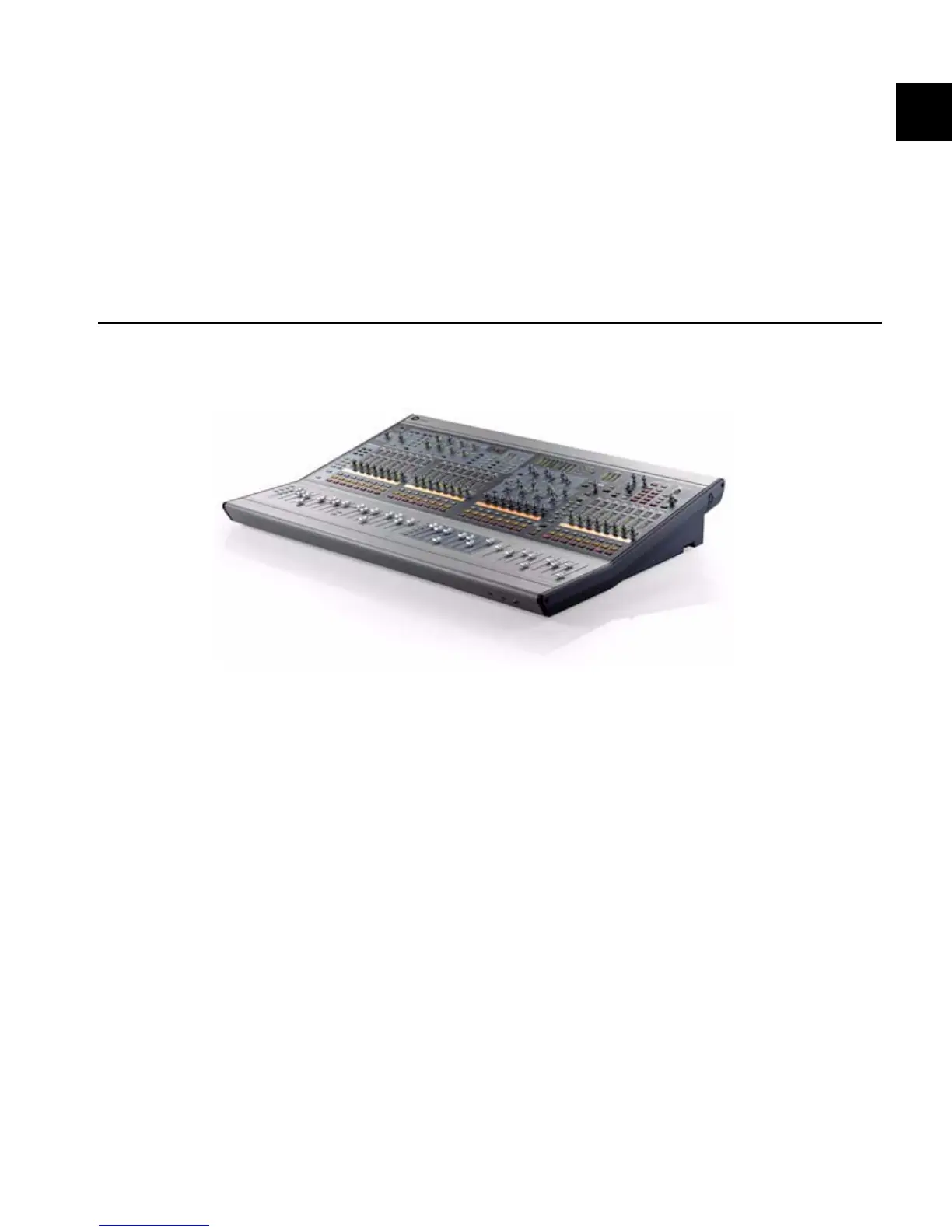

Figure 1. VENUE Profile console
