VENUE Profile Guide240
Back Panel
Power Switches
The Power switches apply power to the console using their
corresponding AC connectors.
Power Connectors
Two male, 3-pin IEC power sockets with cable retaining clips
are provided, one for each of the internal power supplies. Two
North American standard IEC power cables are provided with
each Profile console.
FOH Link
FOH Link connects Profile to the Mix Rack or FOH Rack. One
FOH Link cable is included with each FOH Rack.
VGA
A single, female VGA connector is provided for driving a com-
patible video display (not included).
CAN Bus
This XLR3-M connector is not functional.
Footswitches
Two female 1/4-inch TS footswitch jacks are provided for
switch input. Footswitches can be normally open or normally
closed, latching or momentary. Functions are assigned to
these jacks on-screen in the Options > Events page.
USB Port
A single USB 1.1 port is provided on the back panel for inter-
facing with iLoks, keyboards, pointing devices or key disks.
Console Lights
These two XLR3-F jacks connect to the included console
lights.
GPI (General Purpose Interface)
GPI Input Specifications
A 25-pin, male D-Sub connector provides a total of 8 General
Purpose Interface (GPI) Inputs.
Inputs are logic inputs with pull-ups. They may be driven by
logic outputs or contact closure to ground.
Input signal range is 0 to 5.5V. The inputs are ESD protected.
Input signaling uses standard TTL logic levels: 0.8V or less
for a logic low. 2.0V or greater for a logic high.
Inputs are compatible with 5V TTL (e.g. 74LS series), 5V
CMOS (e.g. 74HC series), 3.3V CMOS (e.g. 74LVC series)
Inputs provide an internal 5K ohm pull-up to +5V.
All Inputs are referenced to the same internal ground,
which is connected to AC safety ground.

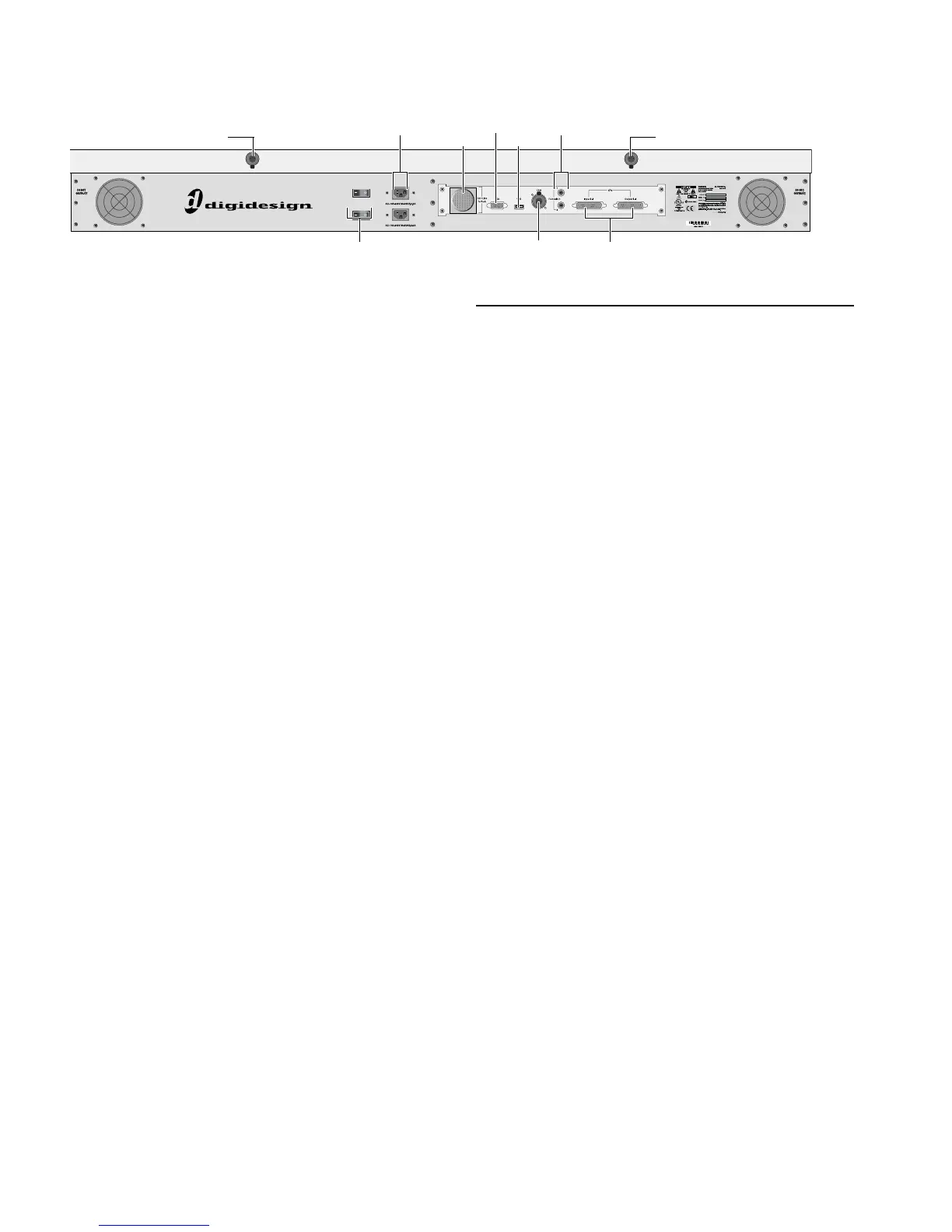

Figure 21. D-Show Profile back panel
FOH Link
VGA
Footswitch 1 and 2
GPI
Power Switches (2)
CAN
USB
Console Light
AC (2)
Console Light
