Routing the Oscillator
The output of the internal oscillator can be routed to Input
Channels, FX Returns, or any of the output busses. The Oscil-
lator provides selectable signal type, frequency (for Variable
Sine) and signal level, as well as a master on/off switch.
Configuring the Oscillator and Setting Level
To activate and set the level for the oscillator:
1 Go to the Options > Misc page.
2 As a precaution, click and drag the on-screen Level encoder
down to set Oscillator level to off before you proceed.
3 In the Oscillator section, click the Signal pop-up and select
from the following signal types:
• 100 Hz Sine
•1kHz Sine
•10kHz Sine
• Variable Sine
• Pink Noise
•White Noise
4 If you select Variable Sine, you can set the sine wave fre-
quency with the on-screen frequency control (directly to the
right of the Signal pop-up).
5 Click the on-screen In button in the Oscillator section.
6 Set oscillator level by slowly raising the on-screen Level en-
coder.
To assign the Oscillator signal to an output bus:
1 In the Options > Misc page, click the Route button in the Os-
cillator section.
2 Do either of the following:
• If you had already selected the desired output, click to
confirm the currently displayed Route To mode (in the
lower left corner of the screen).
– or –
• Go to the Outputs page and click to select an output (it
flashes briefly).
3 In the confirmation dialog that appears, click Route to con-
firm your assignment or click Cancel to cancel without chang-
ing the current routing.
Talkback, 2-Track and Oscillator States When
Loading Shows
When you load a Show file, Talkback, 2-Track and Oscillator
controls are set to off (deactivated), regardless of their state
when the Show was last saved.

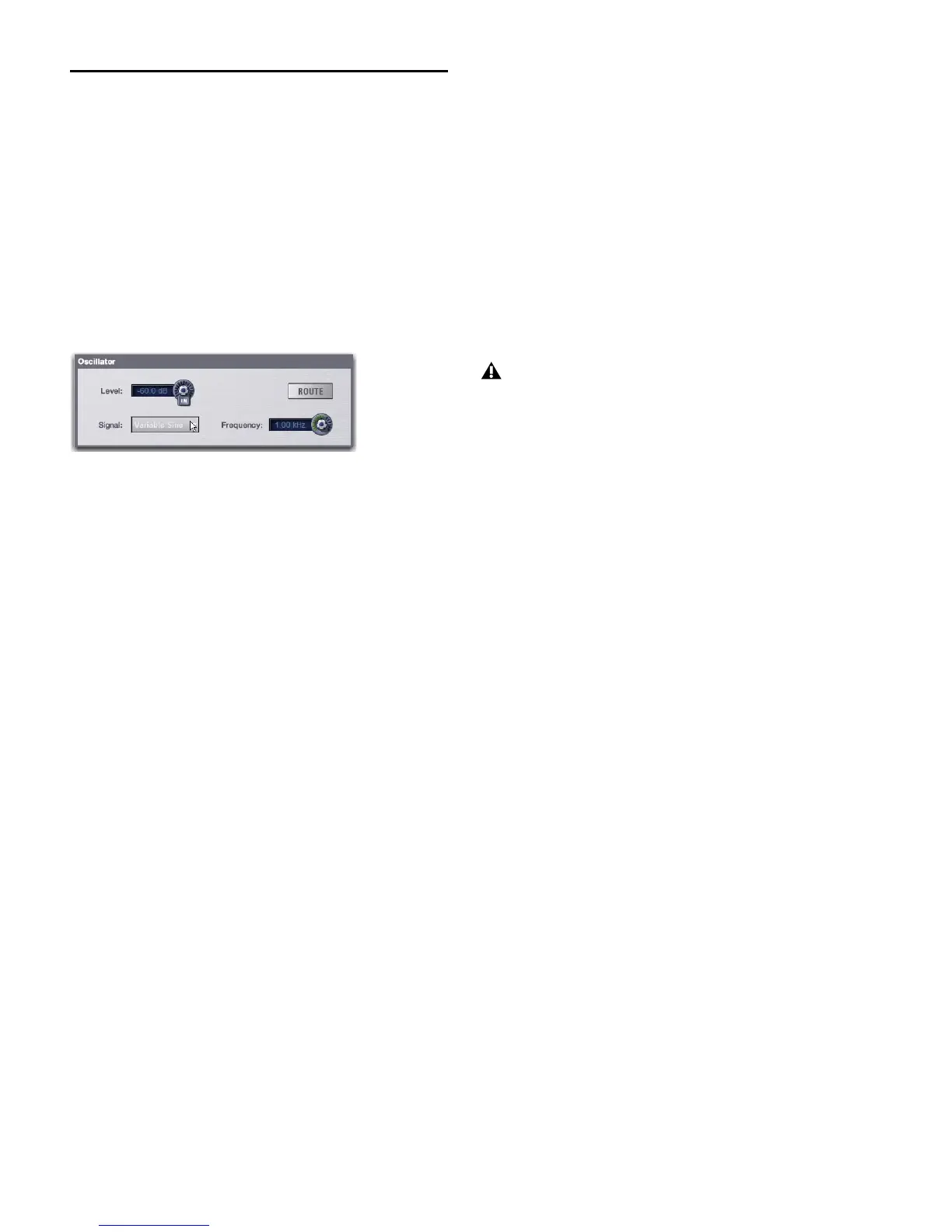

Oscillator controls in the Options > Misc page
Signals are routed to output busses post-mute and post
fader.
