Opening the breathing system
– Weekly

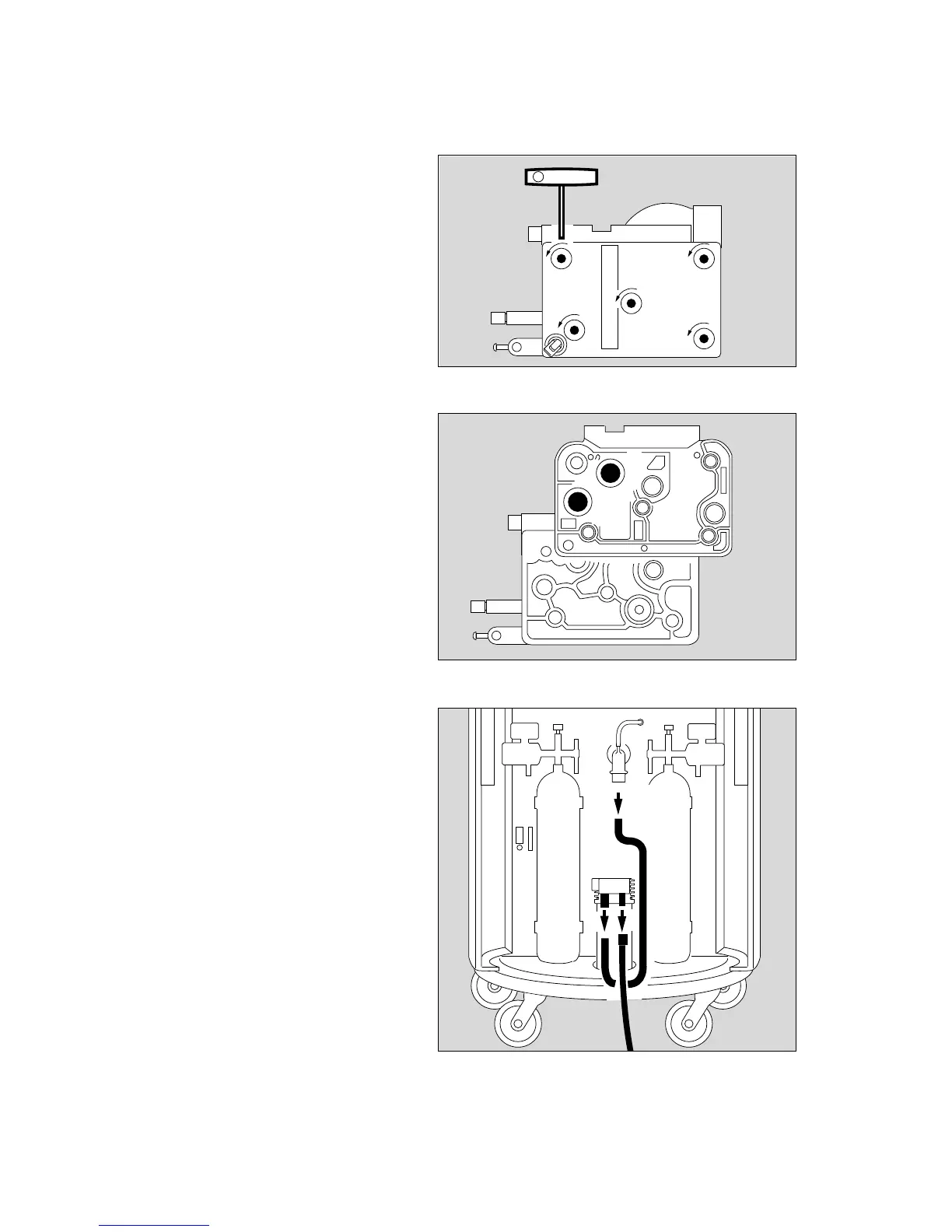

1 Loosen the five sealing screws a quarter-turn with the
key supplied.
● Remove the cover.
2 Remove the two valve discs.
● Lift off the metal valve plate.
● Keep the valve discs in a cassette to protect them
against damage and prepare them for disinfection
and cleaning in a washing machine.
● Prepare the housing parts for disinfection and
cleaning in a washing machine.
Dismantle the anaesthetic gas scavenging system
AGS
3 Remove the scavenging hose.
4 Remove the transfer hose.
5 Remove the anaesthetic gas scavenging system.
● Prepare the individual parts for disinfection and
cleaning in a washing machine.
11
11
1
100
Care
Dismantling components
2
2
5
4
4
3
