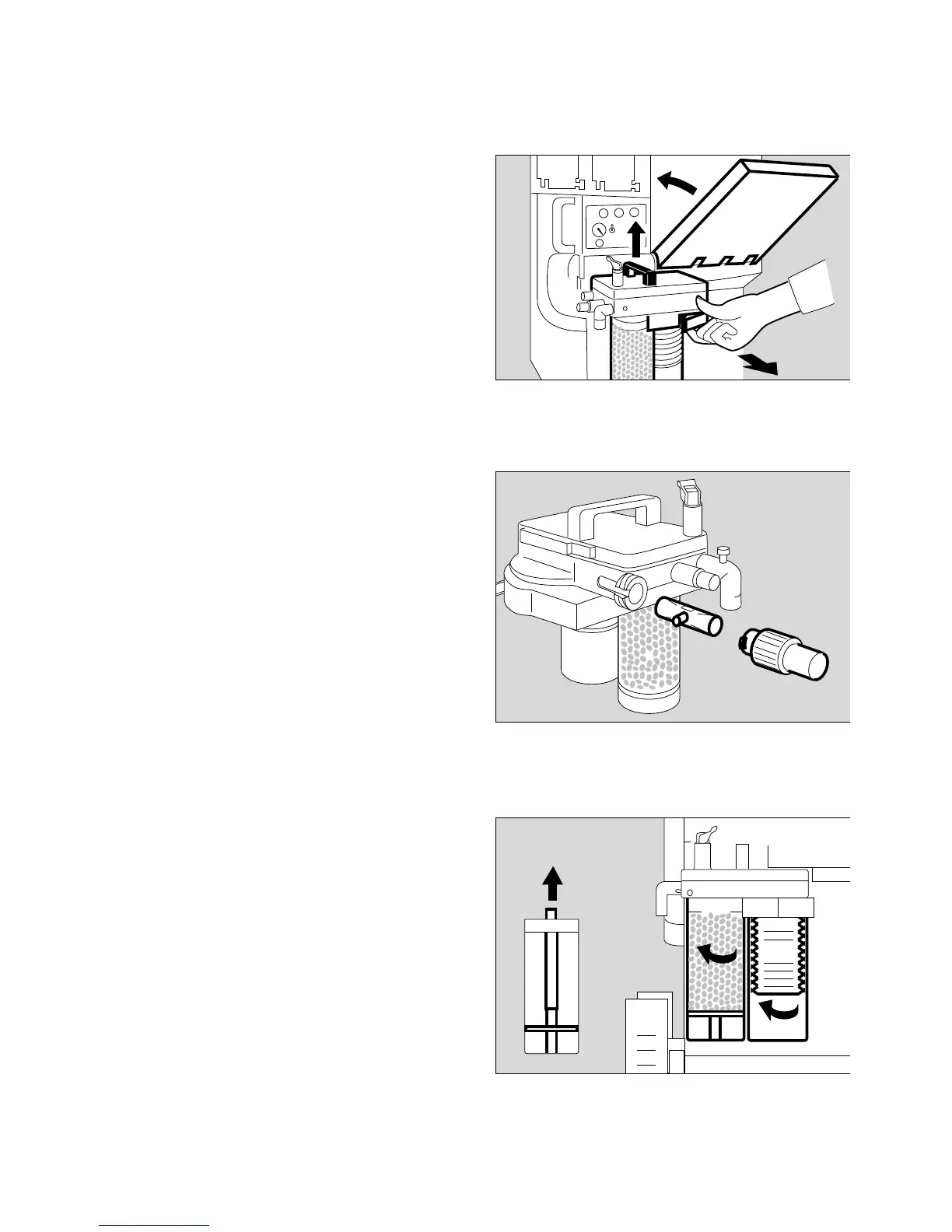

Dismantling the breathing system
7 Fold up the writing top.
8 Pull the catch and at the same time pull out the slot-in
module.
9 Hold breathing system by the handle and pull
upwards to remove.
Removing the flow sensor
1 Unscrew the expiration port.
2 Remove the flow sensor.
The flow sensor cannot be disinfected / cleaned in a
washing machine, nor can it be sterilized in high-
temperature steam.
● The flow sensor must be disinfected in 70 % ethanol
solution for approx. 1 hour.
Leave the sensor to dry in air for at least 30 minutes,
otherwise the remaining alcohol can damage the
sensor when calibrated.
● The flow sensor can be reused as long as it can be
calibrated successfully.
Removing the absorber and bellows
3 Turn the absorber counterclockwise and pull it
downwards.
● Empty the soda lime; it can be disposed of with
ordinary domestic waste.
4 Remove the insert from the absorber.
5 Turn the container of the bellows counterclockwise
and pull it downwards.
6 Remove the bellows.
● Prepare the absorber, container of the bellows and
the bellows for disinfection and cleaning in a washing
machine.
99
Care
Dismantling components
4
MAX
3
6
5
1
2
7
8
9
"Only for internal use by Draeger. Not applicable as Instructions for Use!"
