Dräger Julian - Airway Temperature Measurement (Optional)

Airway temperature measurement (optional)
Parts required:
– Temperature sensor 84 05 371
– Y-piece with connection
for temperature sensor M 30 543
– T-piece 86 00 224
– Filter 86 00 225

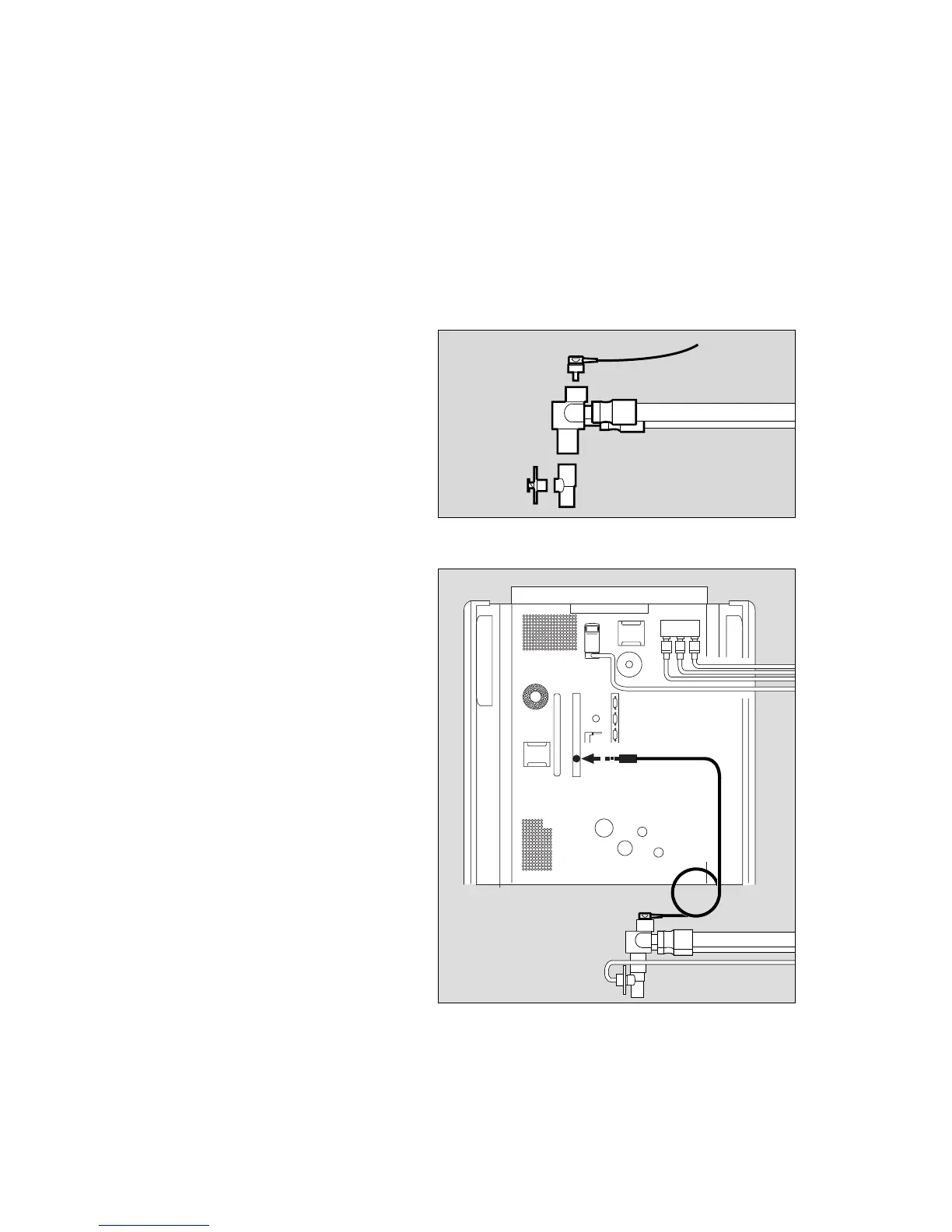

1 Connect Y-piece to respiratory hoses.
2 Insert T-piece into Y-piece.
3 Insert filter into T-piece.
4 Insert temperature sensor into Y-piece.
5 Connect temperature sensor plug to »Temp.« socket
at the back of the workstation.
● The airway temperature is displayed in the data
section of the screen:
AW temp. XX °C
The upper alarm limit is fixed. If the airway temperature
exceeds 40°C, the »AW Temp > !!!« alarm will be
activated.
80
Monitoring
Airway temperature measurement
4
3
2
1
5
