PCV ventilation mode
PCV = Pressure Controlled Ventilation
In pressure controlled ventilation mode, the applied tidal
volume depends on the ventilation parameters Pmax,
insp. Flow, insp. Time, PEEP and the lung compliance.
Changes in ventilation parameters or lung compliance
influence the tidal volume and the MV minute volume
must therefore be monitored constantly.
Presetting ventilation parameters for PCV

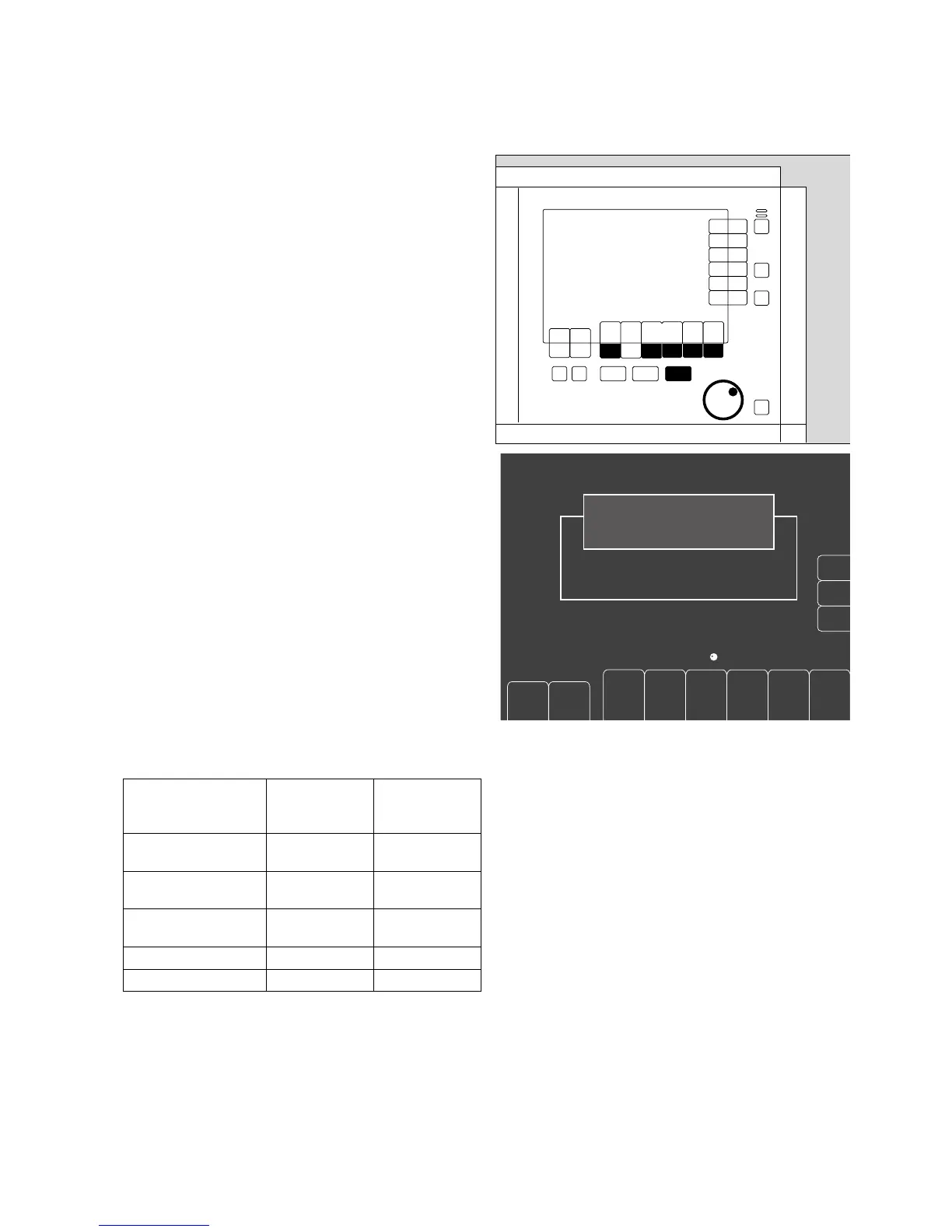

1 Press »PCV« its LED flashes.
● The five ventilation parameters for PCV appear on the
screen with the default settings.
2 Press the softkey of the relevant ventilation parameter.
3 Set and confirm the ventilation parameter with the
rotary knob.
Display (example):
Adjustment ranges and default settings on delivery
When ventilating infants weighing less than 20 kg:
● Use the paediatric hose set;
see page 49 "Ventilating children".
–––––––––––
* The default settings can be set specifically for each hospital,
see page 82.
** Can be set by DrägerService.
43
Operation
Selecting the ventilation mode
PCV
1
Julian
2
1
3
Ventilation parameter Adjustment
range
Default setting
on delivery*
Pressure limit
Pmax [mbar]
(PEEP+1)
to 70
15
Frequency Freq.
[1/min]
6 to 60 12
Insp./Exp. ratio
[TI : TE]
2: 1, 1: 1, 1: 2,
1: 3, 1: 4
1 : 2
Insp. flow [L/min] 5 to 50 (75**) 30
PEEP [mbar] 0 to 20 0
Julian
SW version 2.0
01. Nov. 98
Standby
4.00
30
12
1:2
30 0
15
delete
trend
leakage
test
config.
To Start PCV : Confirm !
O
2
% L/min
PEEP
mbar
Freq.
1/min
T
I
:T
E
Insp.Flow
L/min
Pmax
mbar
Freshgas O
2
+N
2
O
