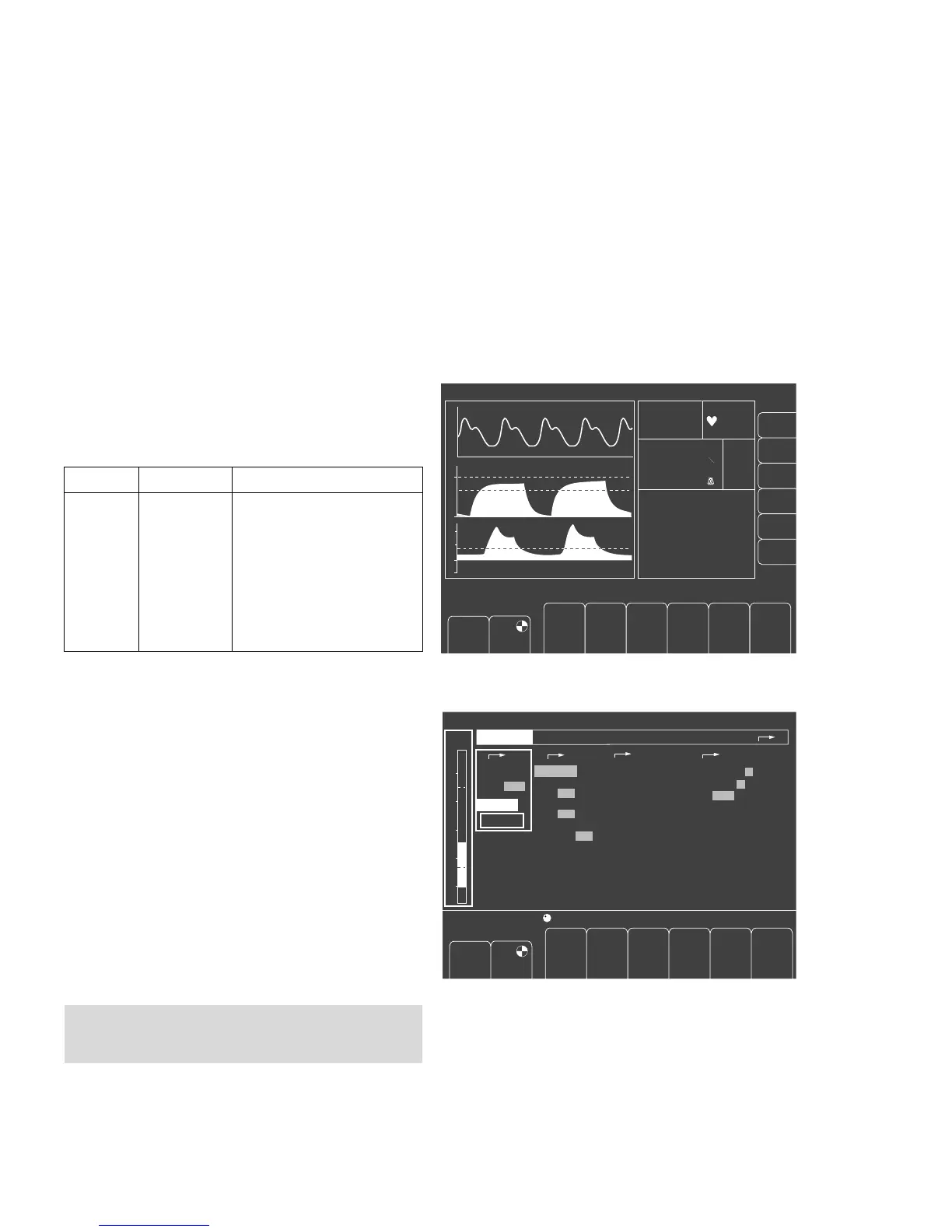

Selecting the anaesthetic agent
Julian automatically recognizes the anaesthetic gas used
and switches measurement and monitoring of the
anaesthetic gas concentration to the identified gas.
If a mixture of two anaesthetic agents is detected,
the system generates a caution message:
AGAS MIXTURE !!
The anaesthetic agent with the higher concentration is
monitored and displayed. As long as a mixture of two
anaesthetic agents is present (e.g. after changing the
anaesthetic agent), the values of the anaesthetic agent
concentration are displayed in grey = reduced accuracy.
Displays Fi and Fet give information about the
anaesthetic agent mixture situation:
Fi display Fet display Situation
grey light AGAS mixture
inspiratory only
grey grey AGAS mixture
inspiratory and expiratory
light grey AGAS mixture
expiratory only
light light No more AGAS mixture
The anaesthetic agent can also be selected manually:
● Turn the rotary knob to select the column »anasth.
agent« and press to confirm.
● Turn the rotary knob to select the line »man« and
press to confirm.
● Turn the rotary knob to select the column »gas« and
press to confirm.
● Turn the rotary knob until the required gas appears in
the display window.
Press the rotary knob to confirm the selection.
The user is responsible for manual selection of the
anaesthetic agent and for correctly filling of the
anaesthetic vaporizer!
74
Monitoring
Configuring in operation
Selecting the anaesthetic agent
Pleth
IPPV
alarm
limits
auto set
limits
alarm
info
list
curves
CO
2
40
0
PAW
0
20
config.
O
2
SpO
2
N
2
O
Hal.
40 36
0.8 0.6
58 56
Fi
Fet
etCO
2
38
98 67
6.0 10
MV
freq
600
V
T
mL
10
1:2
10 0
PEEP
mbar
Freq.
1/min
T
I
:T
E
T
IP
:T
I
%
25
Pmax
mbar
Freshgas O
2
+N
2
O
4.00
O
2
%
L/min
30
_
CO
2
Ve
O
2
-Sensor
21 Vol.%
gas sensor
IPPV
calibration
pulse tone
alarm sound
scale
parameters
record
activate monitor defaults
0 1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9
adult. child
alarms
600 10
1:2
10 0251.0050
settings
✓
✓
O
2
%
L/min
PEEP
mbar
Freq.
1/min
V
T
mL
T
I
:T
E
T
IP
:T
I
%
Pmax
mbar
Freshgas O
2
+ N
2
O
selection
auto man
Standard
CO
2
on off
SpO
2
on off
HLM on off
Isoflurane
PAW
40
20
0
Confirm to select Isoflurane.
anesth. agent
gas
