Programming
128 Service Instructions 869-M PREMIUM - 00.0 - 07/2018

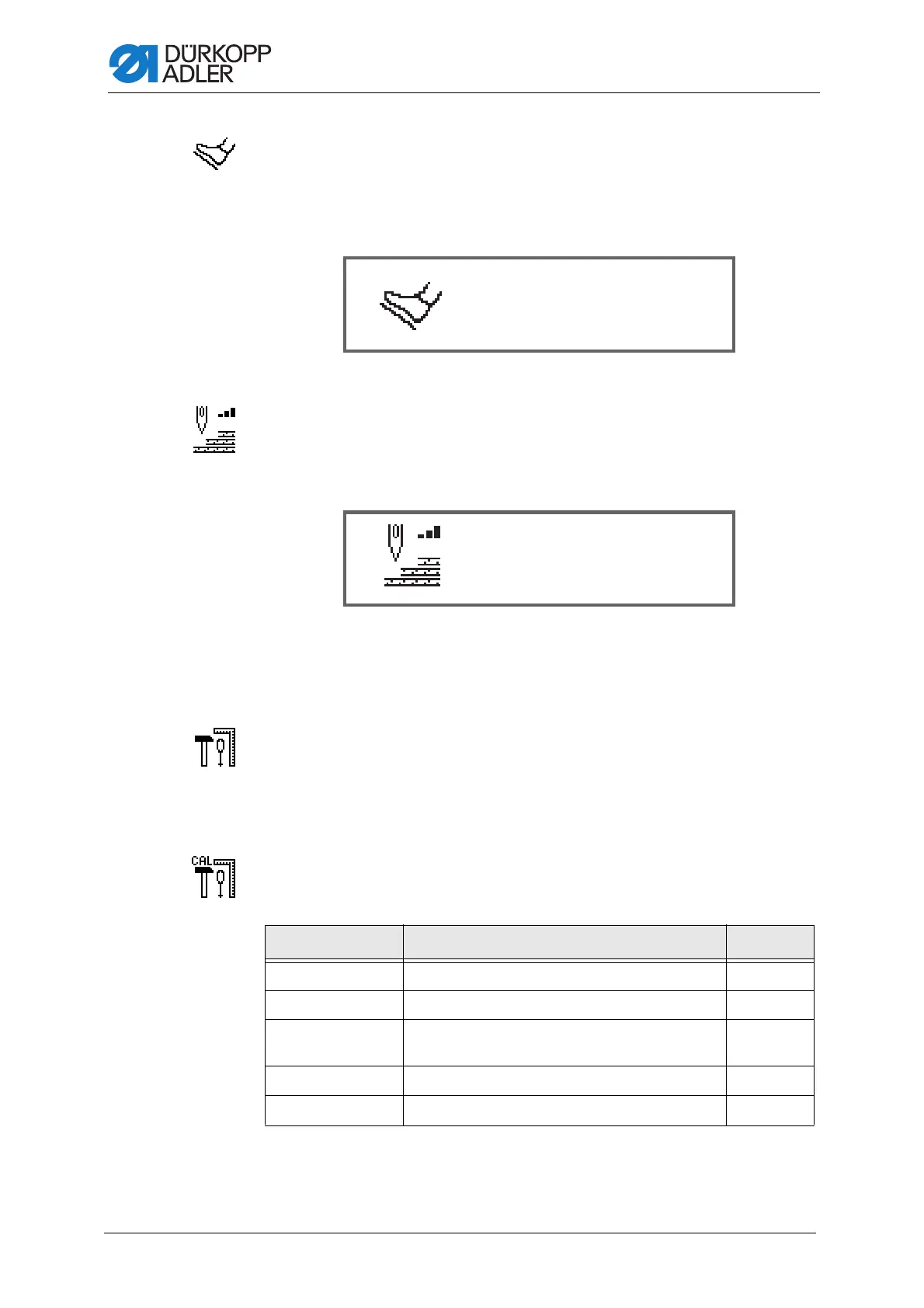

Test Pedal subitem
This subitem is used to check the various pedal positions of the analog
pedal (X6b). The positions are indicated by measured and automatically
calculated calibration values.
Fig. 96: Test Pedal subitem
Test Fabric Sen subitem
Use this subitem to test the functionality of the material thickness
detection.
Fig. 97: Test Fabric Sen subitem
19.8.2 Setting the Service routine (Adjustments) parameter
The Adjustments parameter is not explained in greater detail here,
because it is closely to the area of the mechanics. Details on that area can
be found in the Service routine chapter ( p. 14).
19.8.3 Setting the Calibration (Calibration) parameter
Various parameters need to be calibrated – they are explained in more
detail in the table. A detailed description of the calibration is given after the
table.
Digital :
Analog :
0
278
0:
Max:
-1:
-2:328
175
275
918
Tens :
FLPos:
20
0.0 Stroke:
Pressu:
Speed :
2.5
3
0
Menu item Explanation Reference
Feed Cal.Main Calibration of the stitch length and/or the feed  p. 129
Mat.Thickness Calibration of the material thickness detection  p. 130
Man.St.Len. Calibration of the stitch adjustment lever (optional
equipment)
 p. 130
EdgeGuide Calibration of the edge guide (optional equipment)  p. 130
Pedal Calibration of the pedal  p. 131
