Integrated motor

Service Instructions 869-M PREMIUM - 00.0 - 07/2018 83

18.2 Disassembling the drive

18.2.1 Disassembling the handwheel and handwheel flange

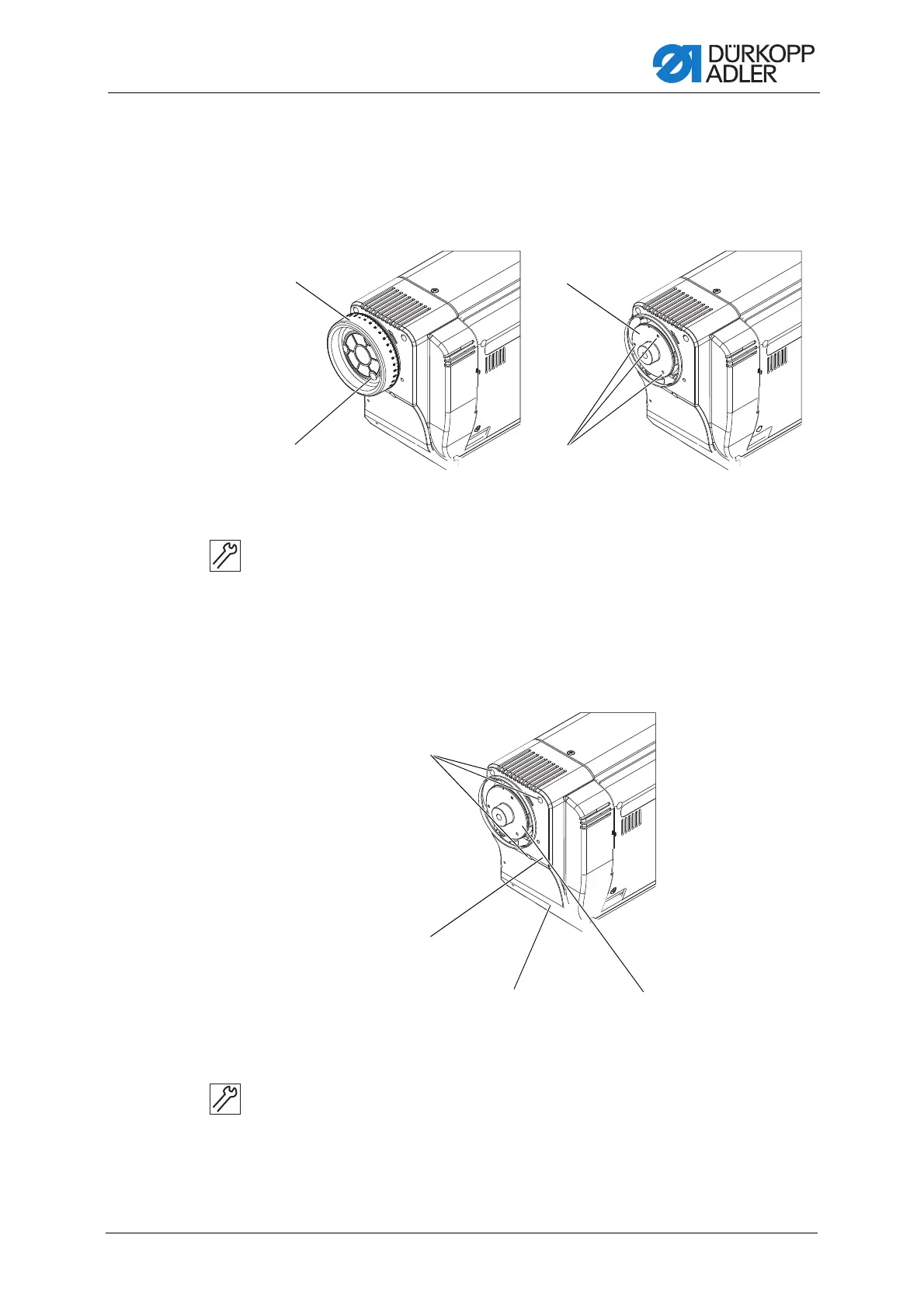

Fig. 69: Disassembling the handwheel and handwheel flange

To disassemble the handwheel and handwheel flange:

1. Loosen all 3 screws (2) on the handwheel (1).

2. Loosen all threaded pins (3) and remove the handwheel flange (4).

18.2.2 Removing the cover

Fig. 70: Removing the cover

To remove the cover:

1. Loosen all 5 screws (1).

2. Remove the cover (2) from the side.

(1) - Handwheel

(2) - Screws

(3) - Threaded pins

(4) - Handwheel flange

①

②

④

③

(1) - Screws

(2) - Cover

(3) - Handwheel flange

①

③

①

②
