12.2 Setting an even sewing foot stroke

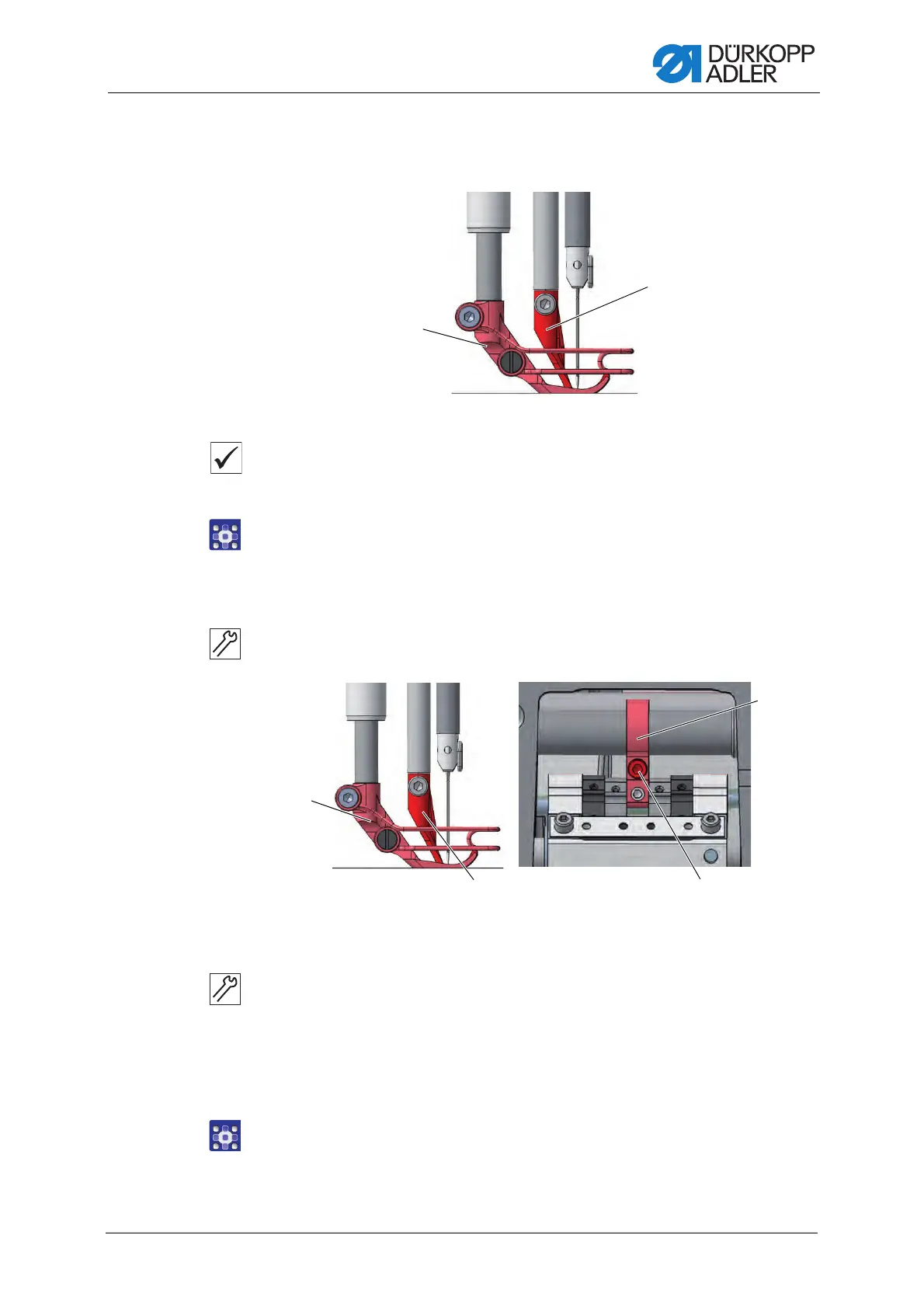

Fig. 41: Setting an even sewing foot stroke (1)
Proper setting
For sewing foot stroke 3, the presser foot (1) and feeding foot (2) are
raised by the same height.
To set an even sewing foot stroke:
1. Execute the service routine Stroke > Equal Stroke
( p. 14).
The software is used to define the necessary presettings on the
machine.
2. Remove the arm cover ( p. 18).
Fig. 42: Setting the sewing foot stroke (2)
3. Loosen the screw (3).
4. Lower the feeding foot (2) to a height of 3 mm above the throat plate.
5. Tighten the screw (3).
6. Check whether the presser foot (1) and the feeding foot (2) are raised
to the same height.
If not, correct the setting.
7. Finish the service routine.
(1) - Presser foot (2) - Feeding foot
(1) - Presser foot
(2) - Feeding foot
(3) - Screw
(4) - Lever
