Sewing Feet
56 Service Instructions 869-M PREMIUM - 00.0 - 07/2018
12.3 Setting the stroke movement for the feeding foot

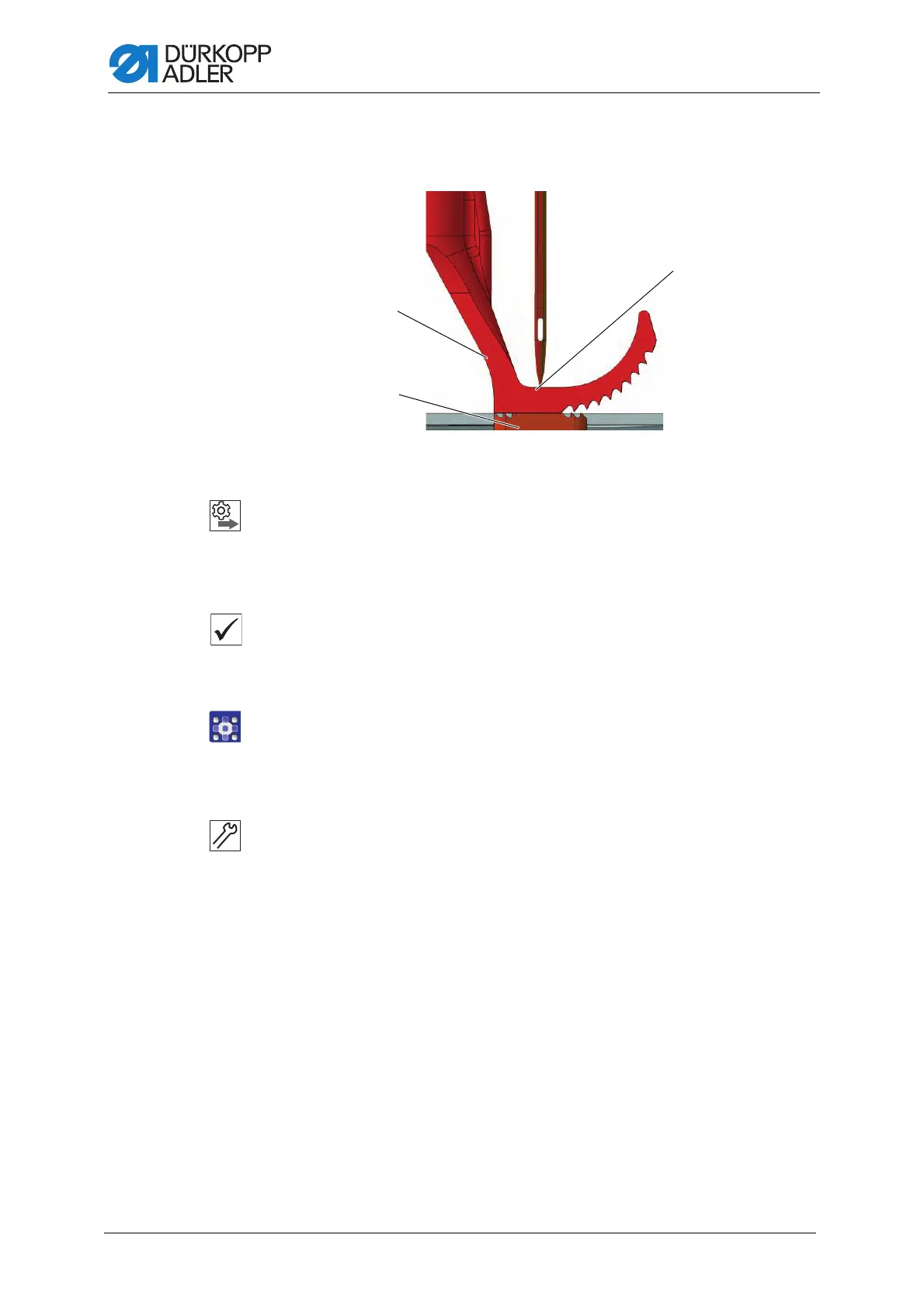

Fig. 43: Setting the stroke movement for the feeding foot (1)
Order
First, check the following settings:
• Feed dog movement ( p. 38)
• Sewing foot stroke( p. 55)
Proper setting
The feeding foot (1) touches down exactly on the feed dog (2) when the
downward movement of the needle tip (3) reaches the upper edge of the
feeding foot. This will occur when the handwheel is in the 95° position.
To set the stroke movement for the feeding foot:
1. Execute the service routine Stroke > Feed Move
( p. 14).
The software is used to define the necessary presettings on the
machine.
2. Remove the arm cover ( p. 18).
(1) - Feeding foot
(2) - Feed dog
(3) - Needle tip
