Winder
74 Service Instructions 869-M PREMIUM - 00.0 - 07/2018
Assembling the winder

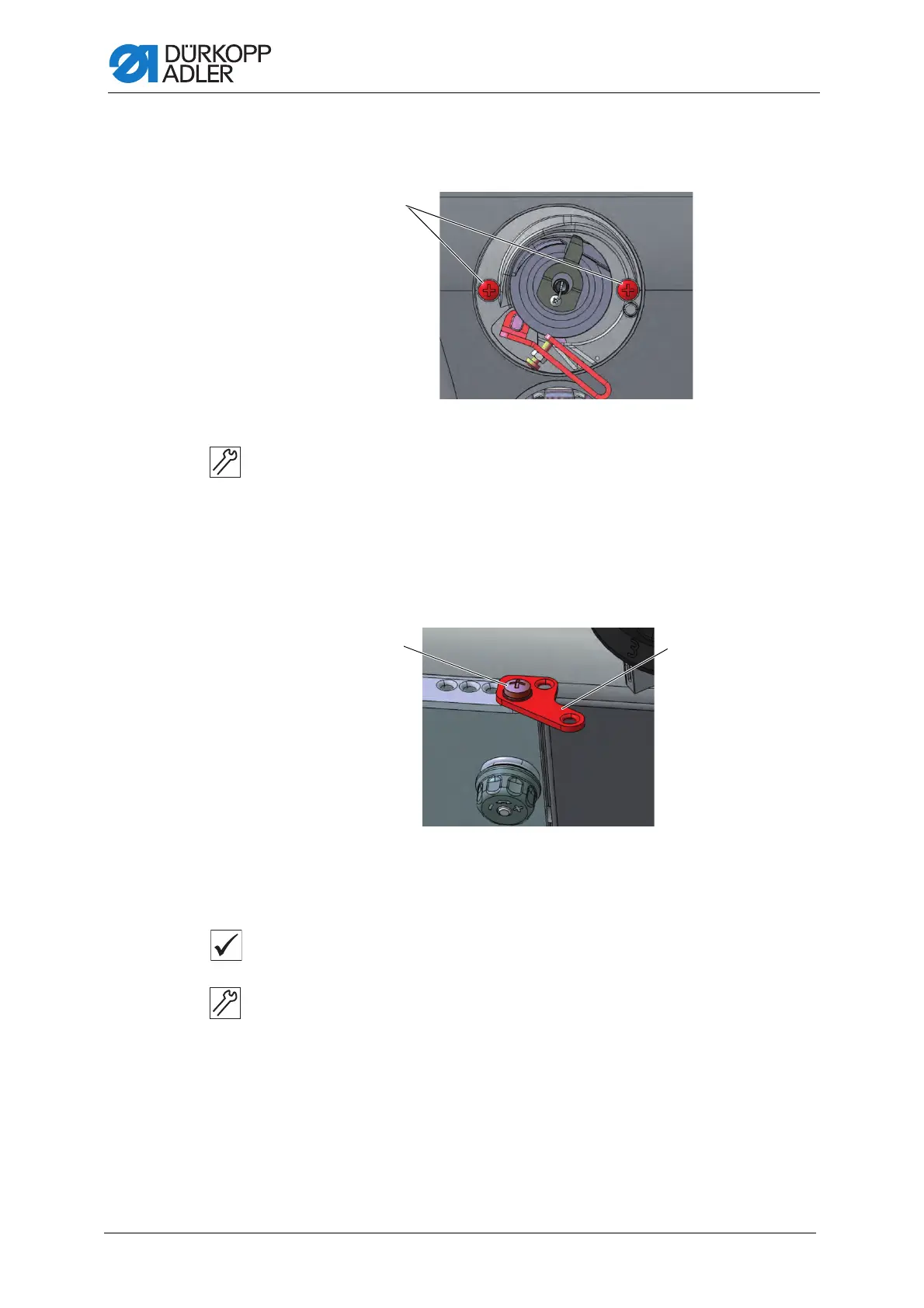

Fig. 59: Setting the winder (5)
To assemble the winder:
17. Place the winder on the machine arm.
18. Tighten the screws (1).
15.2 Setting the hook thread guide
Fig. 60: Setting the hook thread guide
The position of the hook thread guide determines how the hook thread is
wound onto the bobbin.
Proper setting
The hook thread is wound on evenly over the entire width of the bobbin.
To set the bobbin thread guide:
1. Loosen the screw (1).
2. Turn the hook thread guide (2):
• To the front: The hook thread will be wound on further to the front
• To the rear: The hook thread will be wound on further to the rear
(1) - Screws
(1) - Screw (2) - Hook thread guide
