Adjusting the thread tensioning plate
60 Service Instructions 869-M PREMIUM - 00.0 - 07/2018
13 Adjusting the thread tensioning plate
Preparing the adjustment using the Schmidt MST-2000
Use screw clamps to attach a plain sheet of metal (e.g. 6 mm aluminum)
to the tabletop on the left-hand side of the machine.
Set up the thread scale with its suction cup base on the metal plate in such
a way that the sewing thread - coming from the thread lever - lines up with
thread guides both horizontally and vertically.
Important
Use a Serafil 30 black thread to set the thread tensioning plate.
cw = turn clockwise
ccw = turn counterclockwise
13.1 Setting the machine

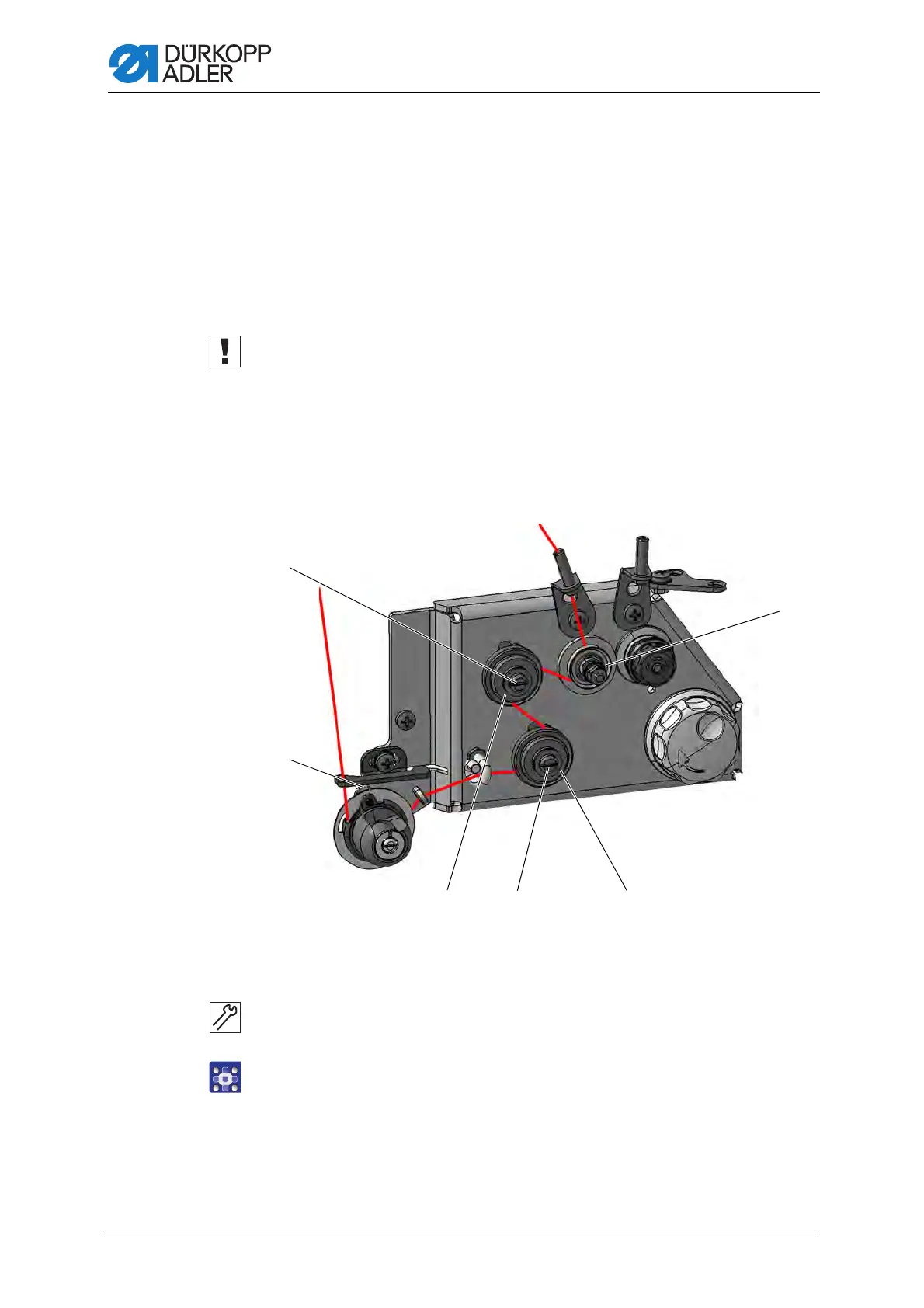

Fig. 46: Setting the machine
To set the machine:
1. Switch on the machine.
2. Call up the service routine Service > Settings > Thr.Tens.Top
( Service Instructions).
The software is used to define the necessary presettings on
the machine.
(1) - Lock screw
(2) - Thread tension spring
(3) - Stop screw
(4) - Lock screw
(5) - Stop screw
(6) - Pre-tensioner
