Maintenance
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 147
20.3.2 Draining the water condensation
Water condensation accumulates in the water separator (2) of the pressure
controller.
Proper setting
Water condensation must not rise up to the level of the filter element (1).
Check the water level in the water separator (2) on a daily basis.

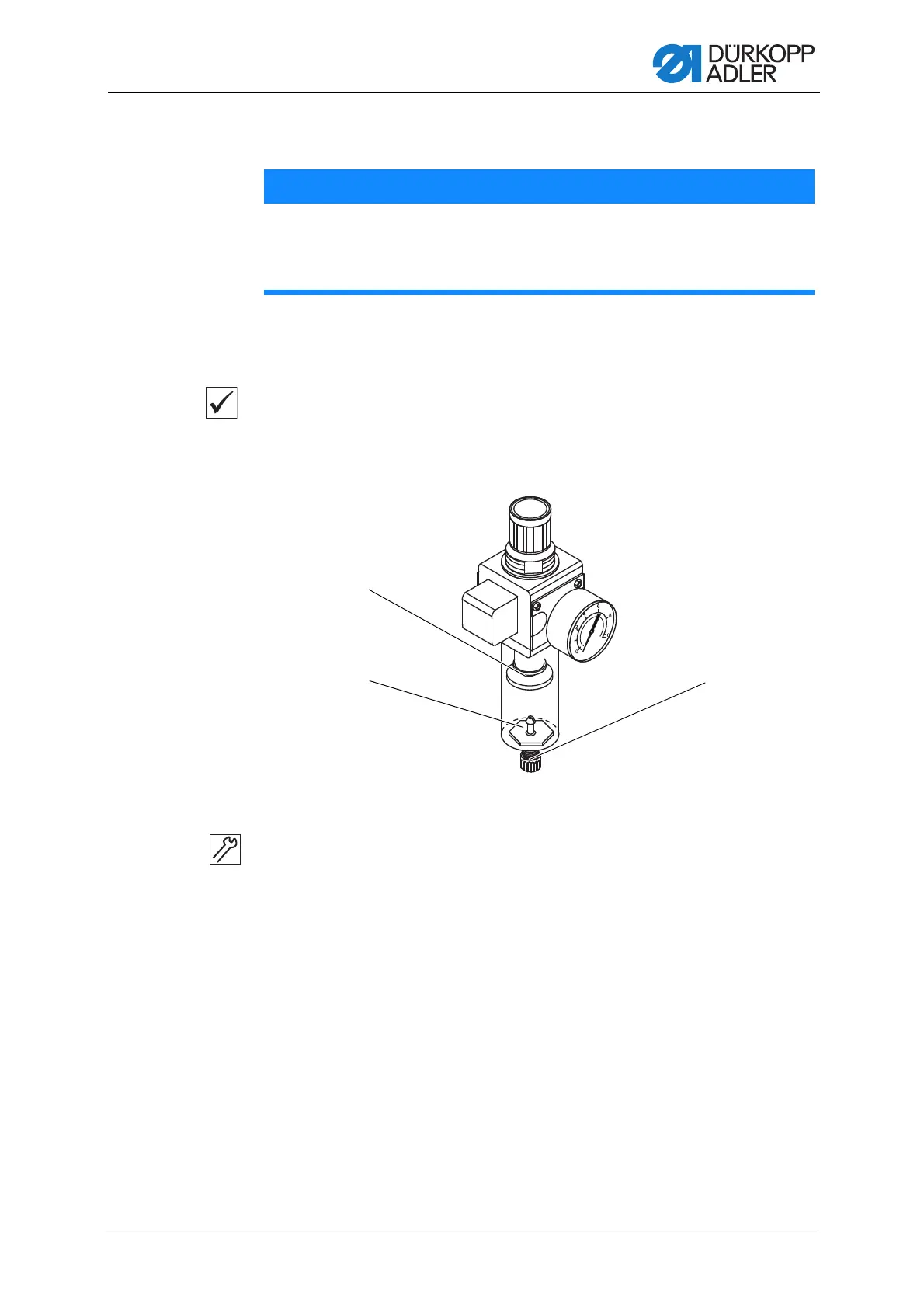

Fig. 114: Draining the water condensation
To drain water condensation:
1. Disconnect the machine from the compressed air supply.
2. Place the collection tray under the drain screw (3).
3. Loosen the drain screw (3) completely.
4. Allow water to drain into the collection tray.
5. Tighten the drain screw (3).
6. Connect the machine to the compressed air supply.
NOTICE
Property damage from excess water!
Excess water can cause damage to the machine.
Drain water as required.
(1) - Filter element
(2) - Water separator
(3) - Drain screw
