Integrated motor
88 Service Instructions 869-M PREMIUM - 00.0 - 07/2018
18.3.3 Assembling the encoder

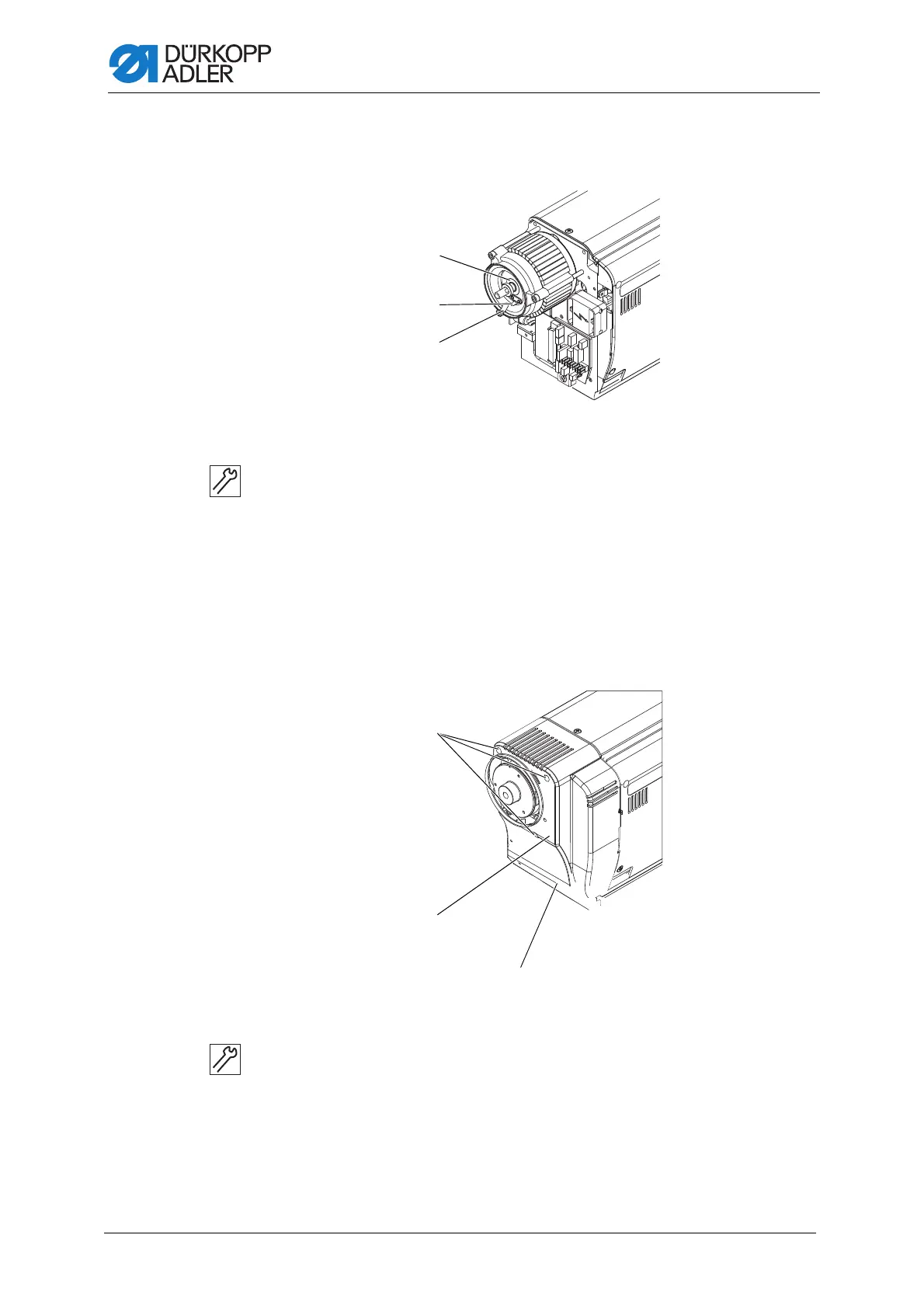

Fig. 76: Assembling the encoder
To fit the encoder:
1. Push the encoder (2) and encoder disk (1) onto the shaft.
2. Align the encoder disk (1) so that it runs in the middle of the encoder (2).
3. Screw the encoder disk (1) and encoder (2) firmly in place.
4. Tighten the retaining plate (3).
18.3.4 Assembling the cover
Fig. 77: Assembling the cover
To place the cover:
1. Position the cover (2) at the side.
2. Tighten the screws (1).
(1) - Encoder disk
(2) - Encoder
(3) - Retaining plate
(1) - Screws (2) - Cover
