Sewing Feet
54 Service Instructions 869-M PREMIUM - 00.0 - 07/2018
12 Sewing Feet
12.1 Setting the sewing foot lifting gear

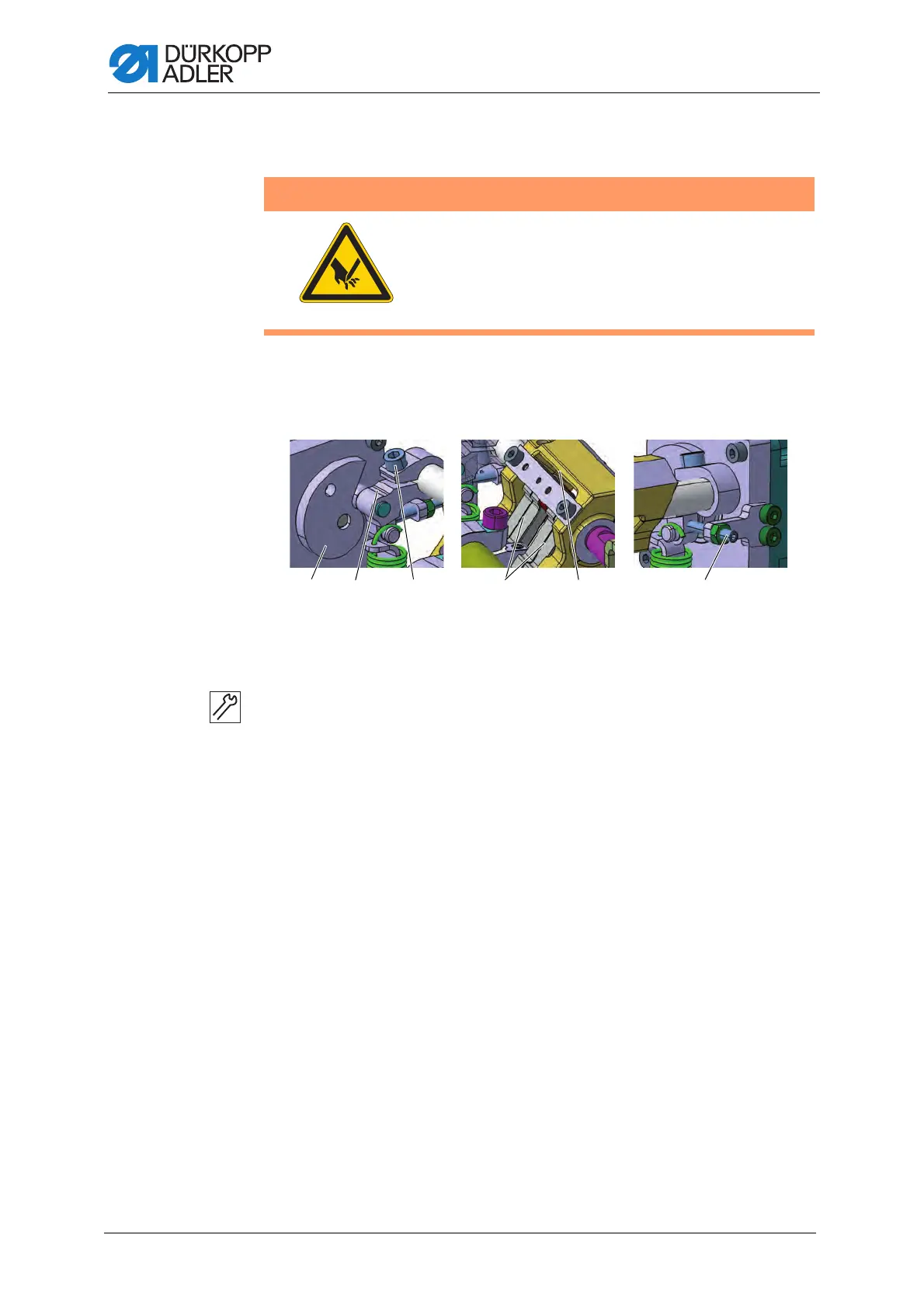

Fig. 40: Setting the sewing foot lifting gear
To set the lifting gear of the sewing foot:
1. Switch off the machine.
2. Remove the arm cover ( p. 18).
3. Loosen screw (3) and threaded pin (6).
4. Press the lever (2) with the roller into the stop of the control cam (1).
5. Place the plates in the gear (5) in zero position and tighten the roller
lever with screw (3).
6. Set the threaded pin (6) against the roller lever in the gear's zero
position.
WARNING
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Move the machine into the service routine before
setting the sewing feet.
(1) - Curve
(2) - Lever
(3) - Screw
(4) - Plates
(5) - Gear
(6) - Threaded pin
