Adjusting the thread tensioning plate

Service Instructions 869-M PREMIUM - 00.0 - 07/2018 61

3. Set thread tension level 2 (50%).

4. Lock the machine in place at position 1 (handwheel position 0°).

5. Remove the thread tension spring from the operating range (cw).

6. Loosen lock screws (1) and (4).

7. Loosen stop screws (3) and (5) (ccw).

8. Set the pre-tensioner (6) to a tension force of 20 cN.

 Pretensioning must not significantly impair the thread tension.

13.2 Adjusting the tensioning plate

13.2.1 Adjusting the tensioning plate using the Schmidt MST-2000

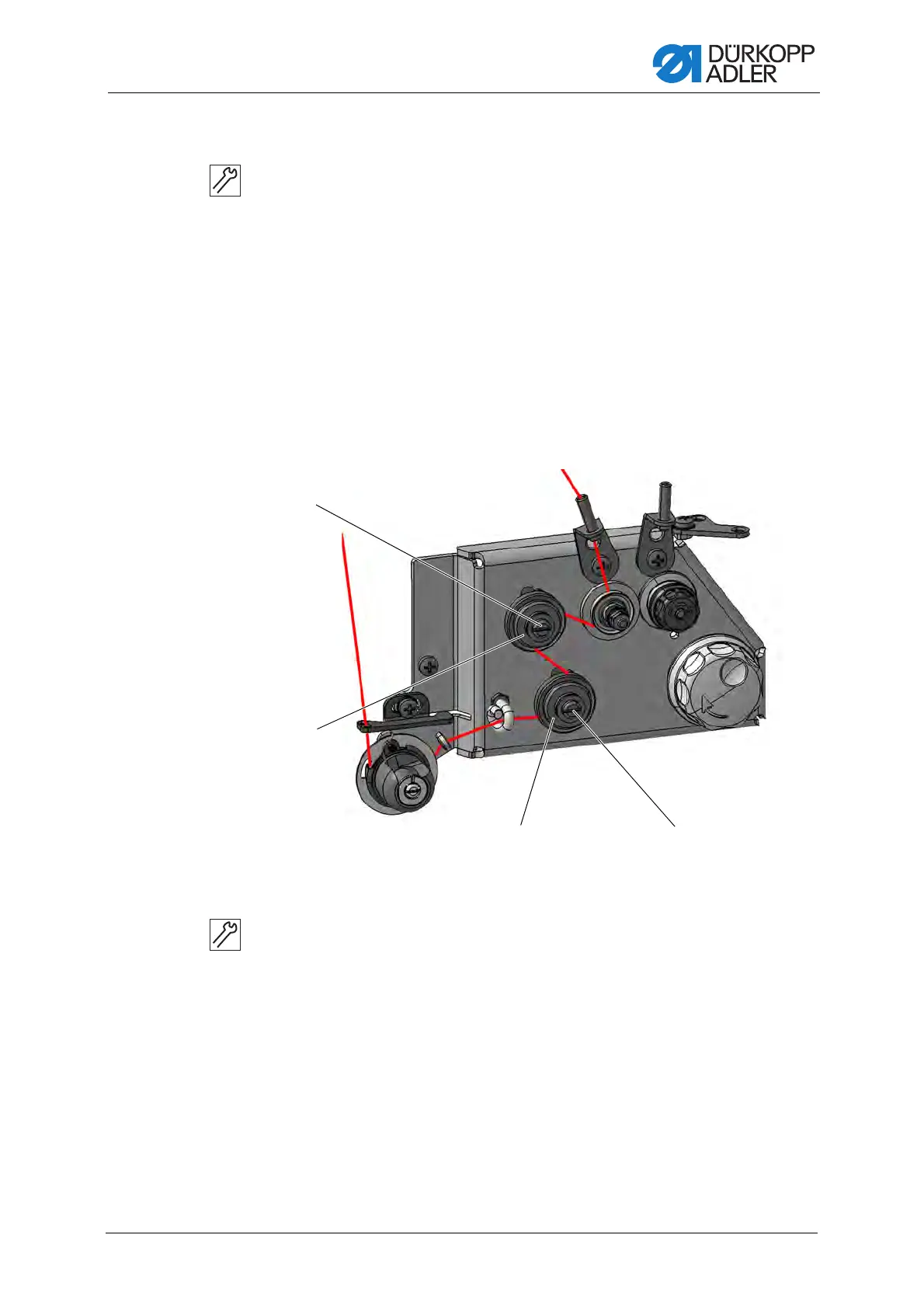

Fig. 47: Adjusting the tensioning plate (1)

To adjust the tensioning plate:

1. Insert the needle thread as shown above.

(1) - Lock screw

(2) - Stop screw

(3) - Stop screw

(4) - Lock screw

①

②

③④
