Integrated motor
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 87
18.3.2 Assembling the stator

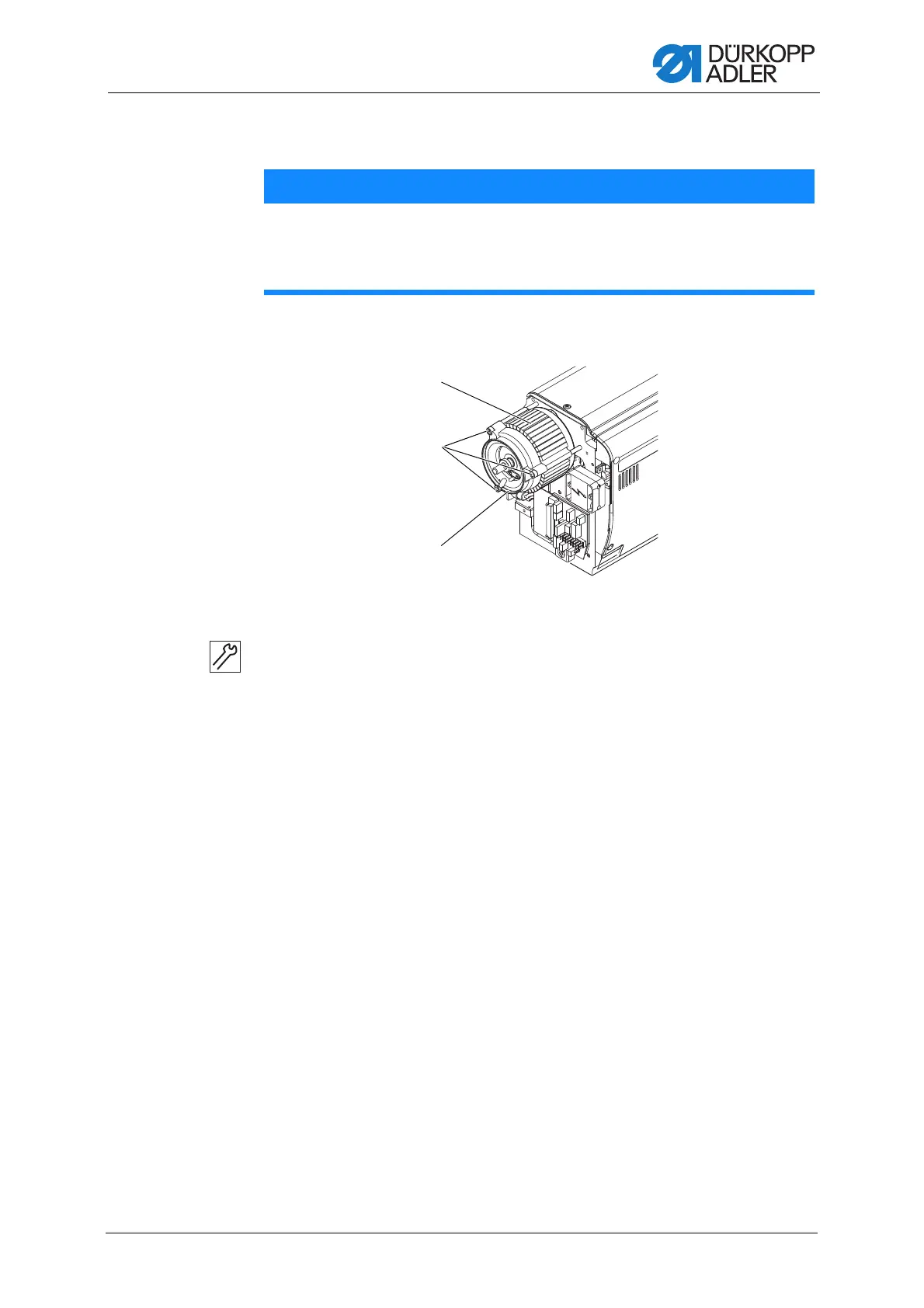

Fig. 75: Assembling the stator
To assemble the stator:
1. Push the stator with ring (1) onto the shaft, paying attention to the ring
gap for the cable.
2. Assemble the cover plate (3).
3. Evenly screw the screws (2) firmly in place so that a uniform gap exists
between the cover plate (3) and shaft.
NOTICE
Property damage may occur!
The stator can be attracted by applying magnetic force.
Work carefully and in a controlled manner.
(1) - Stator with ring
(2) - Screws
(3) - Cover plate
