Setting the handwheel scale
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 27
4 Setting the handwheel scale
Proper setting
1. Lock the machine in place at position 2 ( p. 25).
The handwheel is at position 0°.
If a different degree number is next to the marking, then you will have
to reset the graduated scale.

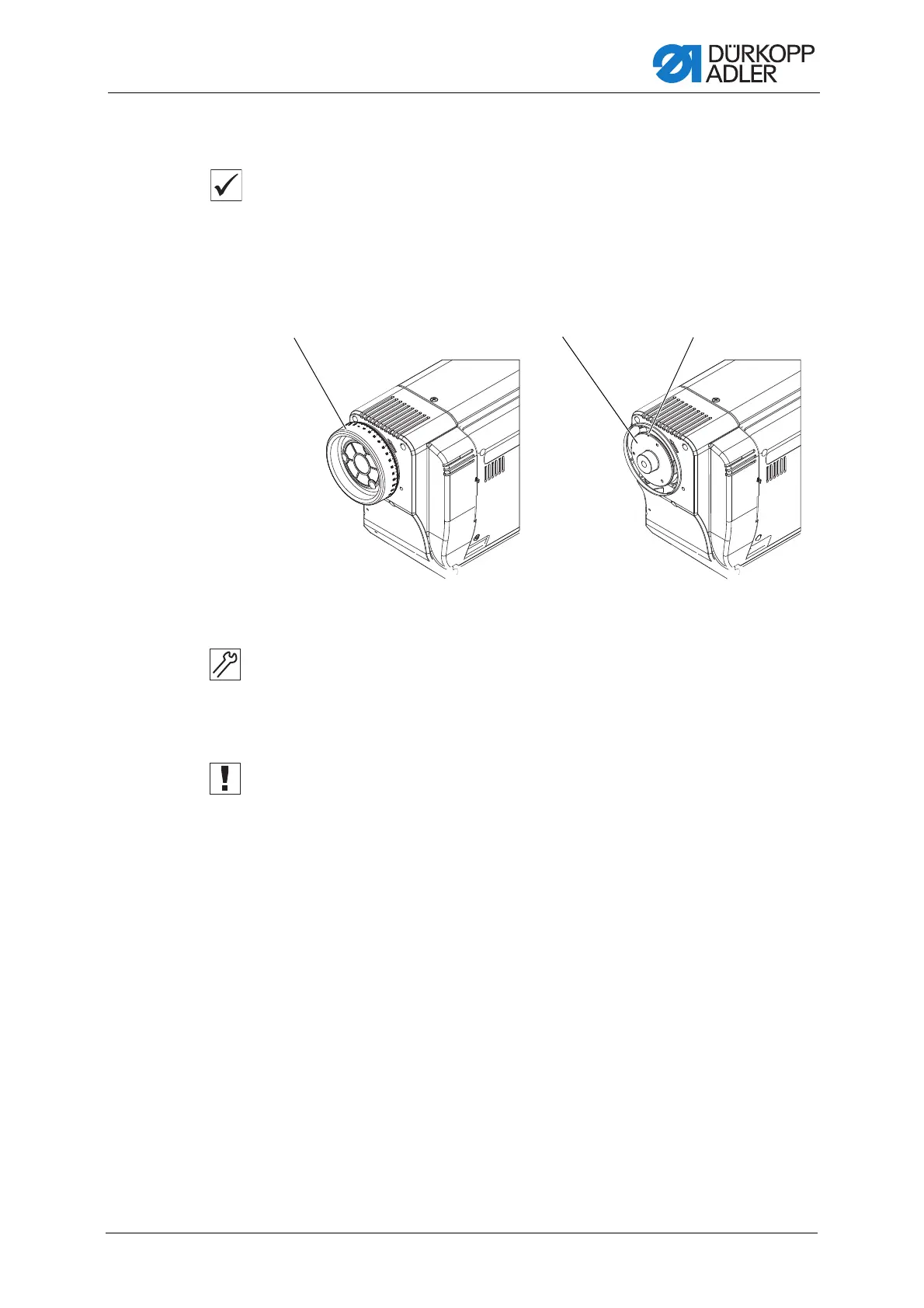

Fig. 15: Setting the handwheel scale
To set the handwheel scale:
1. Lock the machine in place ( p. 25).
2. Remove the handwheel (1).
3. Loosen and turn the washer (2).
Important
The marking (3) on the washer (2) marks the position 0°.
4. Tighten the washer (2)
5. Place the handwheel (1).
(1) - Handwheel
(2) - Washer
(3) - Marking
