Integrated motor

Service Instructions 869-M PREMIUM - 00.0 - 07/2018 85

18.2.5 Disassembling the rotor

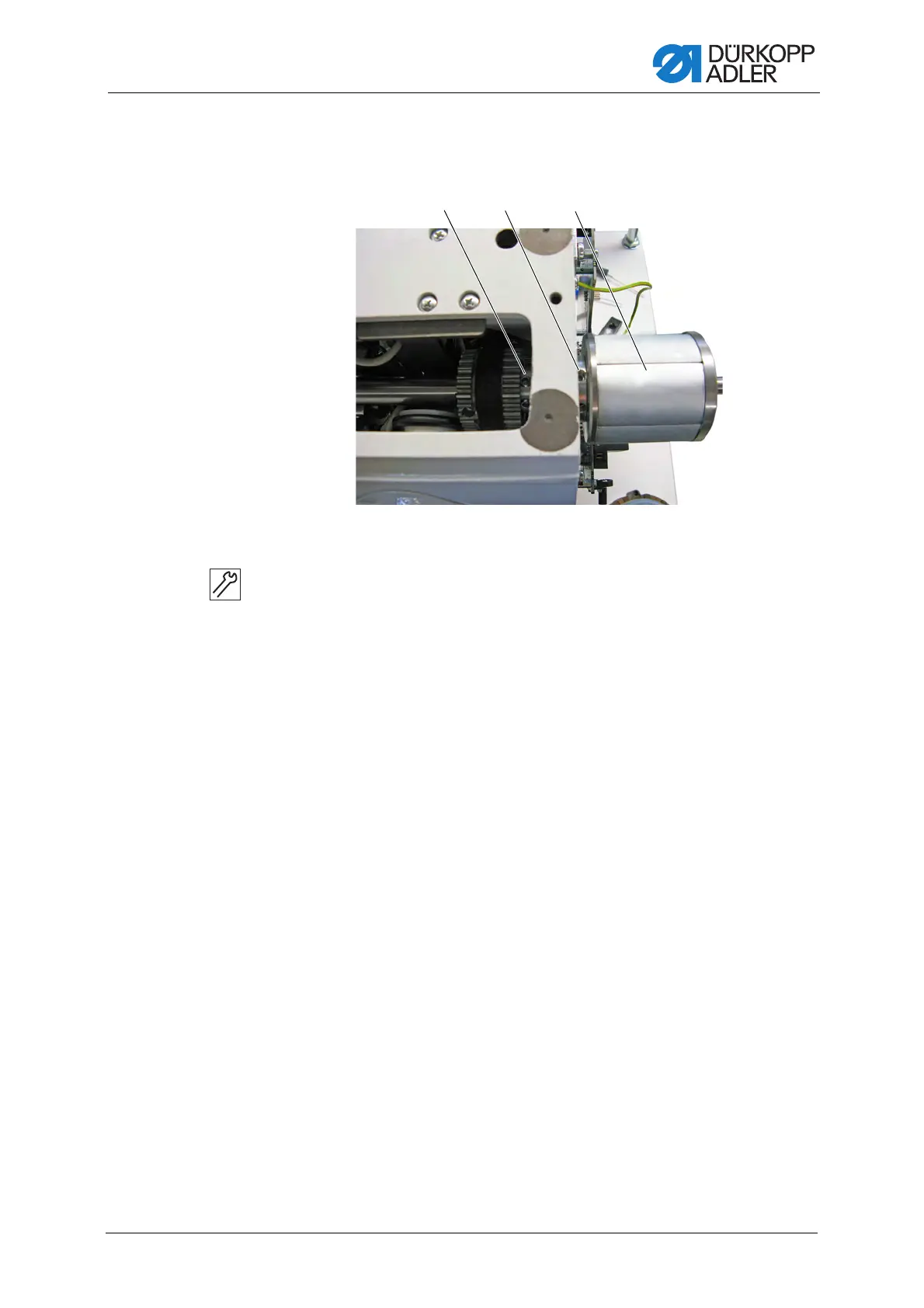

Fig. 73: Disassembling the rotor

To disassemble the rotor:

1. Remove the arm cover ( p. 18).

2. Loosen the threaded pins (1), (2).

3. Remove the rotor with deep groove ball bearing (3).

(1) - Threaded pins

(2) - Threaded pins

(3) - Rotor with deep groove ball bearing

①② ③
