Winder
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 71
15 Winder
15.1 Setting the winder

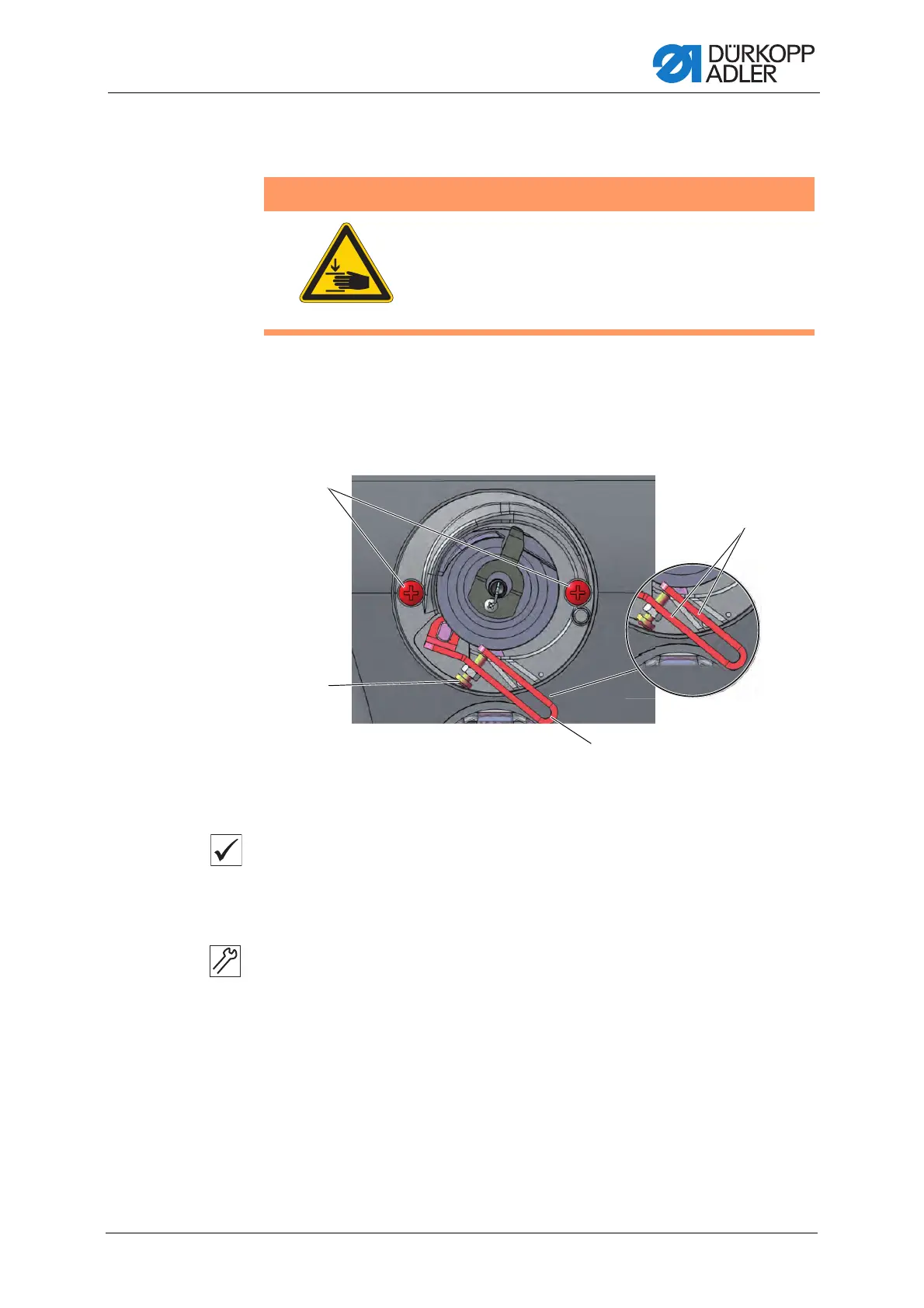

Fig. 55: Setting the winder (1)
Proper setting
The winder wheel runs smoothly and without axial play.
The winding process will stop automatically when the required filling
quantity of the bobbin is reached.
To set the winder:
1. Remove the arm cover ( p. 18).
Removing the winder
2. Loosen the screws (1).
3. Remove the winder.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before setting the winder.
(1) - Screws
(2) - Screw
(3) - Winder lever
(4) - Shank
