Aligning the needle bar linkage

42 Service Instructions 869-M PREMIUM - 00.0 - 07/2018

9 Aligning the needle bar linkage

Order

First, check the following setting:

• A straight and undamaged needle has been inserted ( Operating

Instructions)

Proper setting

If the stitch length is 0, the needle pierces exactly in the center of the

needle hole.

9.1 Aligning the needle bar linkage sideways

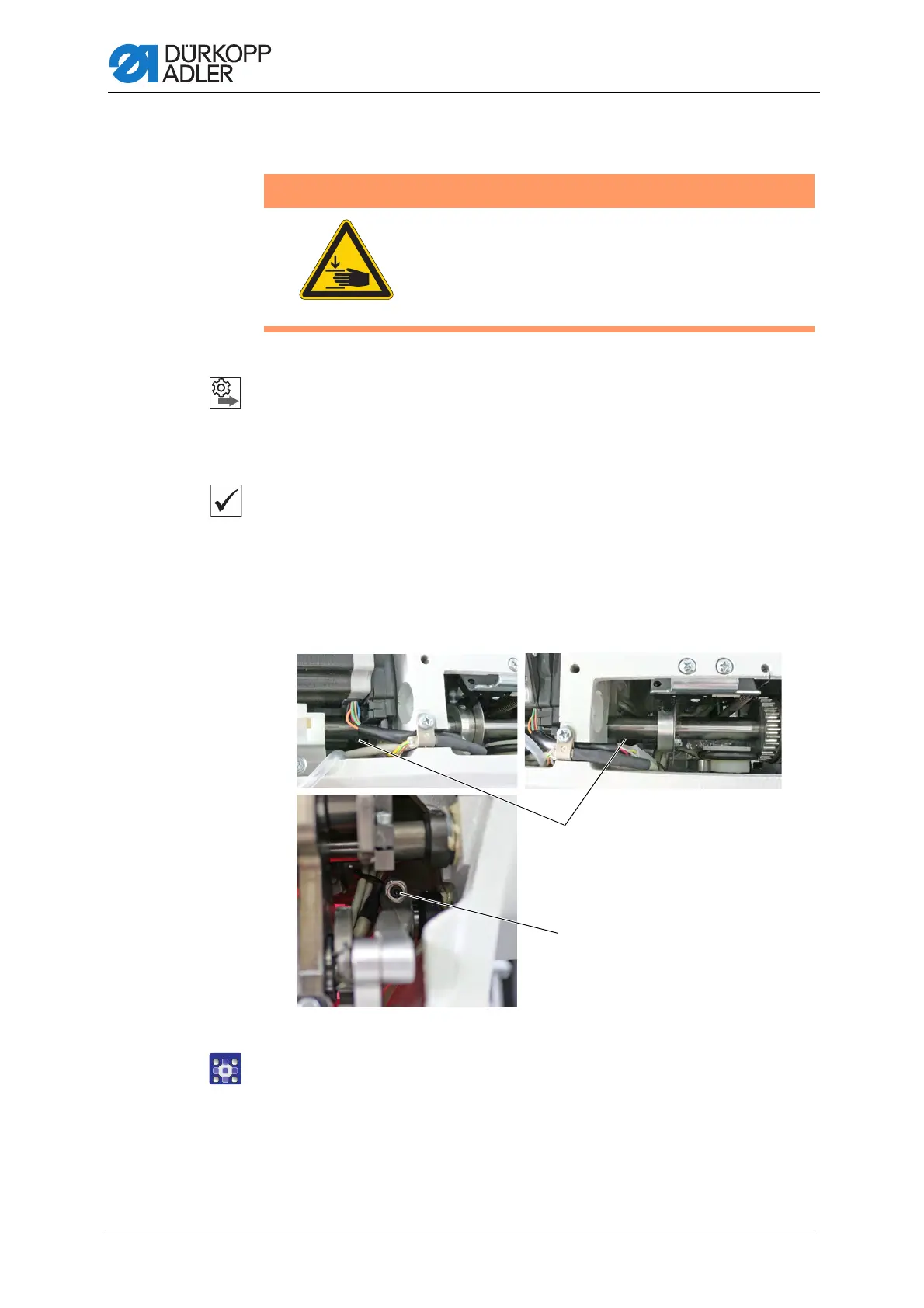

Fig. 29: Aligning the needle bar linkage sideways (1)

To align the needle bar linkage sideways:

1. Execute the service routine Needle-Hook > Needlebar

( p. 14).

 The software is used to define the necessary presettings on

the machine.

WARNING

Risk of injury from moving parts!

Crushing possible.

Move the machine into the service routine before

aligning the needle bar linkage.

(1) - Threaded pins (2) - Screw
