Winder
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 73
To set the winder spacing:
7. Turn the winder spindle (6) such that the thread-pulling knife (5) is
at the top right and is facing the right-hand screw hole (7).
8. Loosen the threaded pin in the block (8).
9. Set the winder lever (3) such that the upper arm is above the marking
for the XXL hook (11).
The distance between the winder lever and the outer thread on
the bobbin is 2 – 3 mm.
10. Set the block (8) such that it is resting against the locking disk (9).
11. Set the block (8) such that its distance to the winder wheel (10)
is 0.5 mm.
12. Tighten the threaded pin in the block (8).
Setting the winder run

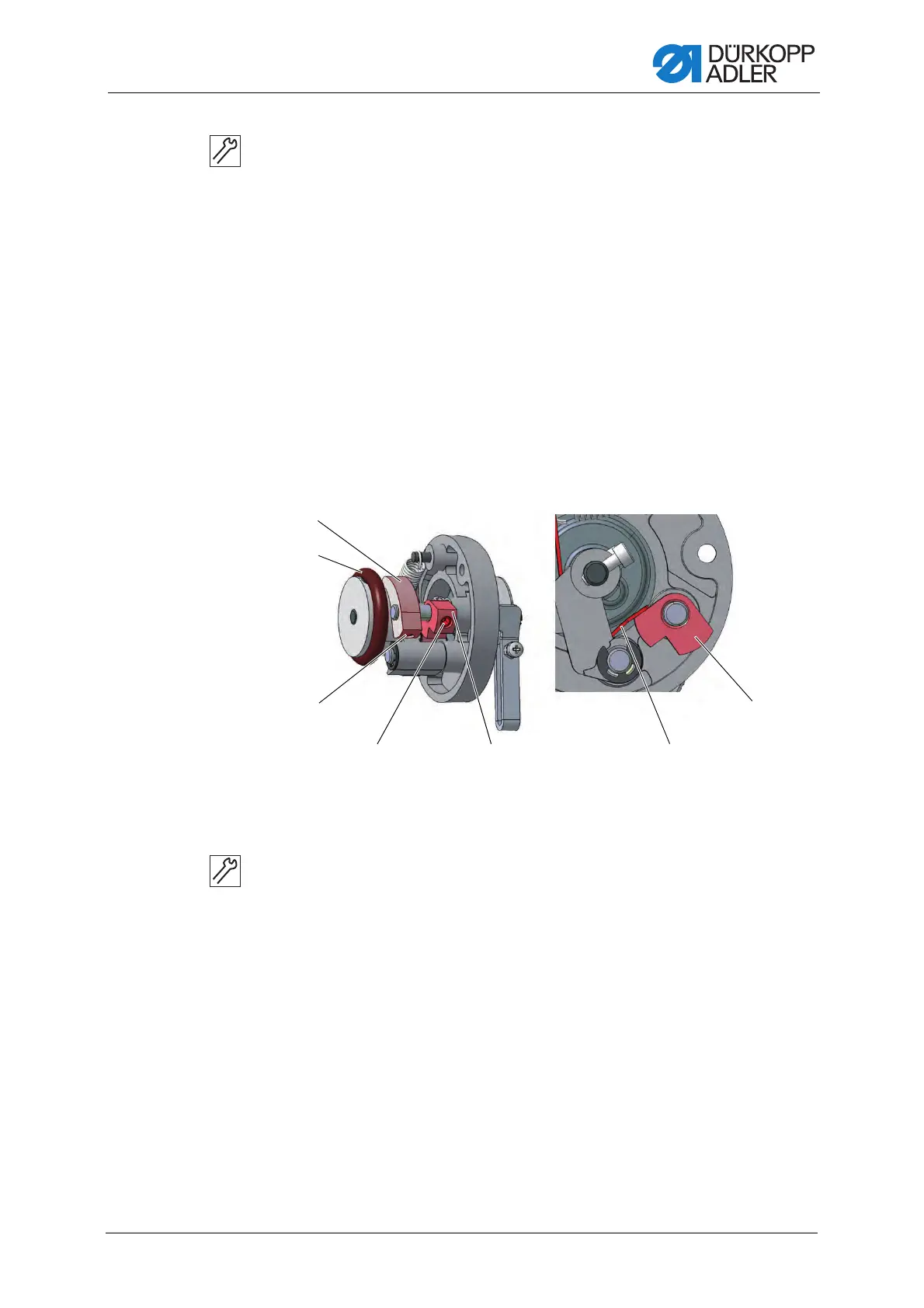

Fig. 58: Setting the winder (4)
To set the winder run:
13. Loosen the threaded pin (13).
14. Set the switch cam (14) such that it is just contacting the leaf spring (15)
when the block (8) has engaged in the locking disk.
15. Set the switch cam (14) such that the winder lever (3) has no axial play.
16. Tighten the threaded pin (13).
(8) - Block
(10) - Winder wheel
(12) - Threaded pin
(13) - Threaded pin
(14) - Switch cam
(15) - Leaf spring
