Setting the mechanical stitch adjustment
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 33

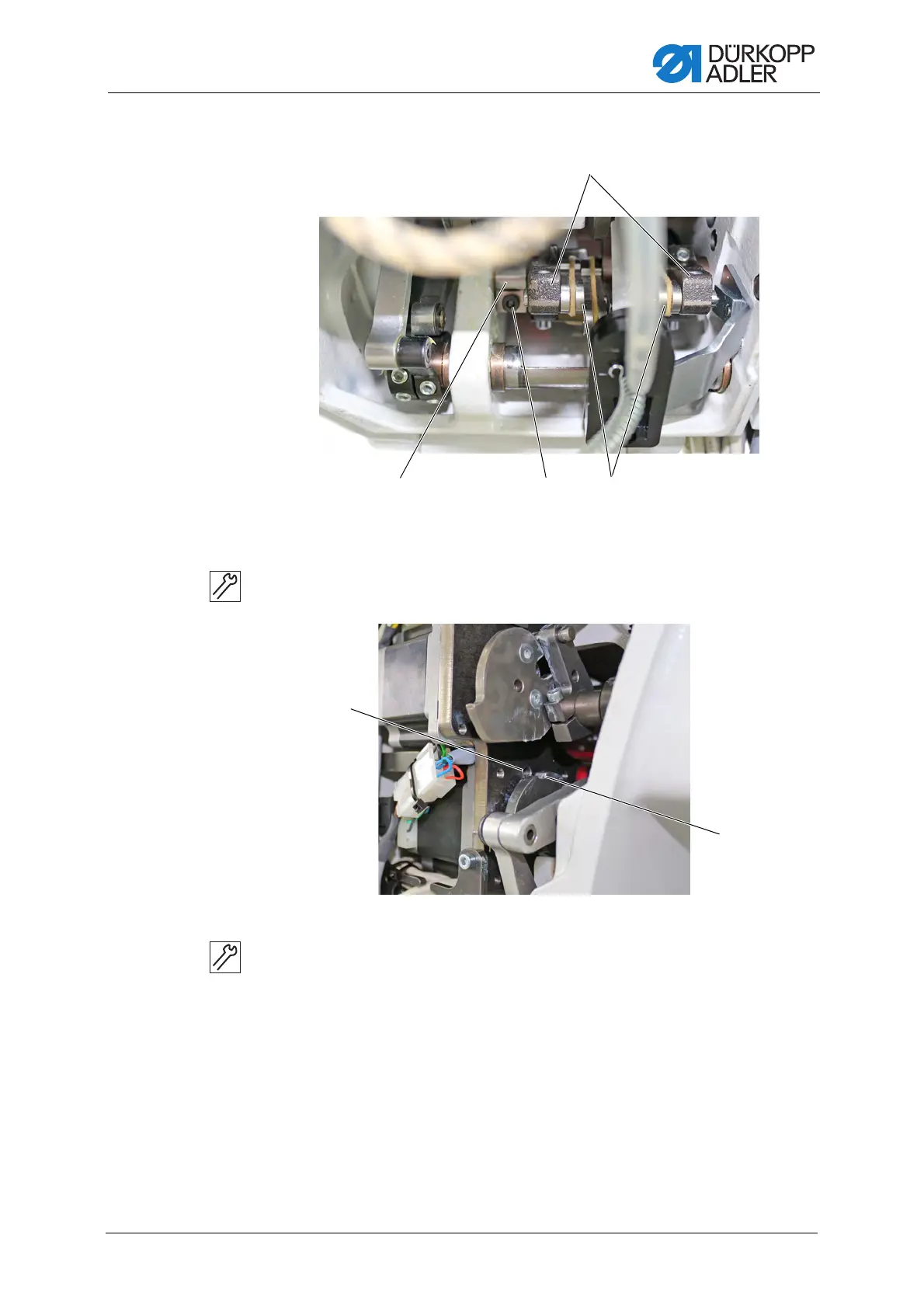

Fig. 20: Setting the mechanical stitch adjustment (2)
4. Loosen the screw (4).
Fig. 21: Setting the mechanical stitch adjustment (3)
5. Line up the hole (6) with the recess (7).
6. Insert a locking pin (Ø 5 mm) into hole (6) and recess (7).
7. Manually position the plates (5) so that they are parallel.
(2) - Frame of the stitch regulator gear
(3) - Lever
(4) - Screw
(5) - Plates of the stitch regulator gear
(6) - Hole (7) - Recess
