Setting the feed dog
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 37
Moving the feed dog

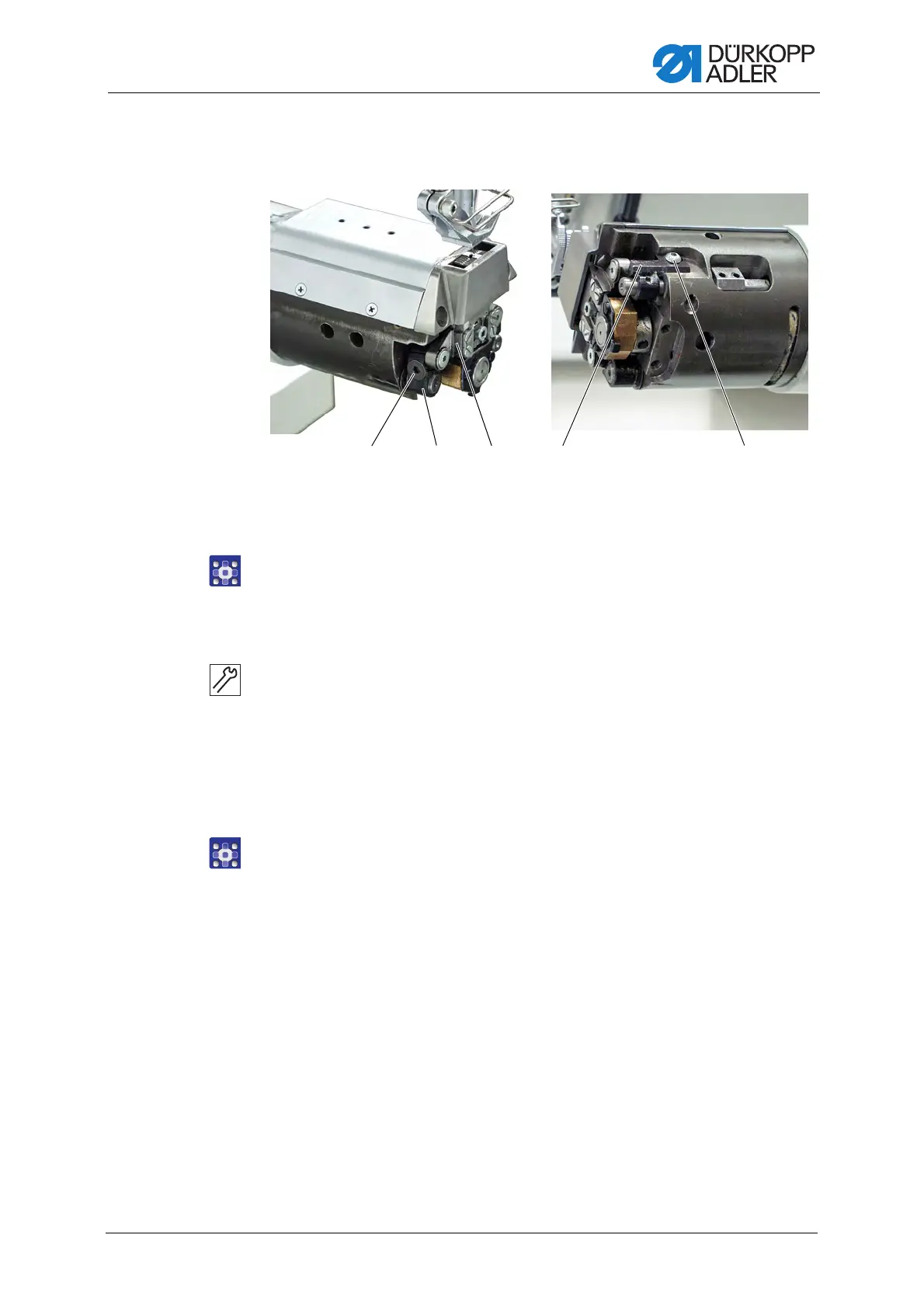

Fig. 24: Moving the feed dog
To move the feed dog:
1. Execute the service routine Feed dog > PosToNeedle
( p. 14).
The software is used to define the necessary presettings on
the machine.
2. Disassemble the throat plate ( p. 22).
3. Loosen screws (1) and (5).
4. Loosen the threaded pins on the stroke eccentric (4).
5. Move the feed dog carrier (3).
Place the removed throat plate next to it as an aid for orientation so
that the feed dog can be screwed on straight.
6. Tighten screws (1) and (5).
7. Finish the service routine.
(1) - Screw
(2) - Lever
(3) - Feed dog carrier
(4) - Stroke eccentric
(5) - Screw
②③
