Setting the feed dog
Service Instructions 869-M PREMIUM - 00.0 - 07/2018 39

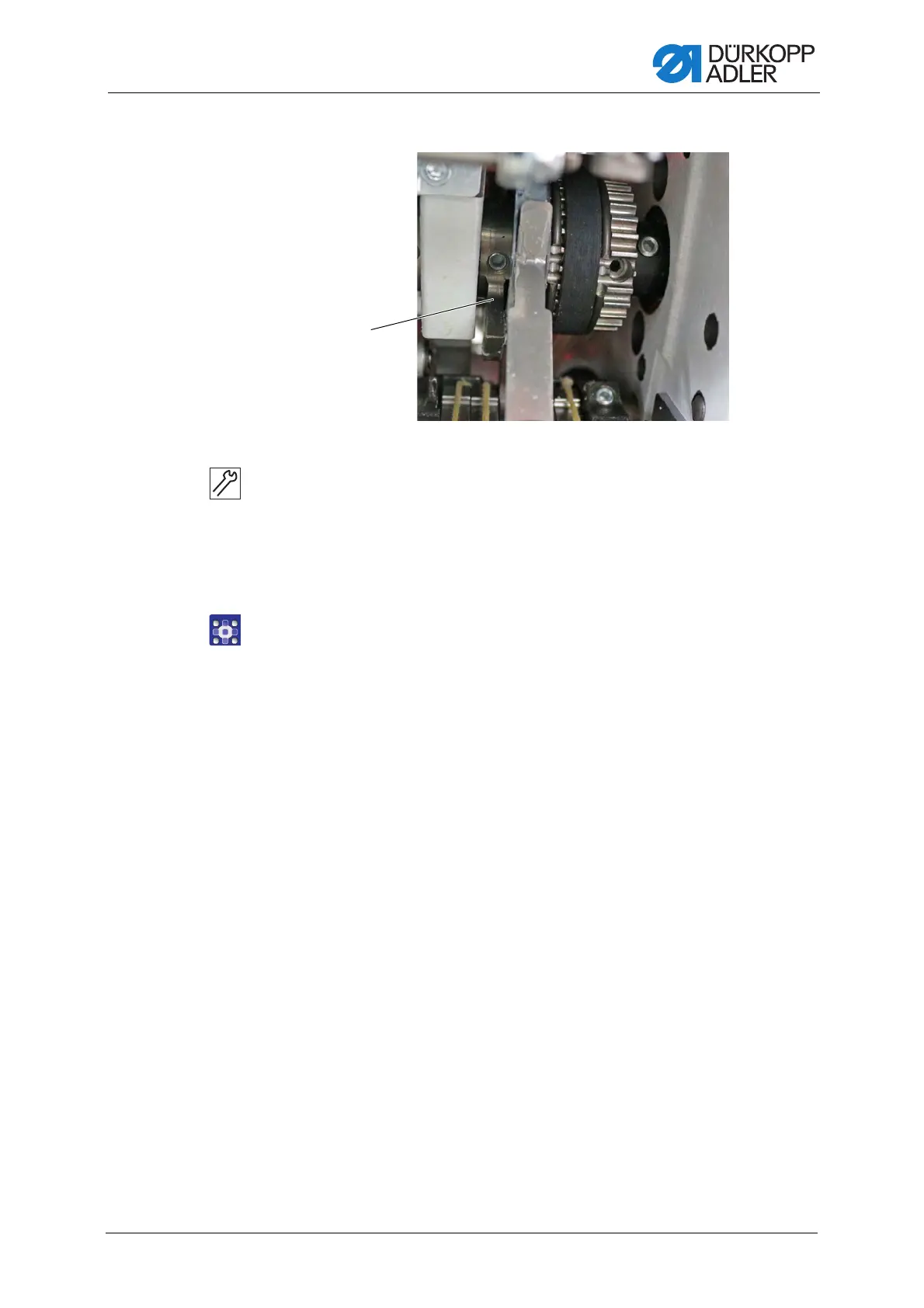

Fig. 26: Setting the feed dog feed movement (2)
7. Loosen the threaded pins on the pusher eccentric (2).
8. Press the Manual bartack button (1) and observe the feed dog and
needle in the process.
9. Turn the pusher eccentric (2) so that feed dog and needle no longer
move when the Manual bartack button (1) is pressed.
10. Tighten the threaded pins on the pusher eccentric (2).
11. Finish the service routine.
(2) - Pusher eccentric
