the long tabs that cradle the rubber seal wrap around the seal (see picture at right for
example). For more details on preparing and crimping the Weather Pack pins, see
www.whiteproducts.net/faqs.shtml.
Note that you may need access to the SV-EMS-220’s +5
volt auxiliary supply for other sensor installations, so
make allowances for breaking out the connection to
other areas. Route the three wires to the location
where you would like to mount the manifold pressure
sensor.
Plug the crimped pins into the included Weatherpack
connector. Now, mount the manifold pressure sensor
in a secure fashion using the mounting holes on either
side of the sensor.
The pressure port on the manifold pressure sensor requires 1/4”
inner diameter tubing for a secure fit. You may need to use
adapters to convert down to smaller inner diameter tubing for
your specific engine. We recommend that you use pipe clamps
at every transition point, including at the sensor itself.
Oil Pressure Sensor
The oil pressure sensor may be connected to any general purpose input pin on the SV-EMS-220’s
D37, however, we recommend that it be connected to pin 6 on this connector.
The SV-EMS-220 supports several oil pressure sensor installations. The Dynon-supplied sensor
and the Rotax and Jabiru pre-installed sensors are the most common.
Kavlico Brand Dynon-Supplied Brand Oil Pressure Sensor (101693-000)
Mount the oil pressure sensor securely using an Adel clamp or other method such as using a
transducer mounting block on the firewall. Dynon does not recommend mounting the sensor
directly to the engine to minimize the chance of mechanical failure of the transducer due to
engine vibration. Unlike Dynon’s older oil pressure sensor, the Kavlico pressure sensor has a
dedicated ground wire, eliminating the need to use the sensor case as ground.
Connect the red wire to SV-EMS-220 D37 pin 18 (red/white). This connection may be shared
with other sensors, depending on your installation.
Connect the green wire to SV-EMS-220 D37 general purpose input of your choosing (nominally
pin 6)
Connect the black wire to Ground. Any the black ground wires on the SV-EMS-220 D37 harness
are suitable for this purpose.

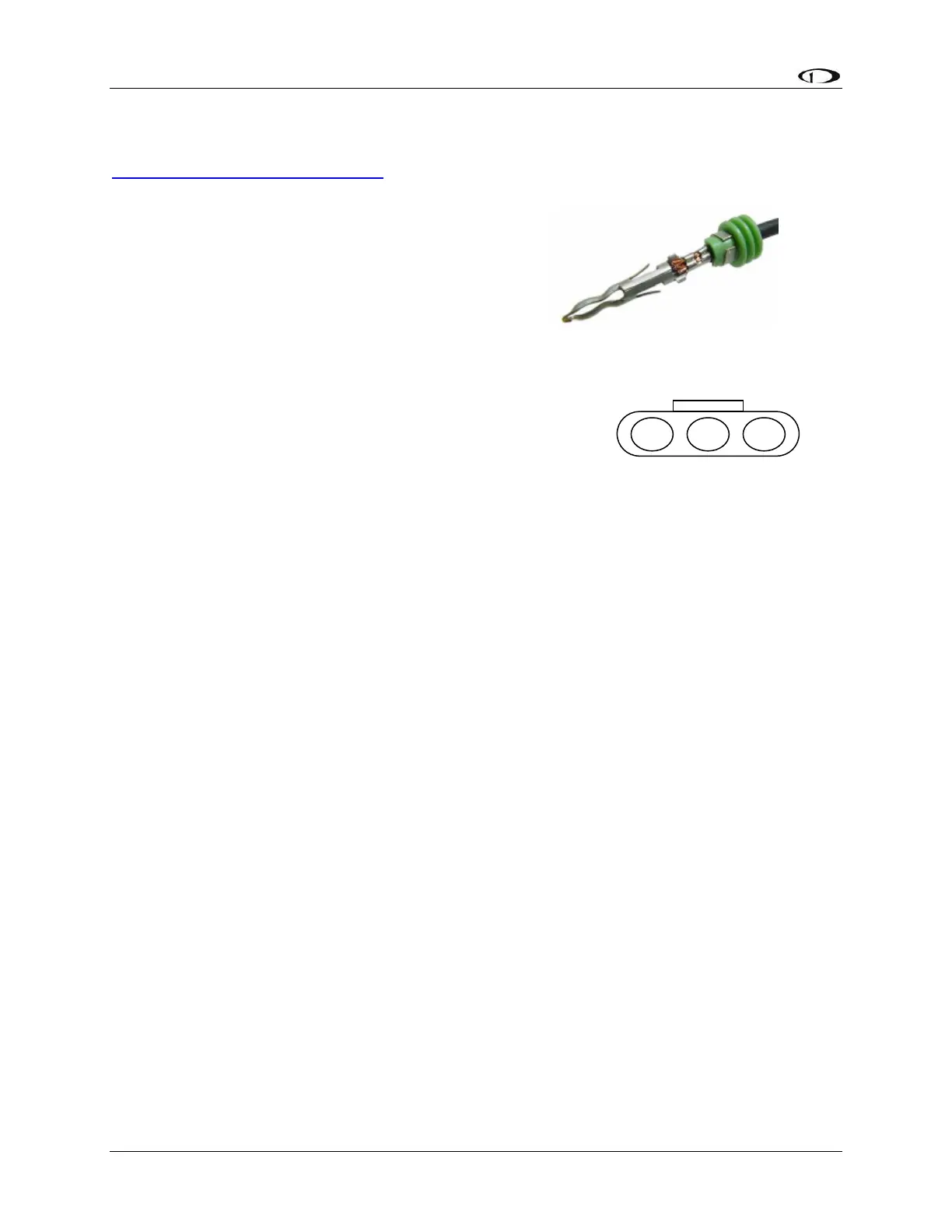

Figure 29–Detail view of properly
crimped pin.
Figure 30–Pin insertion
(rear) view of supplied
connector.
