` Appendix C: Wiring and Electrical Connections
SkyView System Installation Guide - Revision K 17-7
SkyView D37 Block Diagram

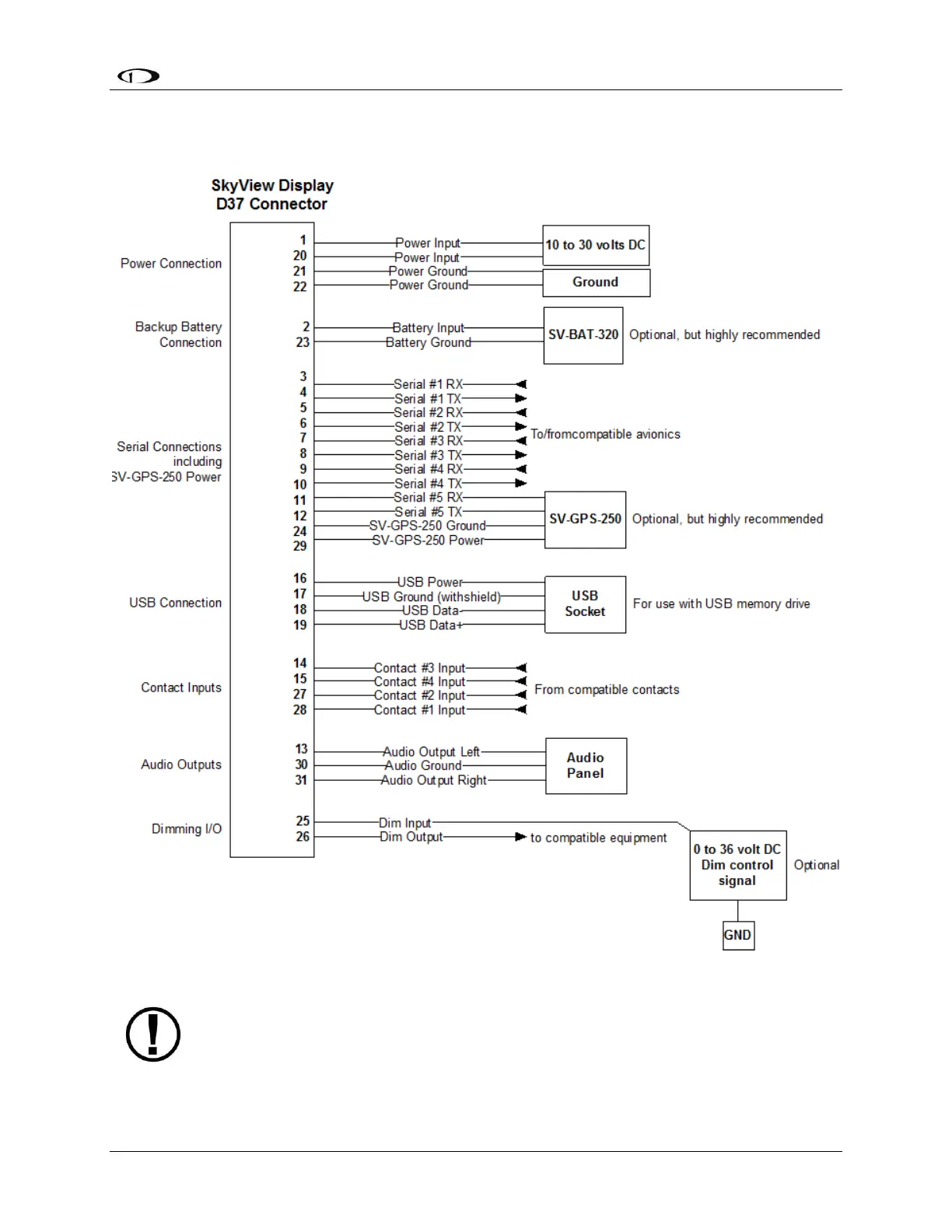

Figure 89 illustrates basic SkyView display D37 electrical connections.
Figure 89–SkyView D37 Connector Electrical Connections
The current release of SkyView does not support discrete inputs. These features
will be available through a future firmware update.
