Dynon Avionics SkyView - EMS-220 Pin-Out

` Appendix C: Wiring and Electrical Connections
SkyView System Installation Guide - Revision K 17-9
1 2 3
4 5
6 7 8
9
Blue
Red
White/Green
White/Red
Green Black White/Black
White/Blue Orange
Data 1 A Ground 1 Ground 2
Data 2 B EMS Aux
Data 1 B
Power 1
Data 2 A
Power 2

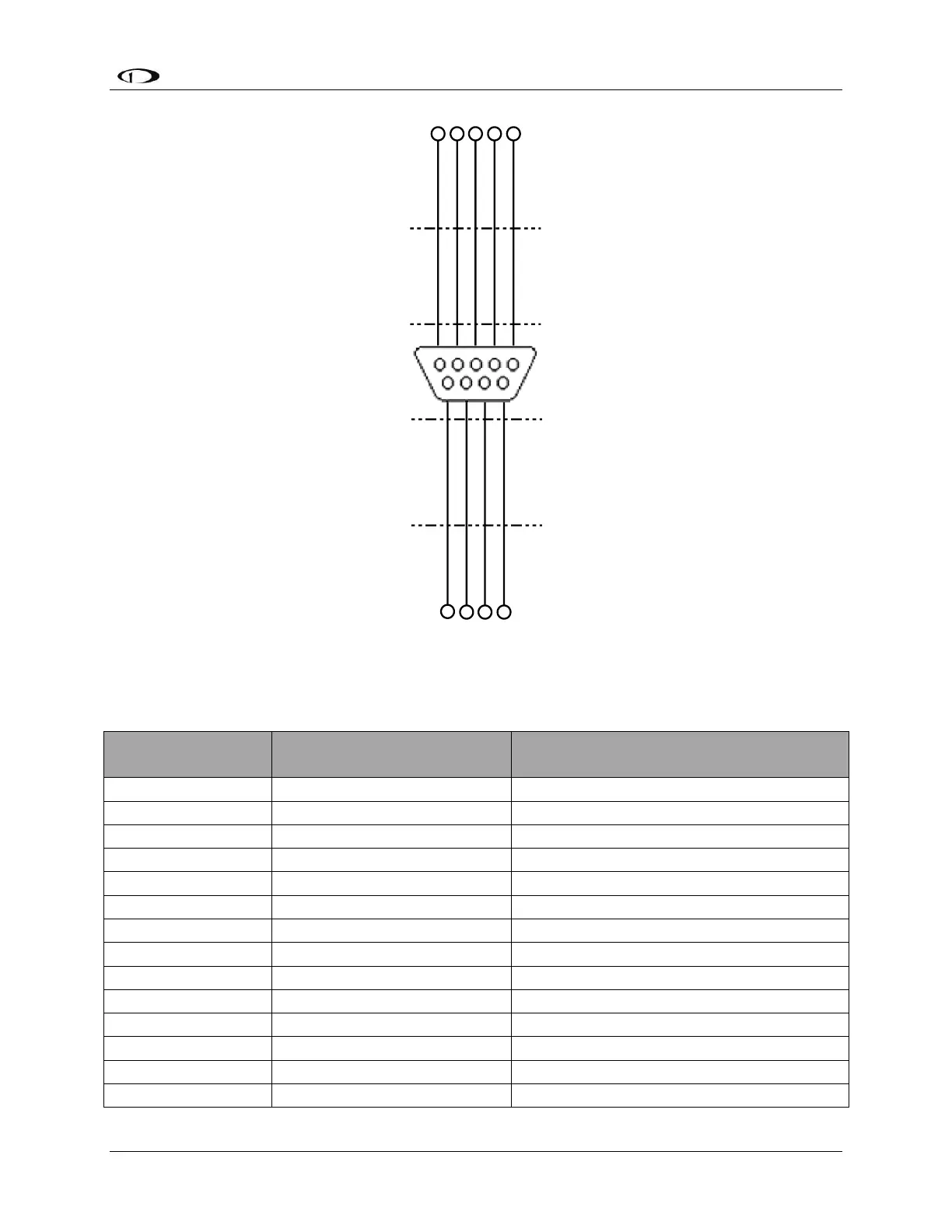

Figure 90–SkyView Network Female D9 Pin Insertion View (Rear)
SV-EMS-220 Pin-Out
SV-EMS-220 Male
D37 Pin
EMS 37-pin Harness Wire
Color
Description
1
Red
Voltmeter 1 (0 to 30 volts DC)
2
Yellow or Unwired
Voltmeter 2 (0 to 30 volts DC)
3
Black
Signal Ground
4
Purple/Blue
General Purpose Input 1
5
Black
Signal Ground
6
White/Yellow
General Purpose Input 11
7
White/Brown
General Purpose Input 12
8
Brown
Enhanced General Purpose Input 4
9
Brown/Blue
General Purpose Input 5
10
Brown/Yellow
General Purpose Input 6
11
Orange
General Purpose Input 7
12
Yellow
General Purpose Input 8
13
Black
Signal Ground
14
Yellow
Fuel Flow Input 1
