SkyView System Installation Guide - Revision K 12-1
12. SV-ARINC-429 Installation and Configuration
SkyView can connect to advanced GPS/NAV devices like the Garmin GNS 430/530 and similar
Via the SV-ARINC-429 module.
Read and understand the System Planning Chapter before installing the SV-ARINC-
429.

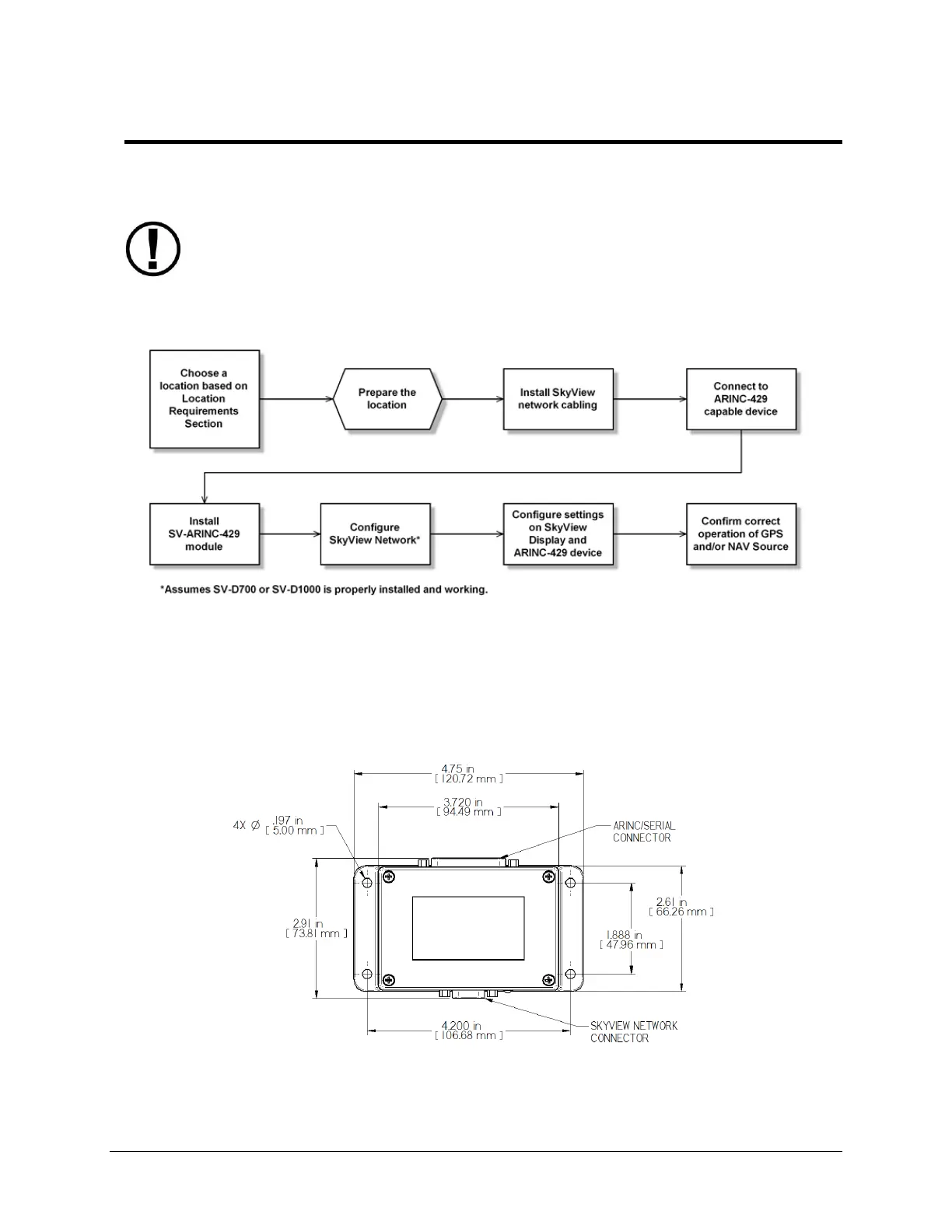

Figure 71 is a high-level overview of a suggested and installation and configuration procedure
for the SV-ARINC-429.
Figure 71 – Suggested SV-ARINC-429 Installation and Configuration Procedure
Physical Installation
The diagram below shows the important mounting dimensions of the SV-ARINC-429 module
with electronic connections.
Figure 72 - SV-ARINC-429 Mounting Dimensions with Electrical Connections
