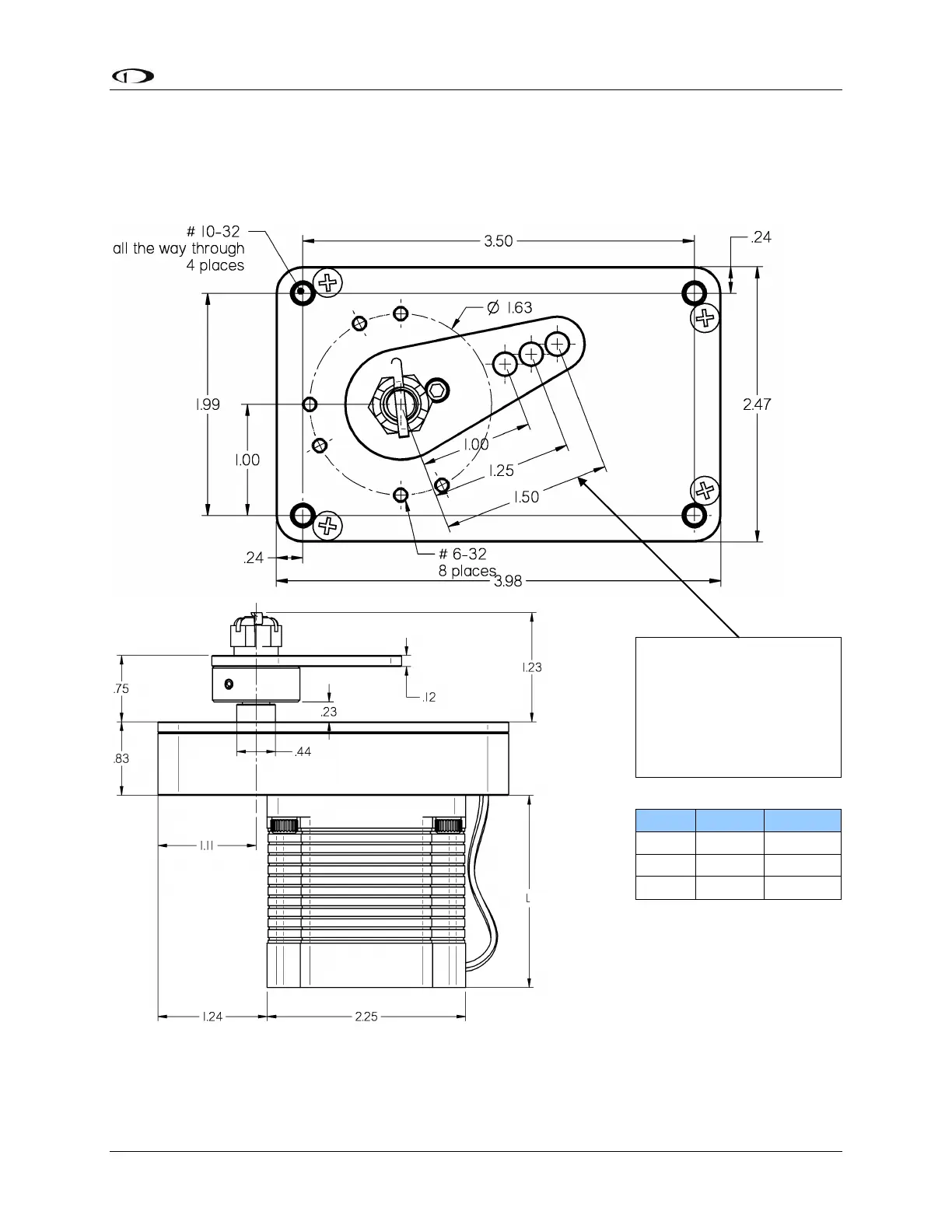

Push-Pull Servo Dimensions
Use the following dimensions (in inches) for reference when planning and implementing your
installation.
Long-arm variants
(not needed in most
installations) have
linkage mount holes
at 1.5”, 1.75”, and
2.0”
L
Weight
SV32
2.17”
2 lb
SV42
3.10”
3 lb
SV52
4.02”
4 lb
