Autopilot Servo Installation, Configuration, and Calibration
10-8 SkyView System Installation Guide - Revision K

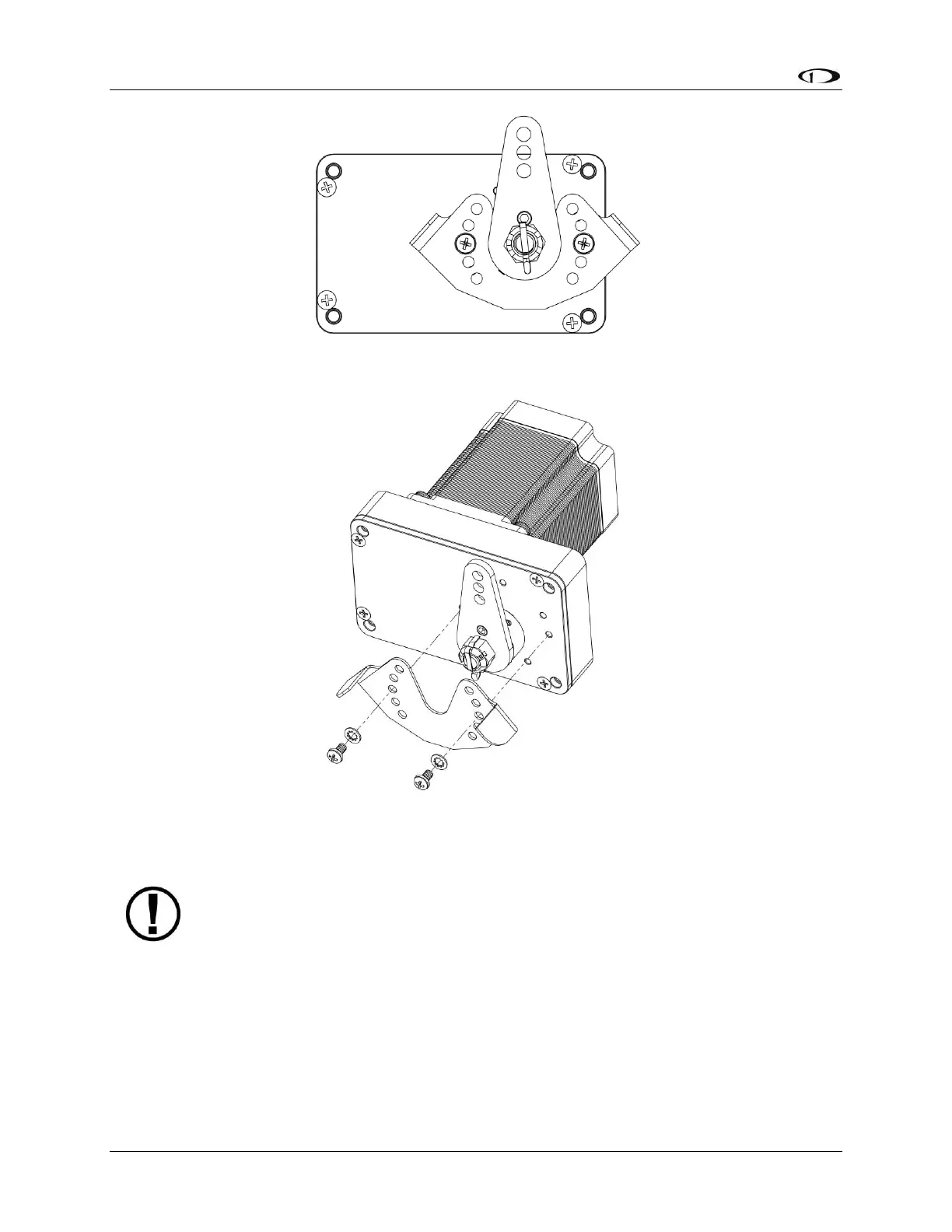

Figure 53 - Servo Range of Motion Limiting Bracket, Front
Figure 54 - Servo Range of Motion Limiting Bracket - Isometric
The bushings other mechanical components in Dynon Avionics Autopilot servos
are self-lubricating and should not be additionally lubricated.
