Dynon Avionics SkyView - Page 93

SV-EMS-220 Installation and Configuration
SkyView System Installation Guide - Revision K 7-7
Pin
EMS 37-pin
Harness Wire Color
Function
Sensor Config
34
Blue
Low Voltage RPM Input Left
Do not connect to magneto
35
Green
Low Voltage RPM Input Right
Do not connect to magneto
36
Blue or Unwired
General Purpose TC Input 2+
Thermocouple
37
Green or Unwired
General Purpose TC Input 2-
Thermocouple
Table 15–SV-EMS-220 Male D37 Pin-to-Sensor Compatibility

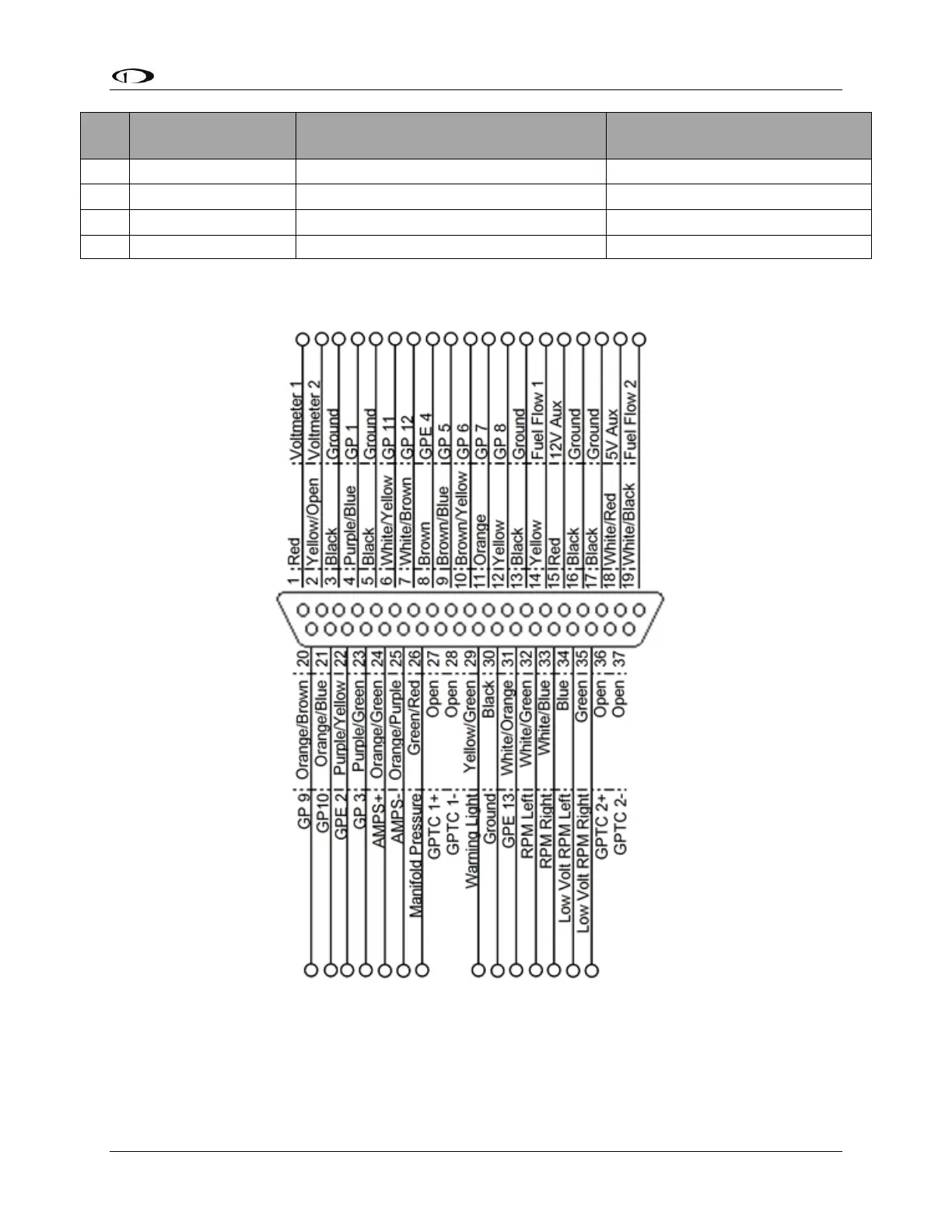

Figure 25– EMS 37-pin Main Sensor Harness Female D37 Pin Insertion View (Rear)
