SV-EMS-220 Installation and Configuration
SkyView System Installation Guide - Revision K 7-9

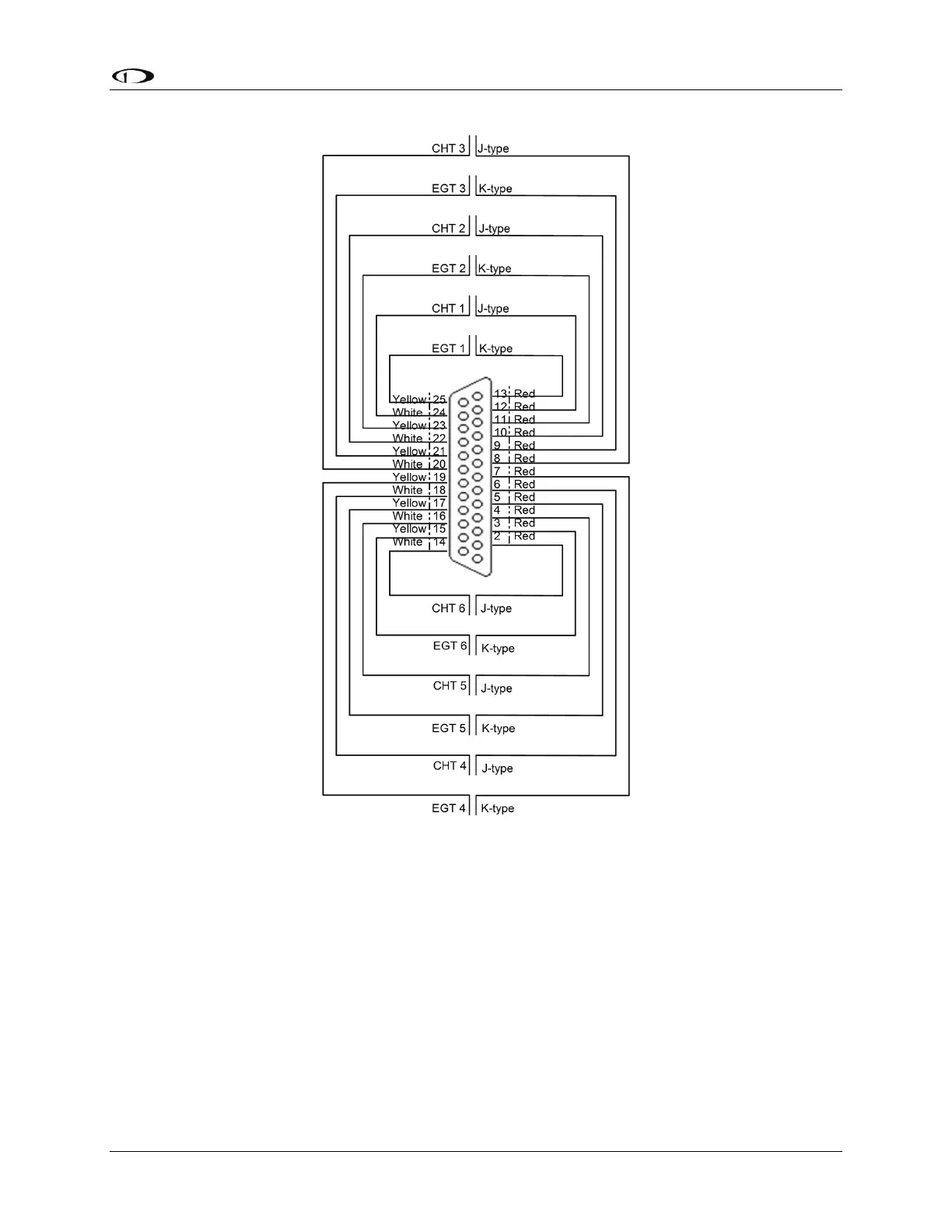

Figure 26– Thermocouple Wire Harness Male D25 Pin Insertion View (Rear)
Sensors Powered by the SV-EMS-220
Some sensors use a 5V (pin 18; white/red wire) or 12V (pin 15; red wire) power supply provided
by the SV-EMS-220 module. These wires are designed to handle a limited amount of current.
The typical Lycoming/Continental/Rotax/Jabiru installations as described in the rest of this
chapter are designed to not exceed these current limitations. However, more complex and
installations that differ significantly from these standard installations should be designed to not
exceed the following current limitations:
