F9, F9 Express Fetal & Maternal Monitor User Manual Fetal Monitoring
- 100 -
2 Select ID.

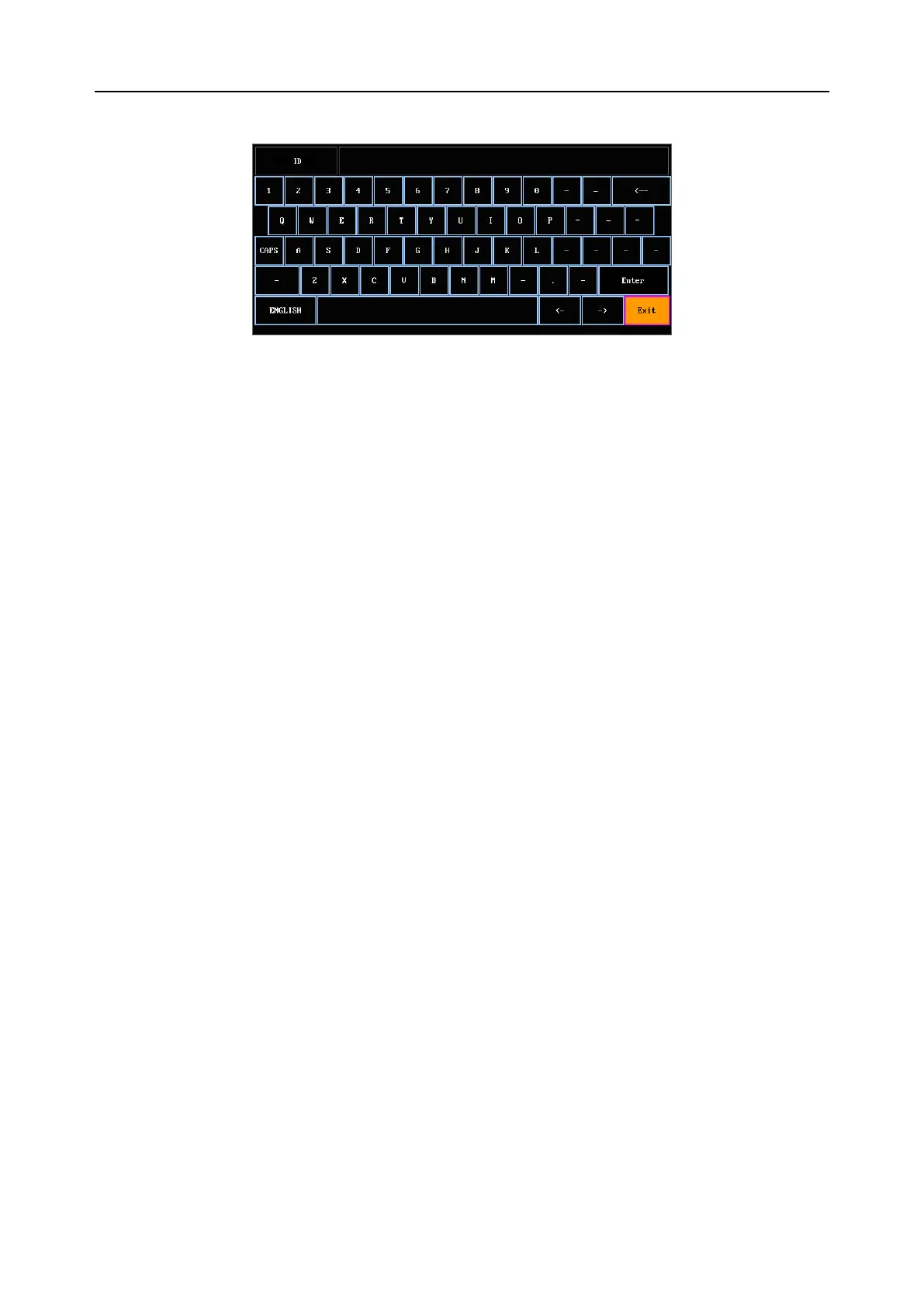

Figure 7-16 Soft Keyboard
3 Select the required character for patient‟s ID on the soft keyboard.
4 Select Enter.
5 Select Name.
6 Select the required letter for patient‟s name on the soft keyboard.
7 Select Enter.
8 Select OK.
The monitoring does not stop when you change maternal information. After you select OK to exit,
the new ID takes the place of the old one for this patient.
NOTE:
1 Pressing the START key separates two patients. The monitor only displays the most
recent ID for the same patient.
2 If printing starts automatically with the monitoring, the first ID printed on the recorder
paper will be the auto-ID. The new ID will be printed 10 minutes/20 minutes/30
minutes/ 60 minutes(optional) later.
3 The ID and name are shown on the screen, the paper printout and the archive list.
4 For the non-English system, more letters are provided for inputting the name. Select
the key on the bottom left corner to toggle between them.
5 When the network version is ETHERNET 1.4, if ID is revised on either the fetal
monitor or the central station after confirmation, they will synchronize ID with each
other.
7.9.3 Switching Mat. Info Inputting On or Off
The Mat. Info inputting function allows the menu to pop up automatically after the START key
is pressed. After you input the mother‟s information and exit from the menu, the monitoring starts
immediately.
To switch the Mat. Info Inputting on or off:
To Next Page
