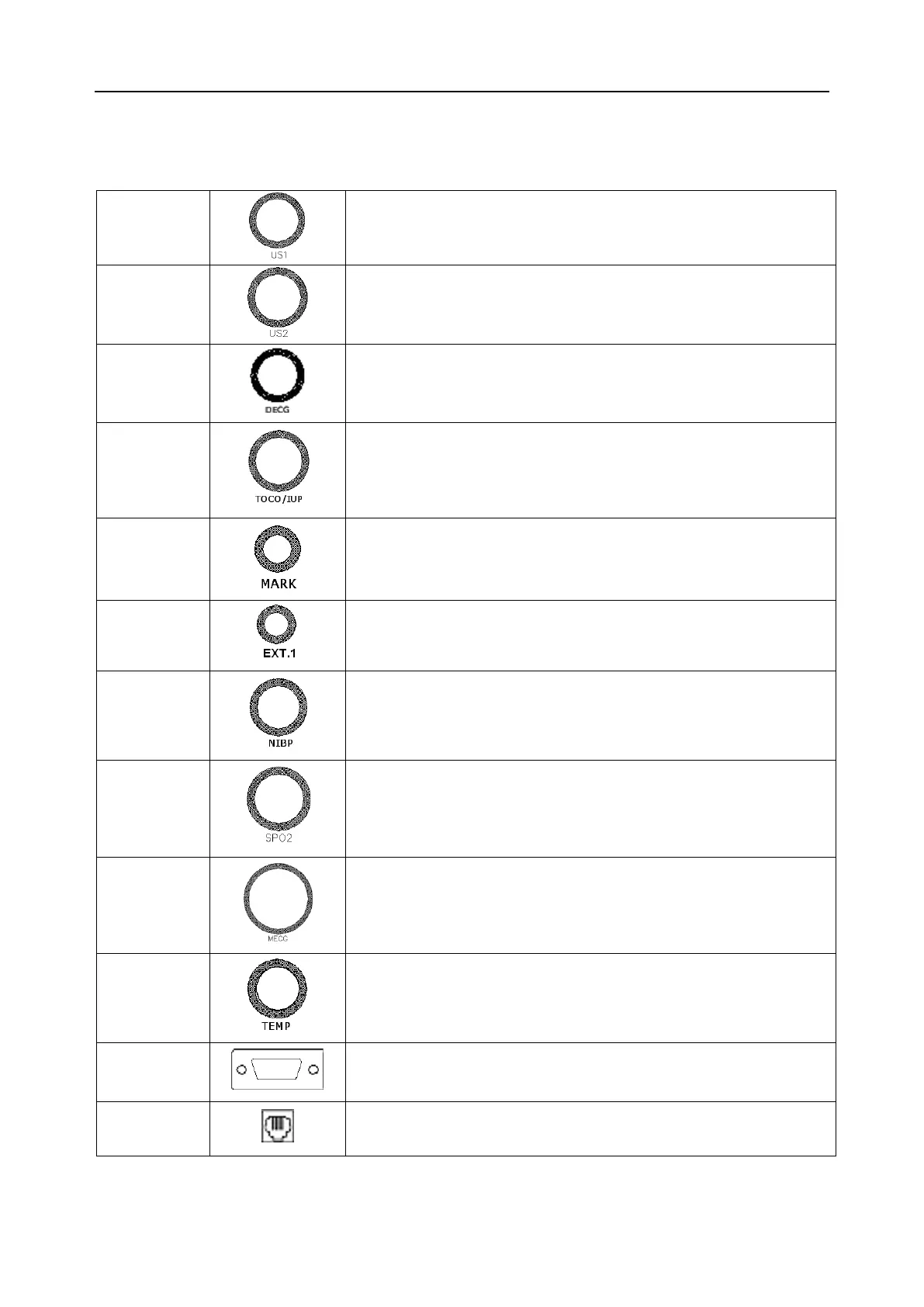

1.6 Definitions and Symbols
F9, F9 Express Fetal & Maternal Monitor
1
Socket for ultrasound transducer 1 ( Type BF applied part)
2
Socket for ultrasound transducer 2 ( Type BF applied part)
3
Socket for DECG cable ( Type CF applied part)
4
Socket for TOCO transducer or IUP cable (Type BF applied
part)
5
Socket for Remote Event Marker ( Type BF applied part)
6
Socket for Fetal Stimulator ( Type BF applied part)
7
Socket for NIBP Cuff ( Type BF applied part)
8
Socket for SpO
2
Transducer ( Type BF applied part)
9
Socket for Maternal ECG Cable ( Type CF applied part)
10
Socket for TEMP Transducer ( Type CF applied part)
11
RS232 Interface (DB9 or D-Sub)
12
RJ45 Interface
