F9, F9 Express Fetal & Maternal Monitor User Manual Signal Input/Output Connector
- 170 -

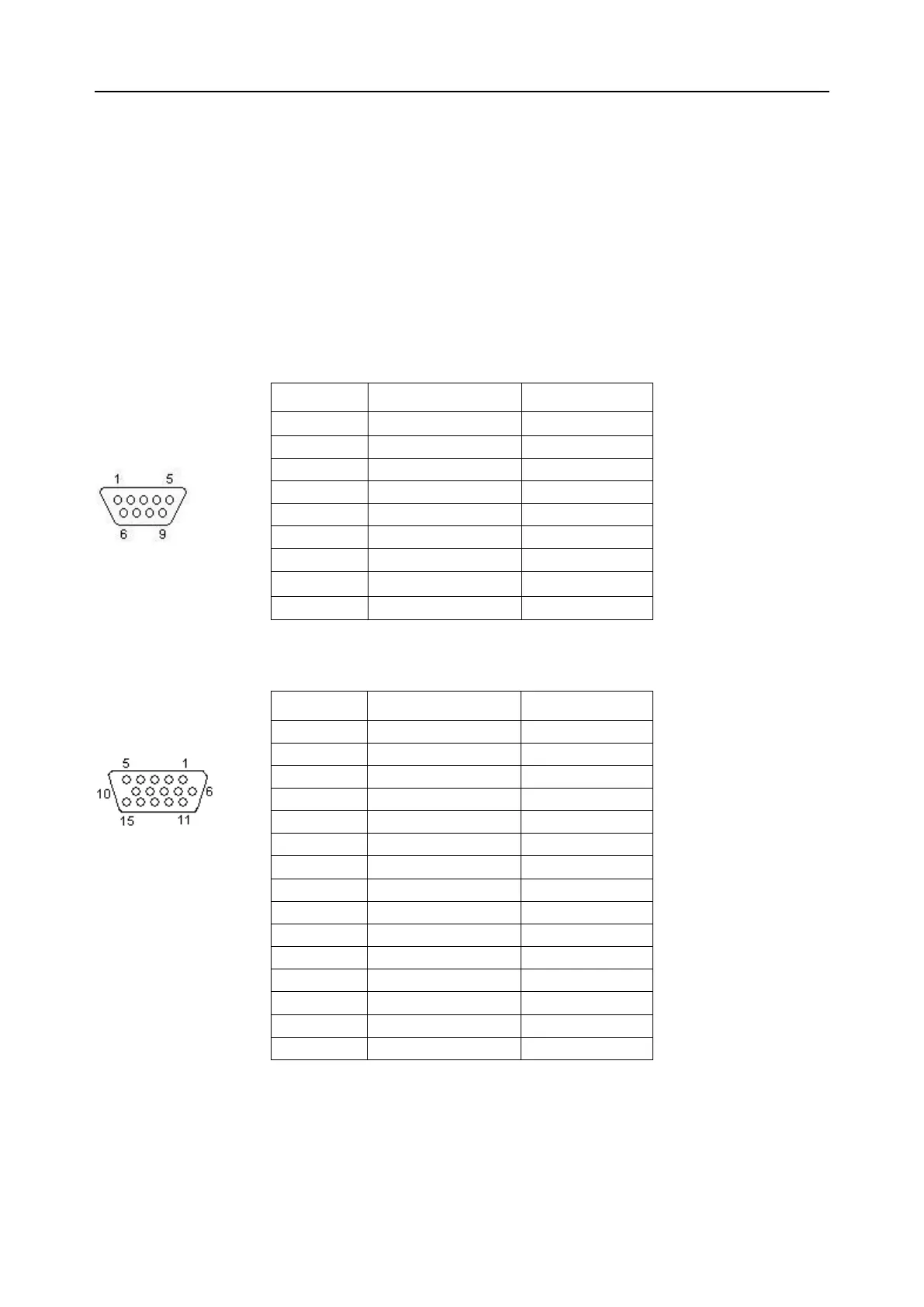

Appendix 2 Signal Input/ Output Connector
Accessory equipment connected to these interfaces must be certified according to the respective
IEC/EN standards (e.g. IEC/EN 60950 for data processing equipment and IEC/EN 60601-1 for
medical equipment). Furthermore all configurations shall comply with the valid version of the
system standard IEC/EN 60601-1. Anybody who connects additional equipment to the signal
input connector or signal output connector to configure a medical system must ensure that the
system complies with the requirements of the valid version of the system standard IEC/EN
60601-1. If in doubt, contact our technical service department or your local distributor.
DB9 Interface
D-Sub Interface
Pin
Signal
Input/Output
1
+5V
Output
2
Rx
Input
3
Tx
Output
4
485EN
Input
5
0V Ref.
6
TA
Output
7
TB
Output
8
RA
Input
9
RB
Input
Pin
Signal
Input/Output
1
US2
Input
2
ISOCNS_RXD
Input
3
ISOCNS_TXD
Output
4
485EN
Input
5
0V Ref.
6
TA
Output
7
TB
Output
8
RA
Input
9
RB
Input
10
DECG_SIGNAL
Input
11
US1
Input
12
+5V
Output
13
TOCO
Input
14
DECG_GND
15
EN
Input
