F9, F9 Express Fetal & Maternal Monitor User Manual Introducing the Monitor
- 23 -

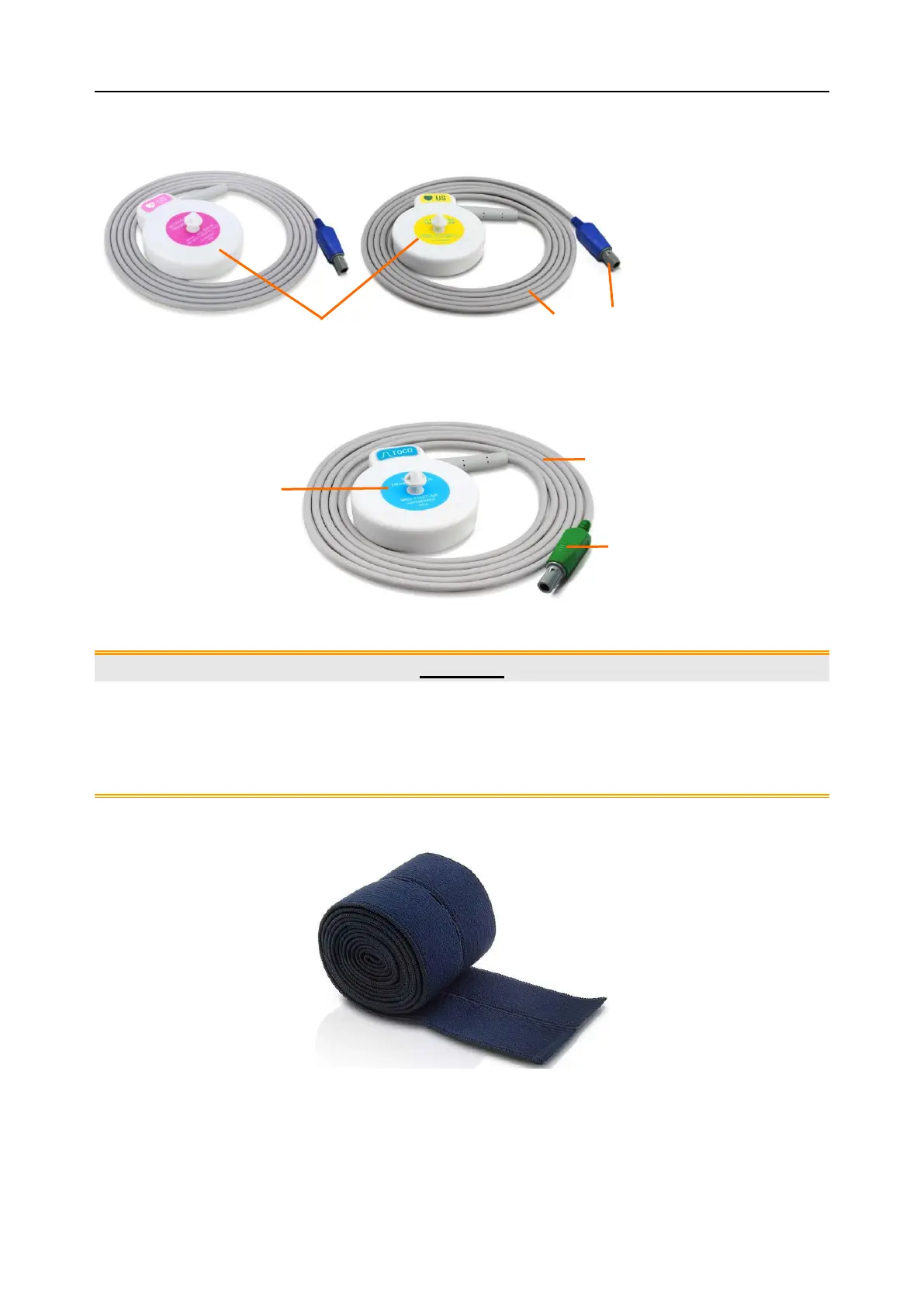

2.3.1 Ultrasound (US) Transducers
Figure 2-7 US Transducers
2.3.2 TOCO Transducers
Figure 2-8 TOCO Transducers
CAUTION
Degree of protection against harmful ingress of water of the US transducer and TOCO
transducer is IPX8. They can be continuously immersed in water to a depth of 1.1 meter
for 24 hours and remain safe, but they are not allowed to be immersed in organic solvent,
such as ethanol.
2.3.3 Belt
Figure 2-9 Belt
1
2 3
1 US Transducer Sensor
(Purple, yellow labeled)
2 Transducer Cable
3 Transducer Connector
3
1
2
1 TOCOS Transducer Sensor
(Blue Labeled)
2 Transducer Cable
3 Transducer Connector
