F9, F9 Express Fetal & Maternal Monitor User Manual Introducing the Monitor
- 18 -
monitor shuts down and resumes the previous settings at the subsequent operation.
2.2 Overview
NOTE:
The pictures and interfaces in this manual are for reference only.

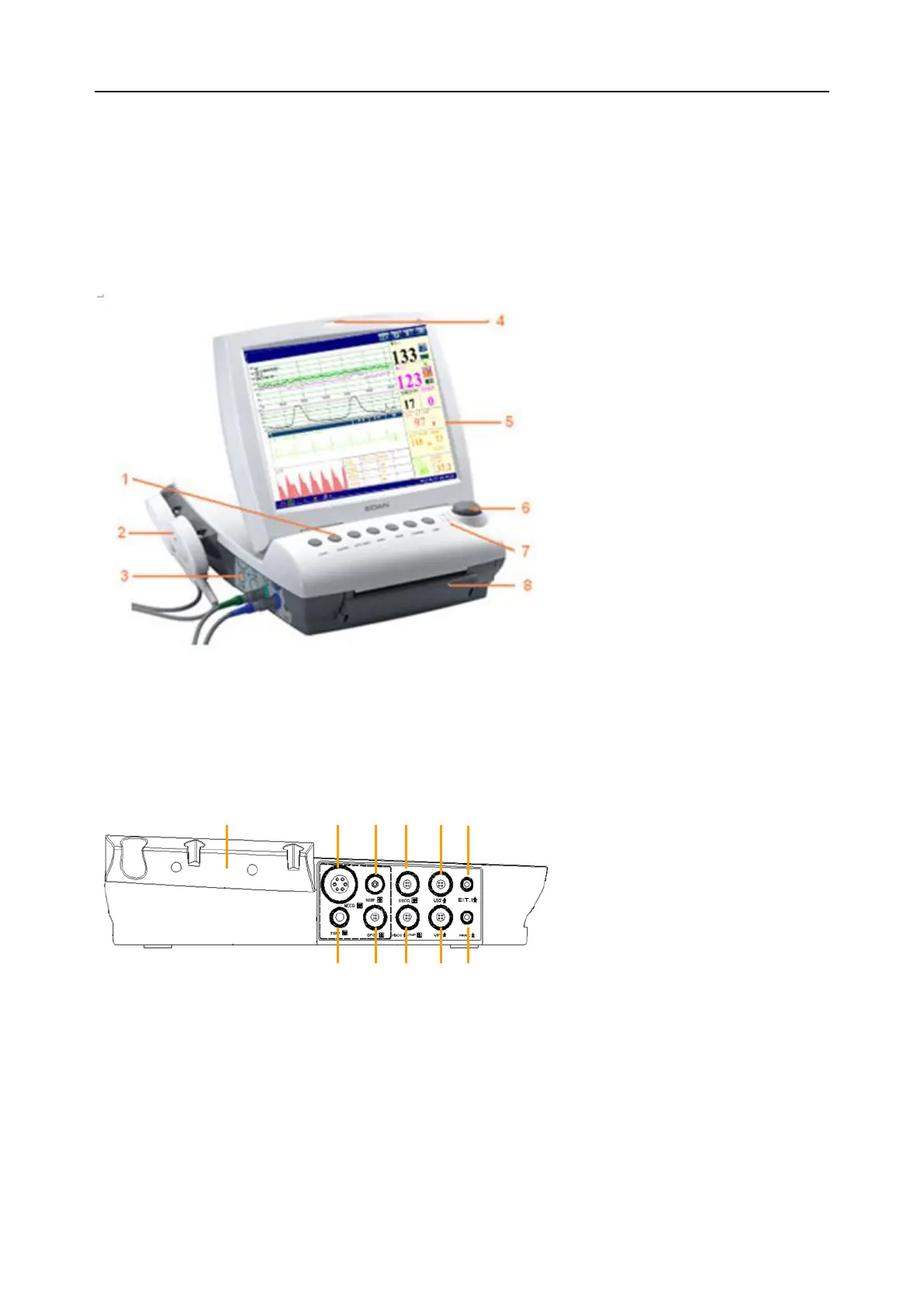

Figure 2-1 Appearance
Figure 2-2 Left Panel
1 Keys
2 Transducer
3 Sockets
4 Alarm Indicator
5 Display Screen
6 Control Knob
7 Charge, AC, Power Indicator
8 Paper Drawer
9
10 11 12 13 14
19 18 17 16 15
9 Accessory Holder
10 MECG Socket
11 NIBP Socket
12 DECG Socket
13 US2 Socket
14 EXT.1 Socket
15 MARK Socket
16 US1 Socket
17 TOCO Socket
18 SpO2 Socket
19 TEMP Socket
