F9, F9 Express Fetal & Maternal Monitor User Manual Fetal Monitoring Display
- 113 -

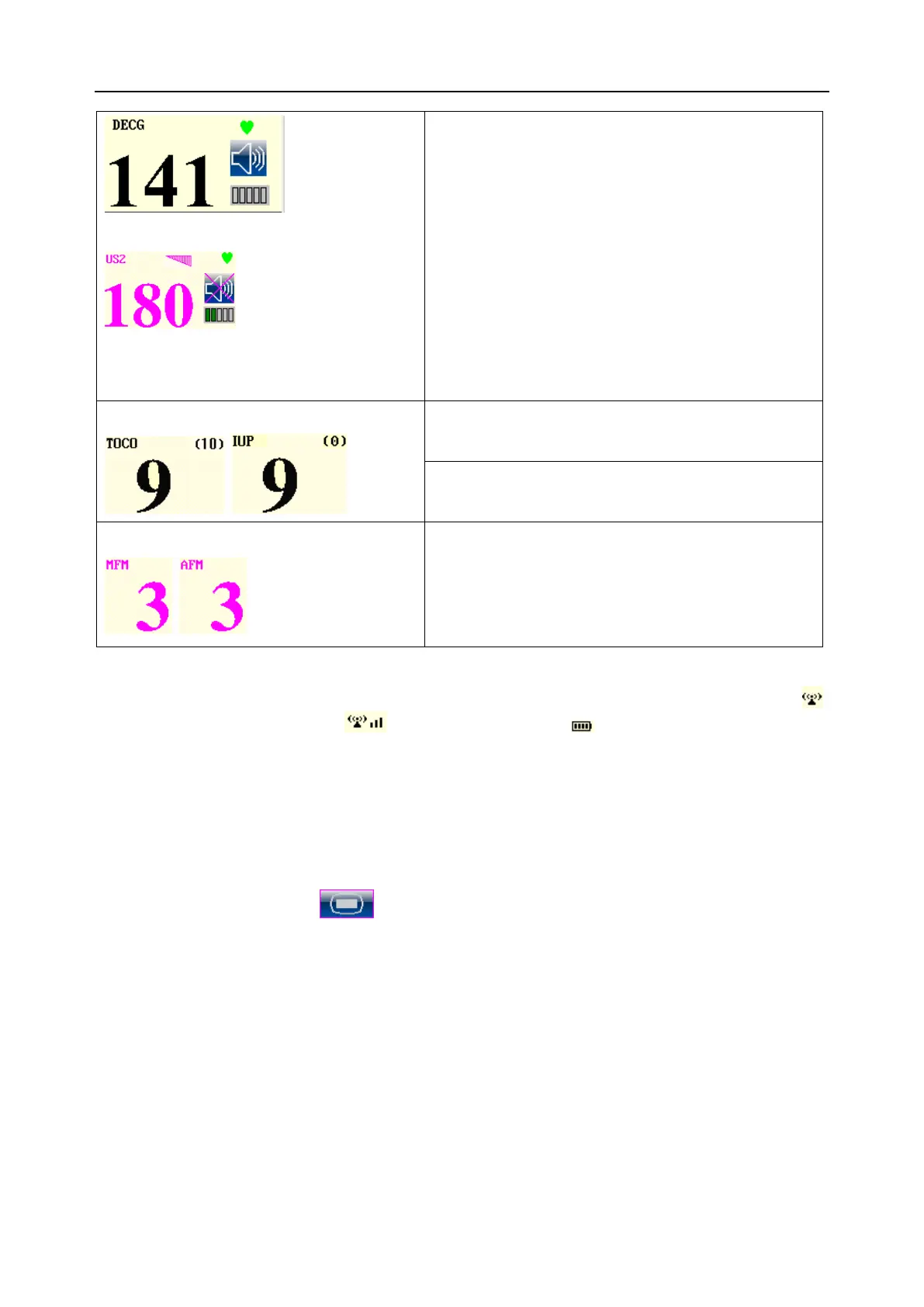

141: FHR1/DFHR measurement numeric.
If the US1 socket is not connected with a US
transducer and DECG socket is not connected with
a DECG cable, nothing displays here; if the
transducer/cable is connected but no monitoring is
going on, it displays ---.
180: FHR2 measurement numeric.
If the US2 socket is not connected with a US
transducer when switching on, it displays OFF but
no numeric here; if the transducer is connected but
no monitoring is going on, it displays ---.
9: current UA measurement numeric
MFM/AFM: FM source
3: FM count
When F9 Fetal Monitor is connected to FTS-3 Telemetry System, the signal strength icon ,
signal strength and quality icon , and battery level icon of the US-T transducers and
TOCO-T transducer or TOCO-E transducer are displayed in the numeric window.
8.3.1 Changing Numeric Window Position (F9)
Especially for F9, the numeric window can be located either on the right of the traces or on top of
them. To change its position,
1 Select the setup key on the main interface.
2 Select General > Numeric Window.
3 Select Top or Right (default).
4 Select OK.
