F9, F9 Express Fetal & Maternal Monitor User Manual Introducing the Monitor
- 24 -
2.3.4 Remote Event Marker

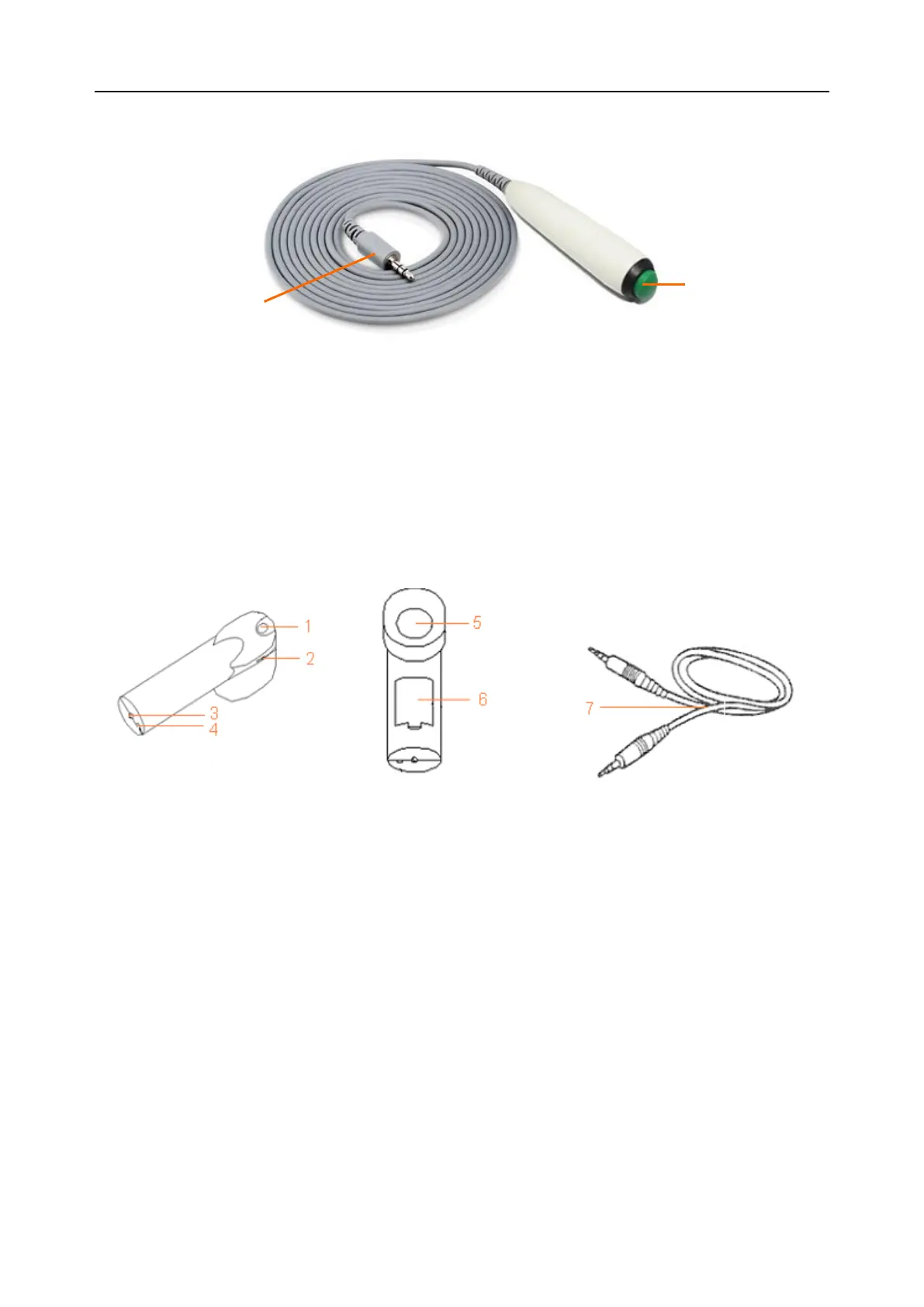

Figure 2-10 Remote Event Marker
2.3.5 Fetal Stimulator
FS-1 Fetal Stimulator is a hand-held device. In order to reduce the time required for the NST
when the fetus is asleep, it can be used to give a mild vibrating stimulation to the fetus through
the maternal abdomen.
During NST, the vibrating operation marks can be displayed /printed on CTG trace when the fetal
stimulator is connected to the monitor by an audio cable.
Figure 2-11 Fetal Stimulator
1
Operating Switch
2
Vibration Rhythm Adjusting Wheel
3
Marker Socket
4
Mode Selecting Switch
5
Vibrating Head
6
Battery Compartment
7
Audio Cable
NOTE:
The fetal stimulator is NOT available in the USA.
1
2
1 Marker Plug
2 Press Key
