Displaying the Address Table
10-3
10
Web – Click Address Table, Dynamic Addresses. Specify the search type (i.e., mark
the Interface, MAC Address, or VLAN checkbox), select the method of sorting the
displayed addresses, and then click Query.

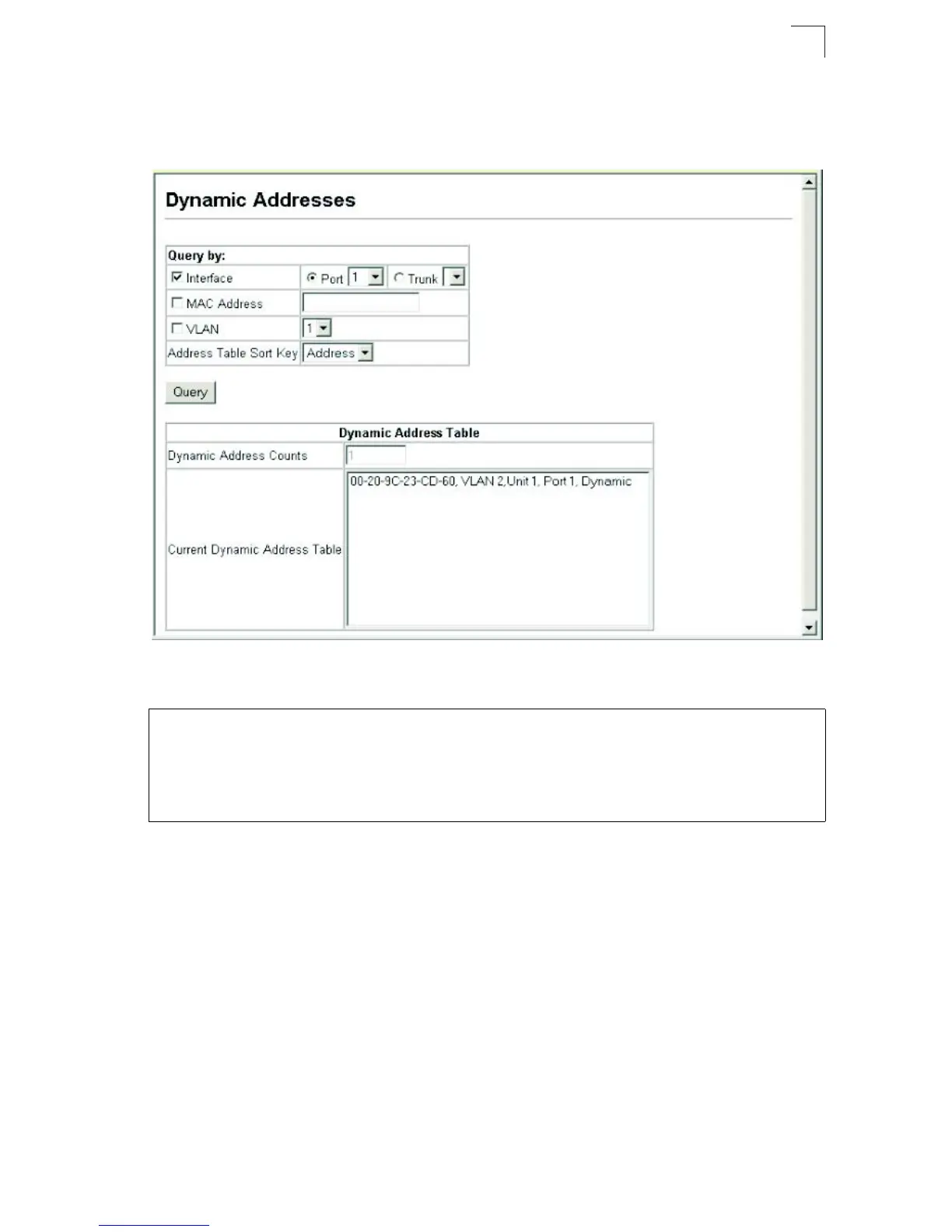

Figure 10-2 Dynamic Addresses
CLI – This example also displays the address table entries for port 1.
Console#show mac-address-table interface ethernet 1/1 28-3
Interface Mac Address Vlan Type
--------- ----------------- ---- -----------------
Eth 1/ 1 00-E0-29-94-34-DE 1 Permanent
Eth 1/ 1 00-20-9C-23-CD-60 2 Learned
Console#
