Address Table Settings

10-4

Changing the Aging Time

You can set the aging time for entries in the dynamic address table.

Command Attributes

• Aging Status – Enables/disables the aging function.

• Aging Time – The time after which a learned entry is discarded.

(Range: 10-1000000 seconds; Default: 300 seconds)

Web – Click Address Table, Address Aging. Specify the new aging time, click Apply.

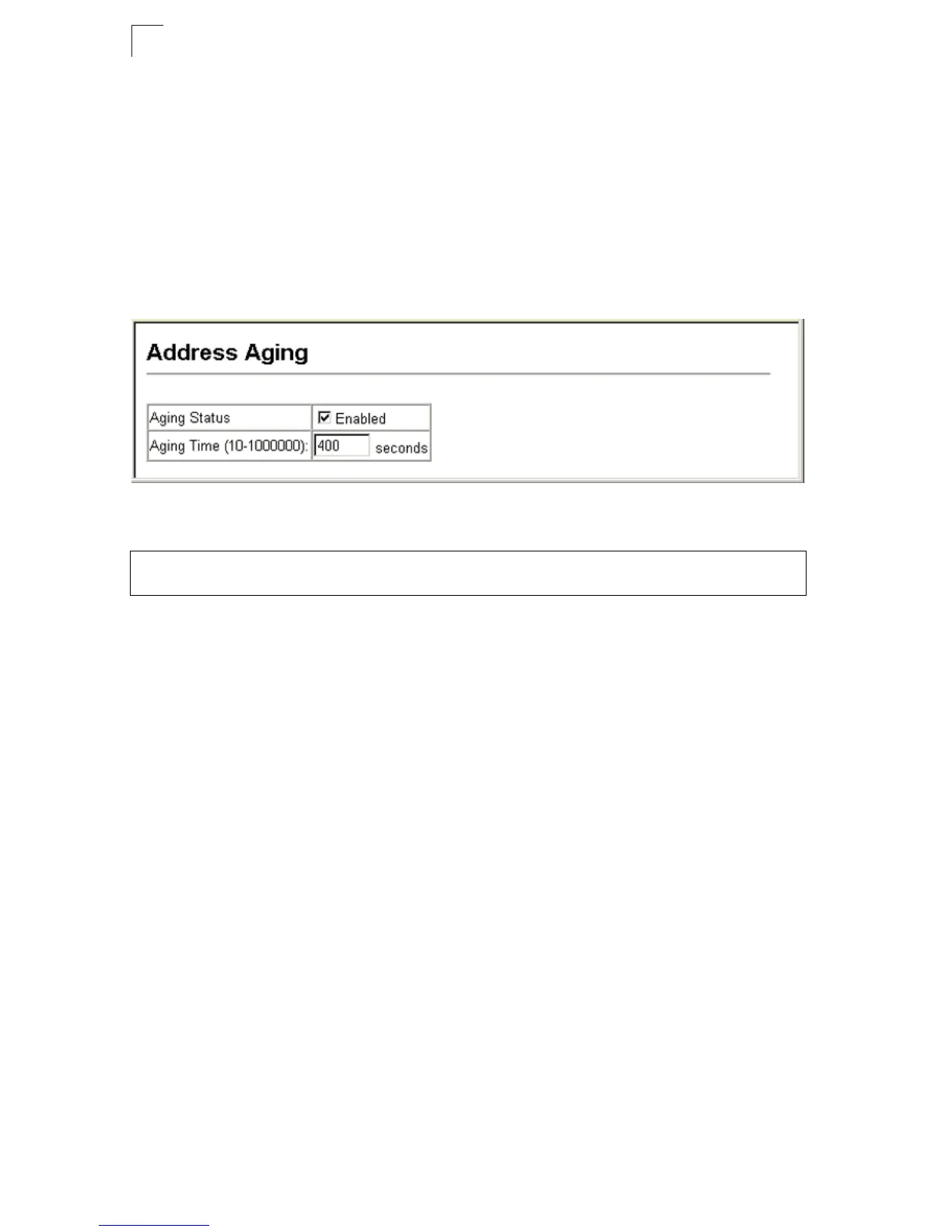

Figure 10-3 Address Aging

CLI – This example sets the aging time to 400 seconds.

Console(config)#mac-address-table aging-time 400 28-4

Console(config)#
