• Max Request – Sets the maximum number of times the switch port will retransmit
an EAP request packet to the client before it times out the authentication session.
(Range: 1-10; Default 2)
• Quiet Period – Sets the time that a switch port waits after the Max Request count
has been exceeded before attempting to acquire a new client. (Range: 1-65535
seconds; Default: 60 seconds)
• Re-authentication Period – Sets the time period after which a connected client
must be re-authenticated. (Range: 1-65535 seconds; Default: 3600 seconds)
• TX Period – Sets the time period during an authentication session that the switch
waits before re-transmitting an EAP packet. (Range: 1-65535; Default: 30 seconds)
• Authorized –
- Yes – Connected client is authorized.
- No – Connected client is not authorized.
- Blank – Displays nothing when dot1x is disabled on a port.
• Supplicant – Indicates the MAC address of a connected client.
• Trunk – Indicates if the port is configured as a trunk port.
Web – Click Security, 802.1X, Port Configuration. Modify the parameters required,
and click Apply.

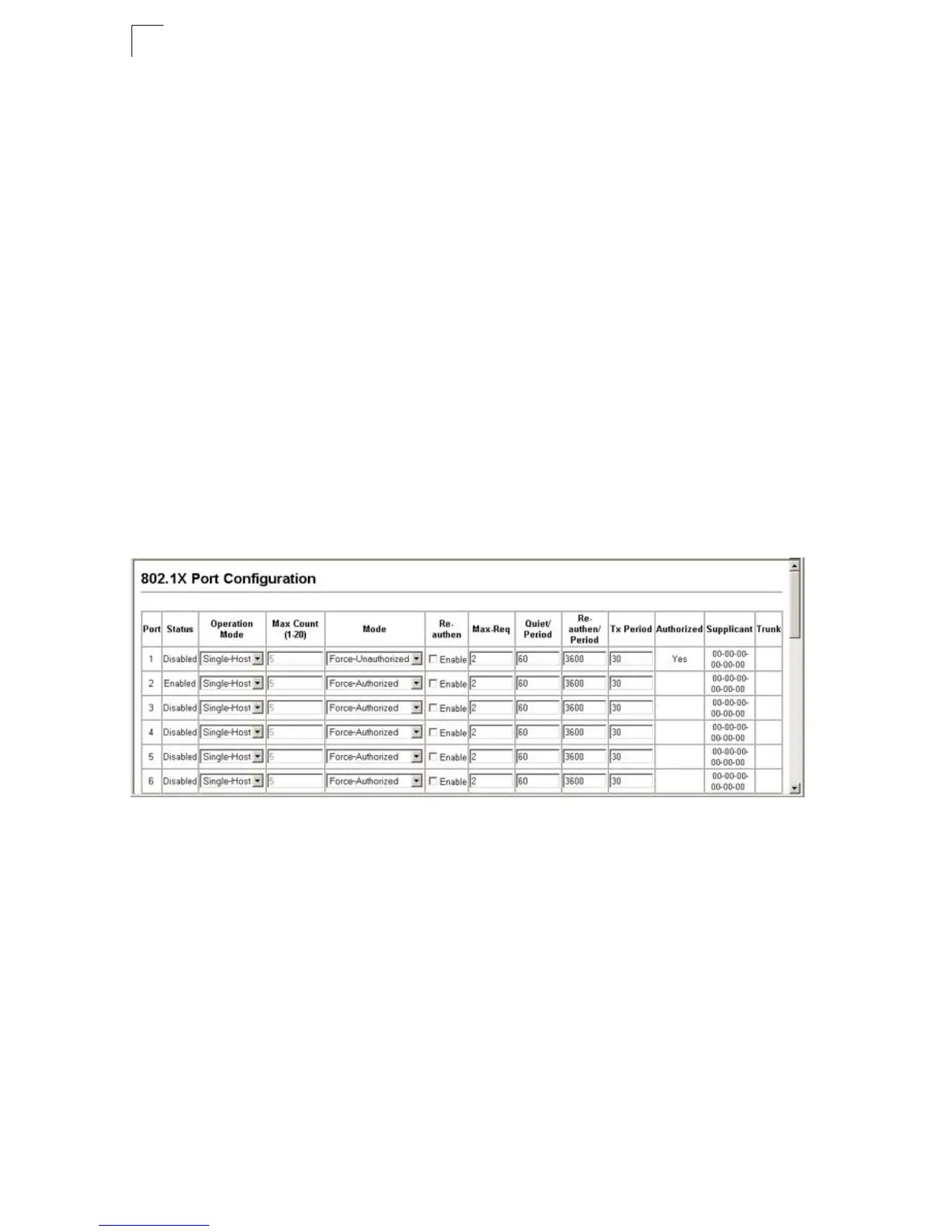

Figure 6-8 802.1X Port Configuration
