Displaying LACP Settings and Status for the Remote Side
You can display configuration settings and the operational state for the remote side
of an link aggregation.
Web – Click Port, LACP, Port Neighbors Information. Select a port channel to
display the corresponding information.

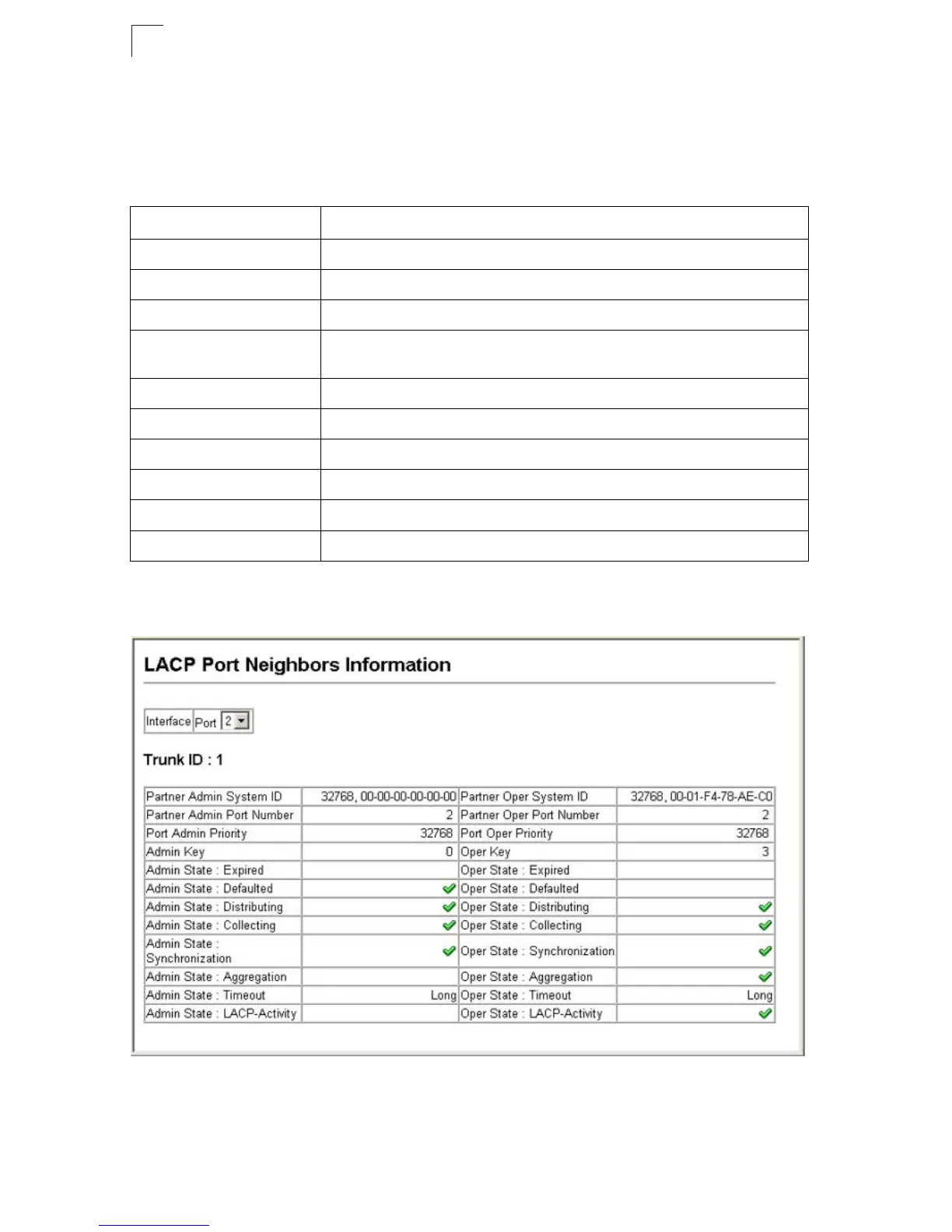

Figure 9-8 LACP - Port Neighbors Information
Table 9-3 LACP Neighbor Configuration Information
Field Description
Partner Admin System ID LAG partner’s system ID assigned by the user.
Partner Oper System ID LAG partner’s system ID assigned by the LACP protocol.
Partner Admin Port Number Current administrative value of the port number for the protocol Partner.
Partner Oper Port Number Operational port number assigned to this aggregation port by the port’s
protocol partner.
Port Admin Priority Current administrative value of the port priority for the protocol partner.
Port Oper Priority Priority value assigned to this aggregation port by the partner.
Admin Key Current administrative value of the Key for the protocol partner.
Oper Key Current operational value of the Key for the protocol partner.
Admin State Administrative values of the partner’s state parameters. (See preceding table.)
Oper State Operational values of the partner’s state parameters. (See preceding table.)
