Port Configuration

9-24

9

Web – Click Port, Port Statistics. Select the required interface, and click Query. You

can also use the Refresh button at the bottom of the page to update the screen.

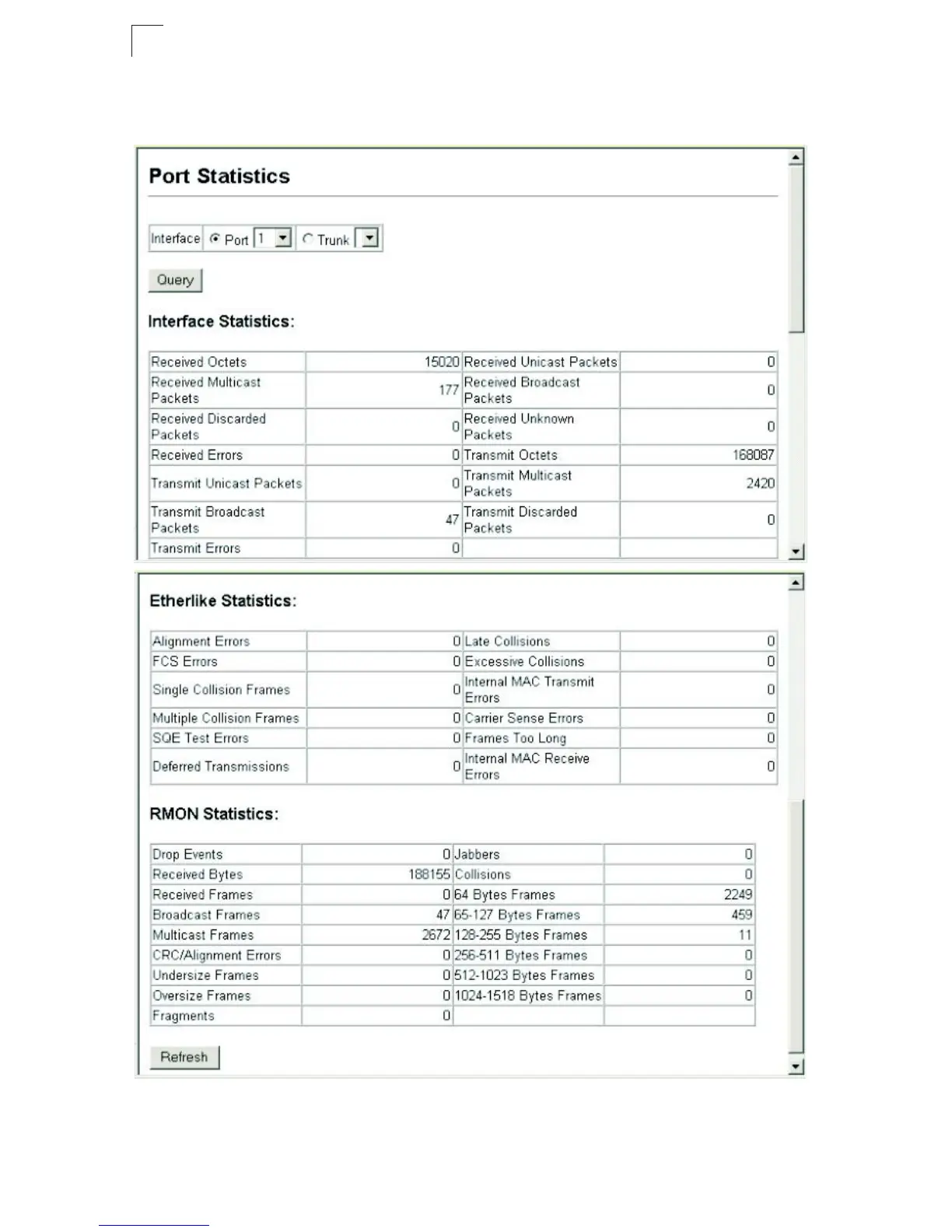

Figure 9-12 Port Statistics
